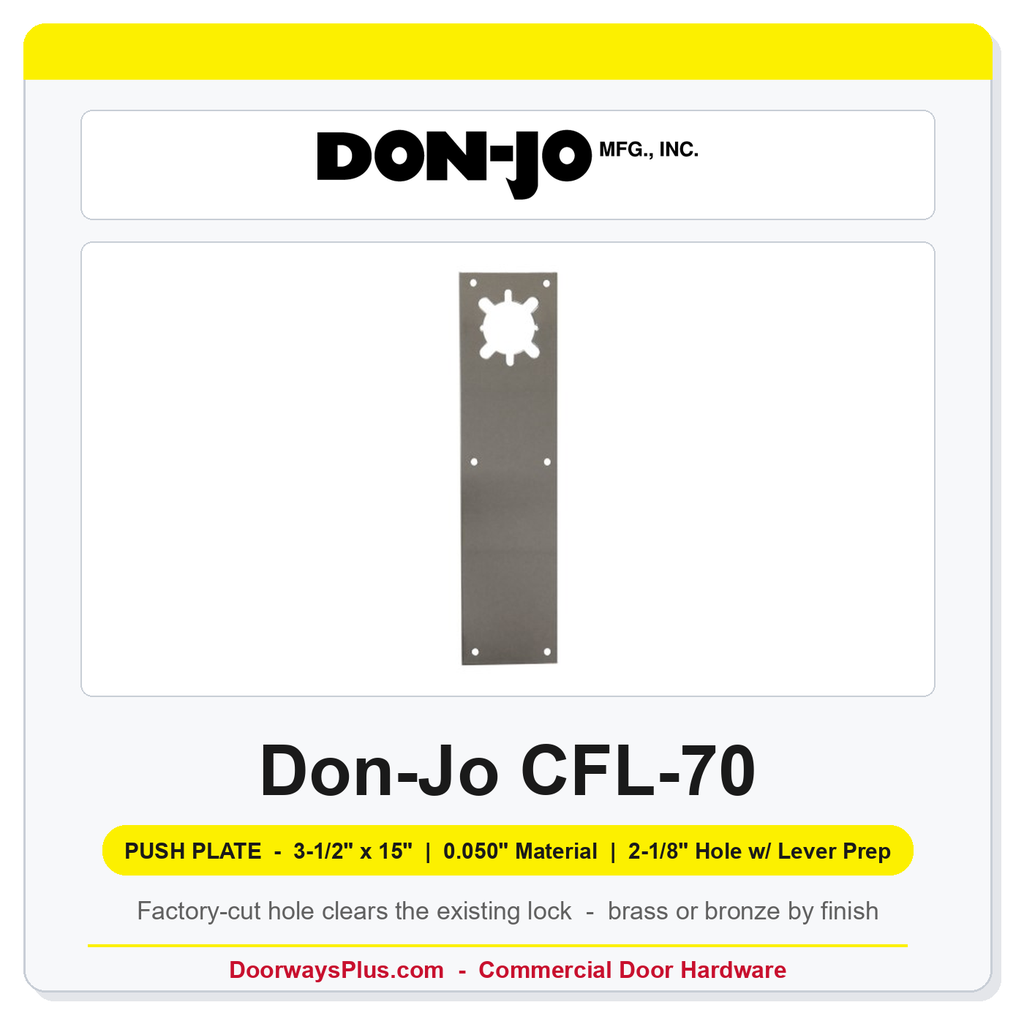

Don-Jo CFL-70 Push Plate with 2-1/8" Hole w/ Lever Prep
The Don-Jo CFL-70 is the standard 3-1/2" x 15" Don-Jo 70 push plate supplied with a factory-cut 2-1/8" Hole w/ Lever Prep, so it can be fitted over the existing lock hardware without drilling the plate on site. It protects the door face around the hardware on corridor, restroom and back-of-house openings.
Specification highlights
- 3-1/2" x 15" plate, 0.050" material — the same blank as the Don-Jo 70.
- 2-1/8" Hole w/ Lever Prep cut at the factory; see the cut sheet for hole location and the mounting-hole pattern.
- Countersunk mounting holes, fasteners supplied.
Ordering notes
Order as number + finish. Confirm the hole size against the lock hardware it must clear before ordering; the plate is not field-modifiable without spoiling the finish.
This item is made to order.
Technical Specifications
| Model | Don-Jo CFL-70 |
| Type | Push Plate with 2-1/8" Hole w/ Lever Prep |
| Plate Size | 3-1/2" x 15" |
| Material Thickness | 0.050" |
| Hole | 2-1/8" Hole w/ Lever Prep |
| Base Plate | Don-Jo 70 push plate |
| Finishes Carried | 605, 606, 613 |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Plate Height | 15" |
| Plate Width | 3.5" |
| Plate Material Gauge | 0.050" |
