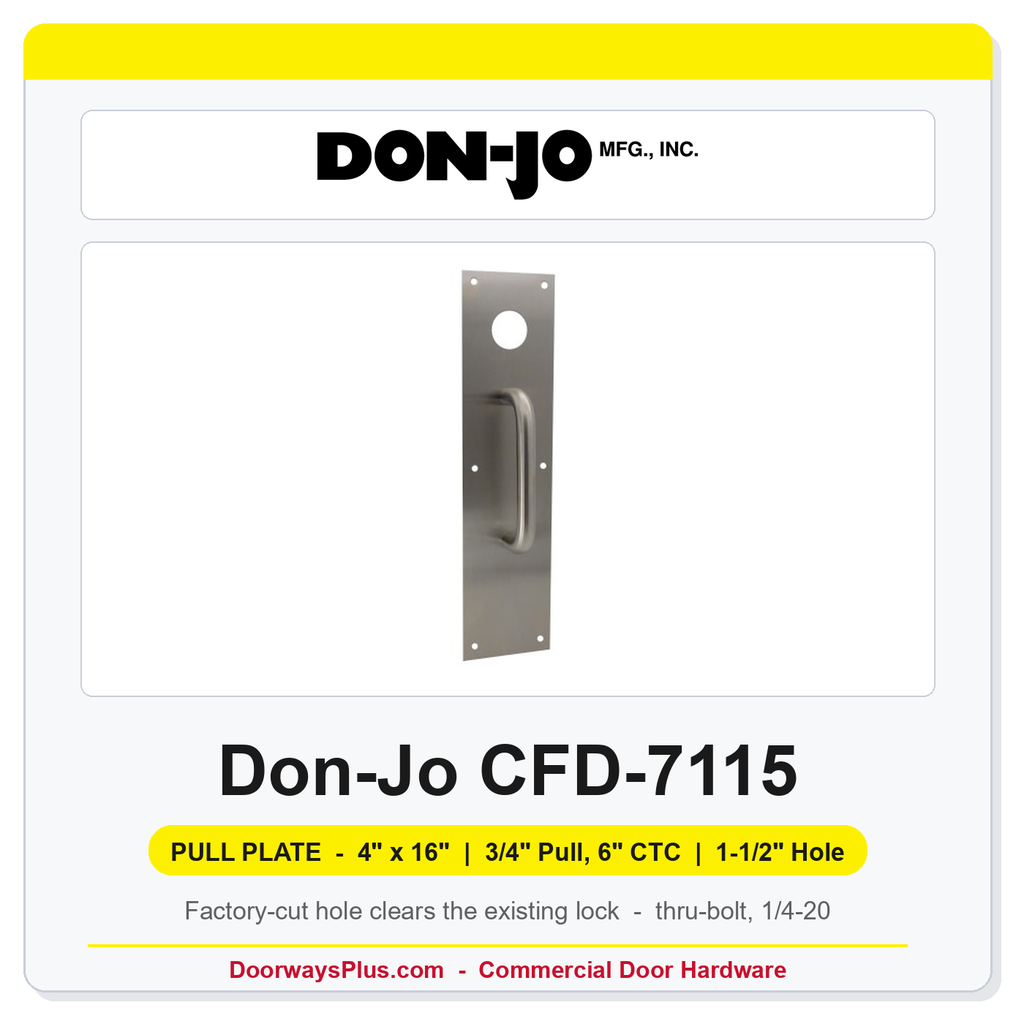

Don-Jo CFD-7115 Pull Plate with 1-1/2" Hole
The Don-Jo CFD-7115 is the standard 4" x 16" Don-Jo 7115 pull plate supplied with a factory-cut 1-1/2" Hole, so it can be fitted over the existing lock hardware without drilling the plate on site. It protects the door face around the hardware on corridor, restroom and back-of-house openings.
The plate carries the same 3/4" round bar pull as the Don-Jo 7115, on 6" centers with 2-1/4" projection and 1-1/2" hand clearance, thru-bolted with finish washers.
Specification highlights
- 4" x 16" plate, 0.050" material — the same blank as the Don-Jo 7115.
- 1-1/2" Hole cut at the factory; see the cut sheet for hole location and the mounting-hole pattern.
- Countersunk mounting holes, fasteners supplied.
Ordering notes
Order as number + finish. Confirm the hole size against the lock hardware it must clear before ordering; the plate is not field-modifiable without spoiling the finish.
This item is made to order.
Technical Specifications
| Model | Don-Jo CFD-7115 |
| Type | Pull Plate with 1-1/2" Hole |
| Plate Size | 4" x 16" |
| Material Thickness | 0.050" |
| Hole | 1-1/2" Hole |
| Base Plate | Don-Jo 7115 pull plate |
| Pull | 3/4" round bar |
| Center to Center | 6" |
| Projection | 2-1/4" |
| Clearance | 1-1/2" |
| Mounting | Thru-bolt (1/4-20 with finish washer) |
| Finishes Carried | 605, 606, 613, 628, 629, 630 |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US28 - 628/ Anodized Aluminum or US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze or US32 - Polished Stainless Steel |
| Brand | Don-Jo |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Plate Height | 16" |
| Plate Width | 4" |
| Center to Center Distance | 6" CTC |
| Handle Diameter | 3/4" |
| Plate Material Gauge | 0.050" |
