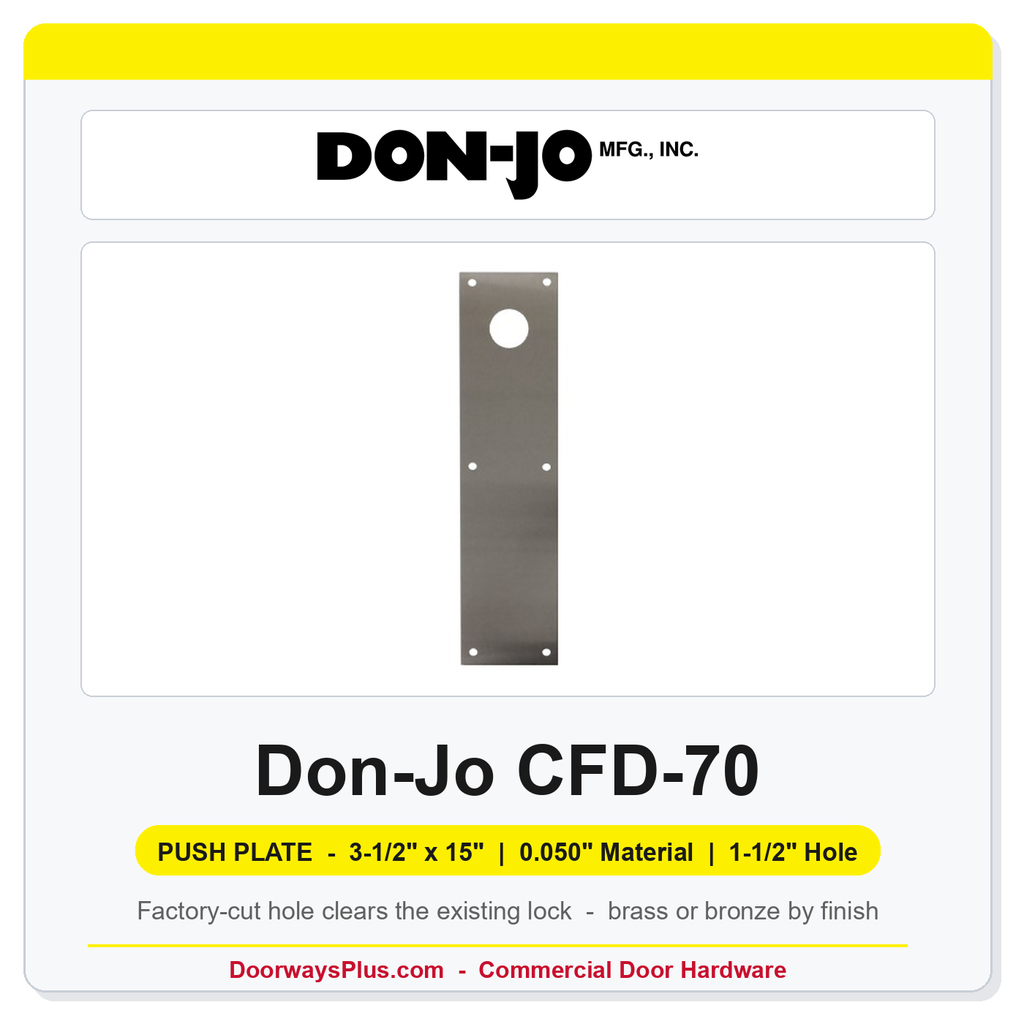

Don-Jo CFD-70 Push Plate with 1-1/2" Hole
The Don-Jo CFD-70 is the standard 3-1/2" x 15" Don-Jo 70 push plate supplied with a factory-cut 1-1/2" Hole, so it can be fitted over the existing lock hardware without drilling the plate on site. It protects the door face around the hardware on corridor, restroom and back-of-house openings.
Specification highlights
- 3-1/2" x 15" plate, 0.050" material — the same blank as the Don-Jo 70.
- 1-1/2" Hole cut at the factory; see the cut sheet for hole location and the mounting-hole pattern.
- Countersunk mounting holes, fasteners supplied.
Ordering notes
Order as number + finish. Confirm the hole size against the lock hardware it must clear before ordering; the plate is not field-modifiable without spoiling the finish.
This item is made to order.
Technical Specifications
| Model | Don-Jo CFD-70 |
| Type | Push Plate with 1-1/2" Hole |
| Plate Size | 3-1/2" x 15" |
| Material Thickness | 0.050" |
| Hole | 1-1/2" Hole |
| Base Plate | Don-Jo 70 push plate |
| Finishes Carried | 605, 606, 613 |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Plate Height | 15" |
| Plate Width | 3.5" |
| Plate Material Gauge | 0.050" |
