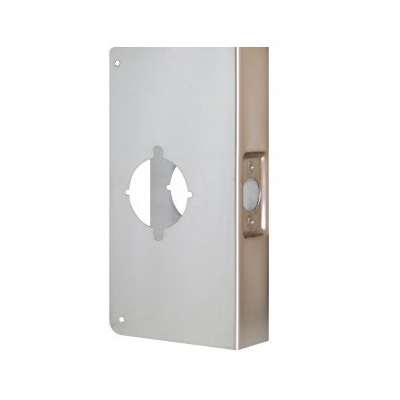

Don-Jo 9K-CW Stainless Steel Extended Wrap-Around Plate - 2-3/4" Backset
The Don-Jo 9K-CW is an architectural-grade Extended Door Wrap-Around Plate designed to provide maximum structural reinforcement and coverage for commercial doors. Crafted from heavy-duty US32D Satin Stainless Steel, this 9-inch tall plate is specifically engineered to solve complex door-prep issues. It features precision-cut mounting post notches tailored for the unique chassis requirements of BEST 93K/73K and SARGENT 6500 series locksets, ensuring a factory-perfect fit even on damaged or retrofitted doors.
Institutional Grade Features
- Extended 9" Coverage: The 9-inch height offers superior protection and aesthetics, making it the ideal "door saver" for covering oversized holes, splintered wood, or multiple previous mounting scars.
- Specialized Lock Prep: Features a standard 2-1/8" bore with integrated notches that allow the mounting posts of Best and Sargent cylindrical locks to seat securely against the door.
- Satin Stainless Steel (US32D): Provides a high-end, professional look that resists corrosion, scratches, and harsh cleaning chemicals in medical or educational environments.
- Precise 2-3/4" Backset: Designed for the standard commercial backset, ensuring your latch and lockset align perfectly with the existing strike plate.
Technical Specifications
- Manufacturer: Don-Jo
- Model Number: 9K-CW
- Material: Stainless Steel (US32D / 630)
- Dimensions: 4-3/4" Width x 9" Height
- Door Thickness: 1-3/4"
- Backset: 2-3/4"
- Compatibility: BEST 93K & 73K Series; SARGENT 6500 Series
Finishes carried
Select the finish above. This Don-Jo plate is offered in:
- 630 satin stainless steel (S)
- 613 oil-rubbed bronze (10B)
- 605 bright brass (PB)
- 609 satin brass, blackened (AB)
- 612 satin bronze (BZ)
Finish names follow ANSI/BHMA A156.18 and Don-Jo's letter codes. The material and finish statements above describe the 630 satin stainless steel version; the other finishes are Don-Jo's finish codes on the same 22-gauge (.032") wrap-around.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US5 - Blackened Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Door Thickness | 1-3/4" Dr Thickness |
| Backset | 2-3/4" Backset |
| Height | 9 Inch |
| Lock Type | Cylindrical Lock |
