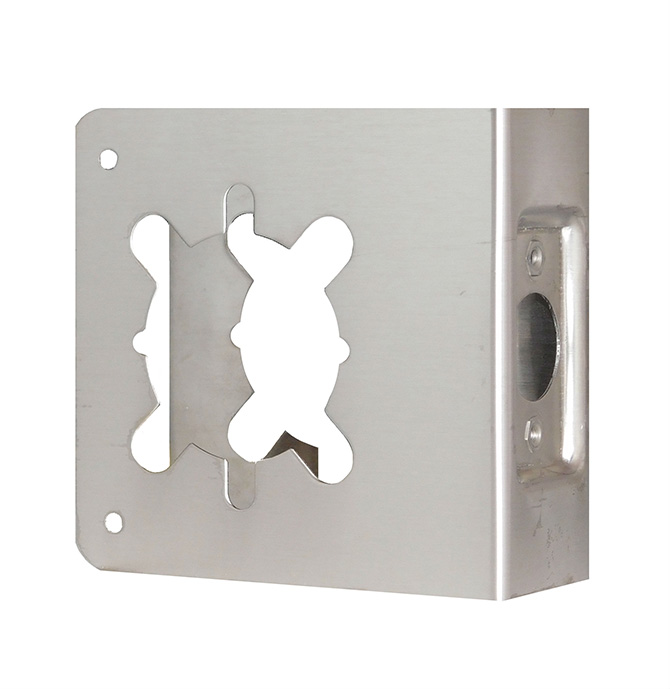

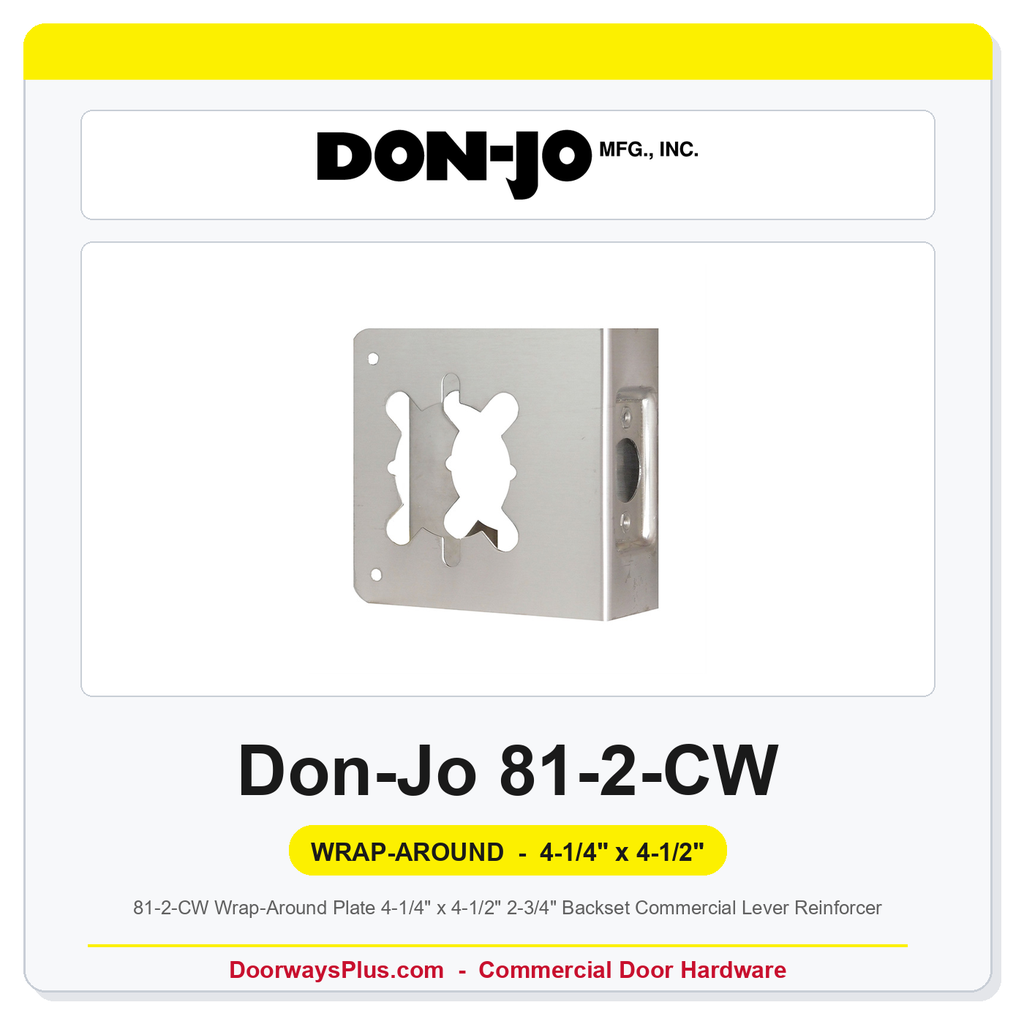

Don-Jo 81-2-CW Stainless Steel Wrap-Around Plate | 1-3/4" Commercial Lever Reinforcer

The Don-Jo 81-2-CW Stainless Steel Wrap-Around Plate is a high-security architectural solution designed specifically for the reinforcement and repair of doors using commercial-grade lever sets. Measuring 4-1/4" wide x 4-1/2" high, this heavy-duty door wrap-around plate is precision-engineered for standard 1-3/4" thick doors. It serves as the definitive solution for door surface repair, effectively concealing "ghosting," scratches, or structural damage around the bore hole while providing a rigid steel foundation for high-traffic hardware.

Key Features & Performance

• Lever-Ready Preparation: Custom-prepped for commercial levers, allowing mounting posts and thru bolts to pass directly through the plate for a unified, rock-solid installation.

• Commercial 2-3/4" Backset: Features a factory-punched 2-1/8" bore positioned exactly 2-3/4" from the door edge, the standard configuration for most commercial office and retail entryways.
• Standard 1-3/4" Fit: Tailor-made for the most common commercial door thickness, ensuring a flush, professional mount that coordinates with existing door stops and frames.
• Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, providing industrial-grade corrosion resistance and a modern brushed finish that matches architectural hardware.

• Structural Reinforcement: Strengthens the door leaf at its most vulnerable point, providing a permanent solution for door edge reinforcement that stands up to constant daily use.

Technical Details & Specifications

• Brand: Don-Jo
• Model Number: 81-2-CW
• Overall Size: 4-1/4" Width x 4-1/2" Height
• Door Thickness: 1-3/4"
• Backset: 2-3/4"
• Hole Prep: 2-1/8" with auxiliary lever mounting holes

• Material: Heavy-Gauge Stainless Steel
• Finish: US32D/630 (Satin Stainless Steel)

• Installation: Includes all necessary mounting fasteners. The lever's own mounting hardware integrates through the plate to create a tamper-resistant bond to the door.

Why Choose the Don-Jo 81-2-CW?

The Don-Jo 81-2-CW is the professional’s "problem solver" for maintaining commercial entryways. When a lever lock becomes loose or the door begins to crack around the latch, this stainless steel wrap plate restores the opening to better-than-factory strength, avoiding the high cost of full door replacement. It is a cost-effective and permanent solution for door restoration, delivering the industrial-strength security and polished aesthetic required for schools, hospitals, and office complexes.

​

Finishes carried

Select the finish above. This Don-Jo plate is offered in:

• 630 satin stainless steel (S)
• 613 oil-rubbed bronze (10B)
• 605 bright brass (PB)
• 609 satin brass, blackened (AB)
• 612 satin bronze (BZ)

Finish names follow ANSI/BHMA A156.18 and Don-Jo's letter codes. The material and finish statements above describe the 630 satin stainless steel version; the other finishes are Don-Jo's finish codes on the same 22-gauge (.032") wrap-around.
