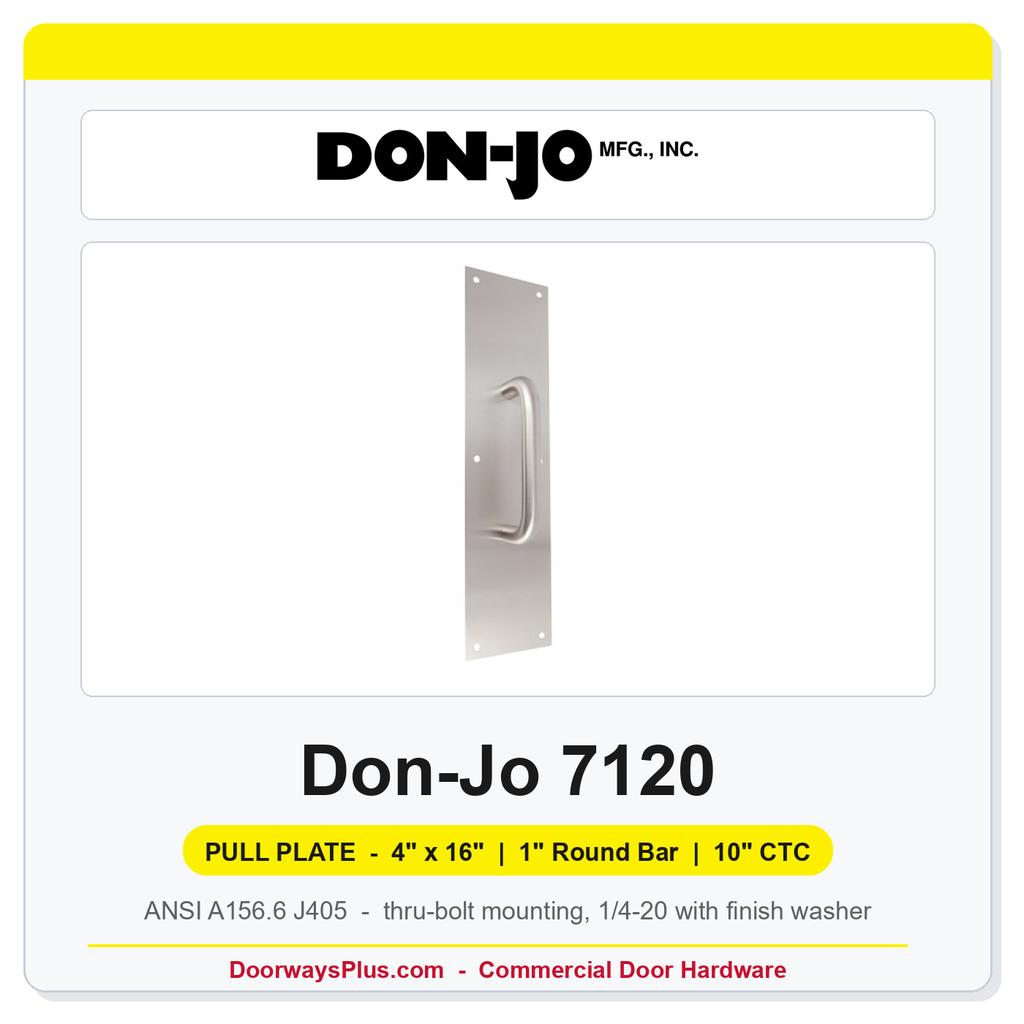

Don-Jo 7120 Pull Plate — 4" x 16" with 1" round bar
The Don-Jo 7120 combines a 4" x 16" plate with a 1" round bar on 10" centers, supplied as one assembly. It is the pull half of a push/pull pair on a non-latching door — corridor, restroom, and back-of-house openings.
Where it fits
Pair it with a push plate of the same plate size on the opposite face. Ordering the pull and the plate as a single Don-Jo number keeps the plate dimensions, finish and fastener pattern matched, which is the practical reason to buy the assembly rather than a loose pull and a separate plate.
Specification highlights
- ANSI/BHMA A156.6, function J405 — the pull-plate designation.
- 4" x 16" plate in 0.050" material.
- 1" round bar on 10" centers — the grip the specification calls out.
- Thru-bolt mounting (Don-Jo Method 1): 1/4-20 with finish washer supplied.
Ordering notes
Don-Jo pull plates are ordered as one number combining plate and pull. Two published upcharges apply on request: prefix H for the 2-1/2" clearance variant, and back-to-back mounting, which pairs a pull on both faces. Neither is included in the price shown — ask and we will quote it.
This item is made to order.
Technical Specifications
| Model | Don-Jo 7120 |
| Type | Pull plate with pull |
| Plate Dimensions | 4" W x 16" H |
| Plate Thickness | 0.050" |
| Projection | 3" |
| Pull | 1" round bar |
| Pull Diameter | 1" |
| Center to Center | 10" |
| ANSI/BHMA | A156.6 — J405 |
| Mounting | Thru-bolt (Don-Jo Method 1), 1/4-20 with finish washer |
| Finishes Carried | 605, 606, 613, 628, 629, 630 |
| Matching Push Plate | Don-Jo 71 (4" x 16") |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US28 - 628/ Anodized Aluminum or US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze or US32 - Polished Stainless Steel |
| Brand | Don-Jo |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Plate Height | 16" |
| Plate Width | 4" |
| Center to Center Distance | 10" CTC |
| Handle Diameter | 1" |
| Plate Material Gauge | 0.050" |
