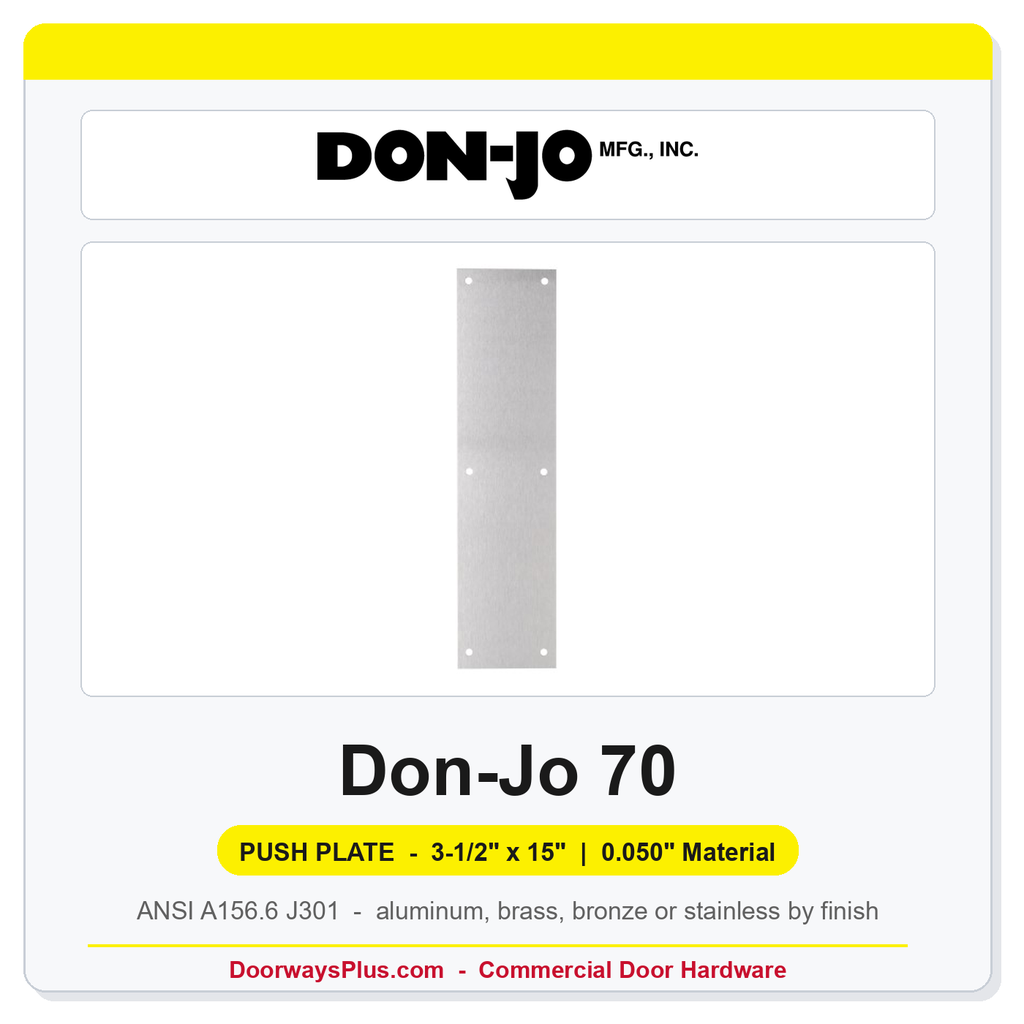

Don-Jo 70 Push Plate — 3.5" x 15" x 0.050"
The Don-Jo 70 is a commercial push plate measuring 3.5" wide by 15" high in 0.050" material, certified to ANSI/BHMA A156.6 J301. It is the standard push plate for a non-latching door — corridor, restroom, and back-of-house openings.
Where it fits
Push plates protect the door face from hand contact and finger soiling at the point of daily use. Match the plate width to the door stile: a wider plate takes a full hand, a narrower one suits a tight stile or a narrow-lite door.
Specification highlights
- ANSI/BHMA A156.6, function J301 — the push-plate designation architects specify.
- 0.050" material — the standard-duty gauge across the Don-Jo 69–73 series.
- 7 finishes carried, from polished brass through satin chrome and satin stainless.
Ordering notes
Don-Jo push plates are ordered as number + size + finish. The 0.050" series (models 69–73) is offered in aluminum, brass, bronze, stainless steel, and plastic depending on finish. If the specification calls for a heavier plate in this same 3.5" x 15" size, the Don-Jo 77 is the .125" stainless steel equivalent (630 satin stainless only).
This item is made to order.
Technical Specifications
| Model | Don-Jo 70 |
| Type | Push plate |
| Dimensions | 3.5" W x 15" H |
| Material Thickness | 0.050" |
| Material | Aluminum, brass, bronze, stainless steel or plastic by finish |
| ANSI/BHMA | A156.6 — J301 |
| Finishes Carried | 605, 606, 609, 612, 613, 619, 626 |
| Heavier Equivalent | Don-Jo 77 (.125" stainless steel, 630) |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US26D - Satin Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US5 - Blackened Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Plate Height | 15" |
| Plate Width | 3.5" |
| Plate Material Gauge | 0.050" |
