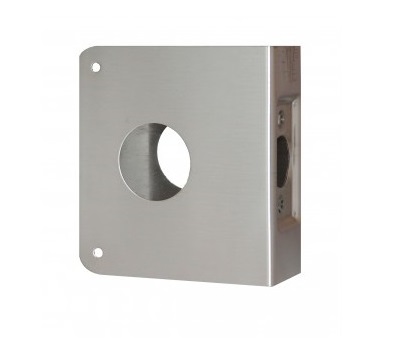

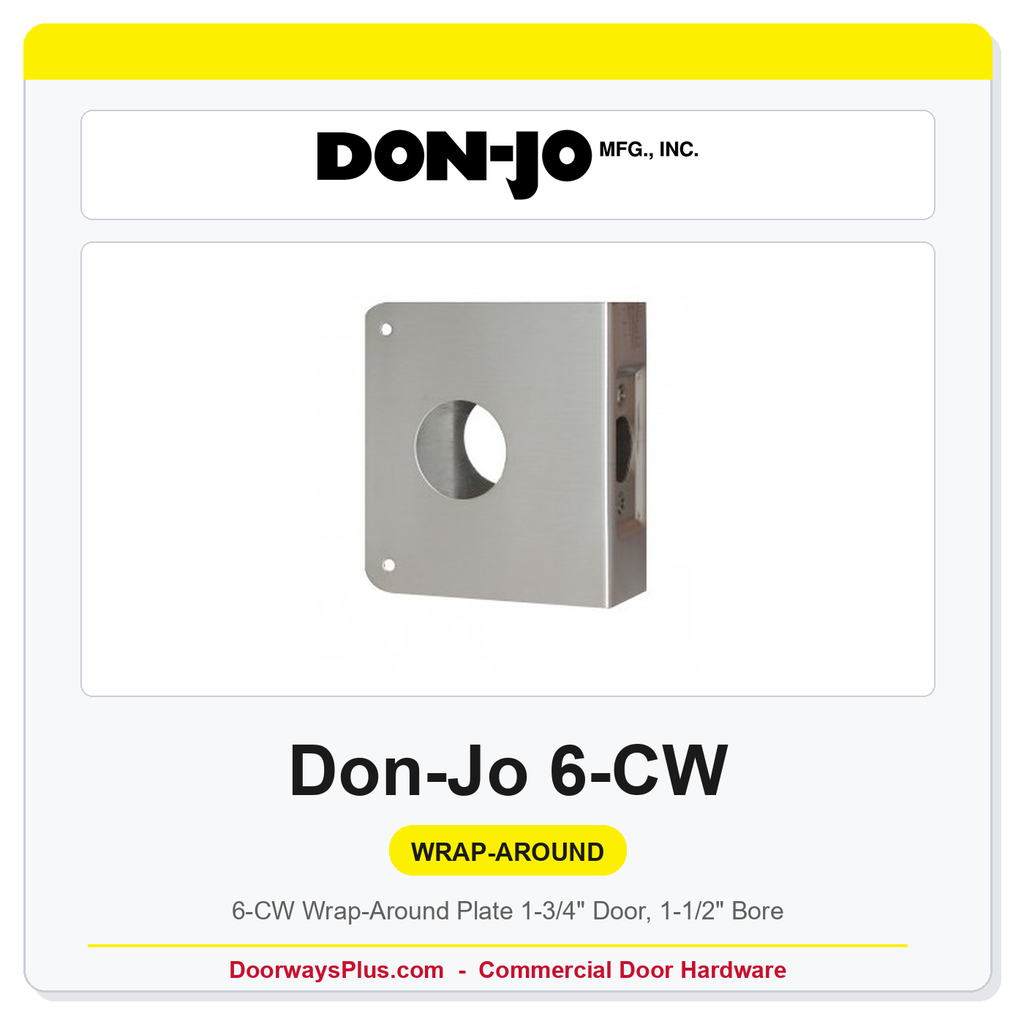

Don-Jo 6-CW Stainless Steel Wrap-Around Plate | 1-3/4" Deadbolt Reinforcer (1-1/2" Hole)

The Don-Jo 6-CW Stainless Steel Wrap-Around Plate is a high-security architectural component designed to provide heavy-duty reinforcement for standard commercial and residential doors. Measuring a compact 4" wide x 4-1/2" high, this door reinforcer is precision-engineered for 1-3/4" thick doors. It serves as the premier solution for door surface repair when the area around a deadbolt has become cracked, splintered, or compromised, offering a permanent way to restore structural integrity.

Precision-manufactured with a 1-1/2" hole prep, the 6-CW is specifically designed for deadbolts requiring a smaller bore than standard cylindrical locks. By "sandwiching" the door edge and faces in industrial-grade steel, it creates a high-impact barrier that serves as a critical solution for door security, preventing the door from splitting during a forced entry attempt.

Key Features & Performance

• 1-3/4" Commercial Standard: Precision-fit for the standard thickness of commercial hollow metal and solid-core wood doors, ensuring a flush and secure installation.
• Specialized 1-1/2" Deadbolt Prep: Features a factory-punched 1-1/2" bore, making it the ideal remodeling scar plate for deadbolt hardware that utilizes a smaller mounting hole.
• Standard 2-3/8" Backset: Pre-prepped for a 2-3/8" backset, allowing for a "drop-in" reinforcement solution for the most common residential and light-commercial door configurations.
• Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, offering superior corrosion resistance and a modern, brushed finish that coordinates with architectural hardware.
• Targeted Reinforcement: The concentrated 4" x 4-1/2" profile provides maximum strength exactly where the deadbolt is mounted, acting as an efficient solution for door edge reinforcement.

Technical Details & Specifications

• Brand: Don-Jo
• Model Number: 6-CW
• Overall Size: 4" Width x 4-1/2" Height
• Door Thickness: 1-3/4"
• Backset: 2-3/8"
• Hole Prep: 1-1/2" (Specialized Deadbolt Prep)
• Material: Heavy-Gauge Stainless Steel
• Finish: US32D/630 (Satin Stainless Steel)
• Installation: Includes all necessary mounting fasteners. For maximum stability, the deadbolt's own mounting screws or thru bolts secure the assembly firmly to the door leaf.

Why Choose the Don-Jo 6-CW?

The Don-Jo 6-CW is the professional's choice for "saving" a door rather than replacing it. When a door is weakened by an attempted break-in or hardware failure, this stainless steel wrap plate restores the opening to better-than-factory strength. It is a cost-effective and permanent solution for door restoration, delivering the industrial-strength security and polished appearance required for high-traffic facilities and secure residences.

​

Finishes carried

Select the finish above. This Don-Jo plate is offered in:

• 630 satin stainless steel (S)
• 613 oil-rubbed bronze (10B)
• 605 bright brass (PB)
• 609 satin brass, blackened (AB)
• 612 satin bronze (BZ)

Finish names follow ANSI/BHMA A156.18 and Don-Jo's letter codes. The material and finish statements above describe the 630 satin stainless steel version; the other finishes are Don-Jo's finish codes on the same 22-gauge (.032") wrap-around.
