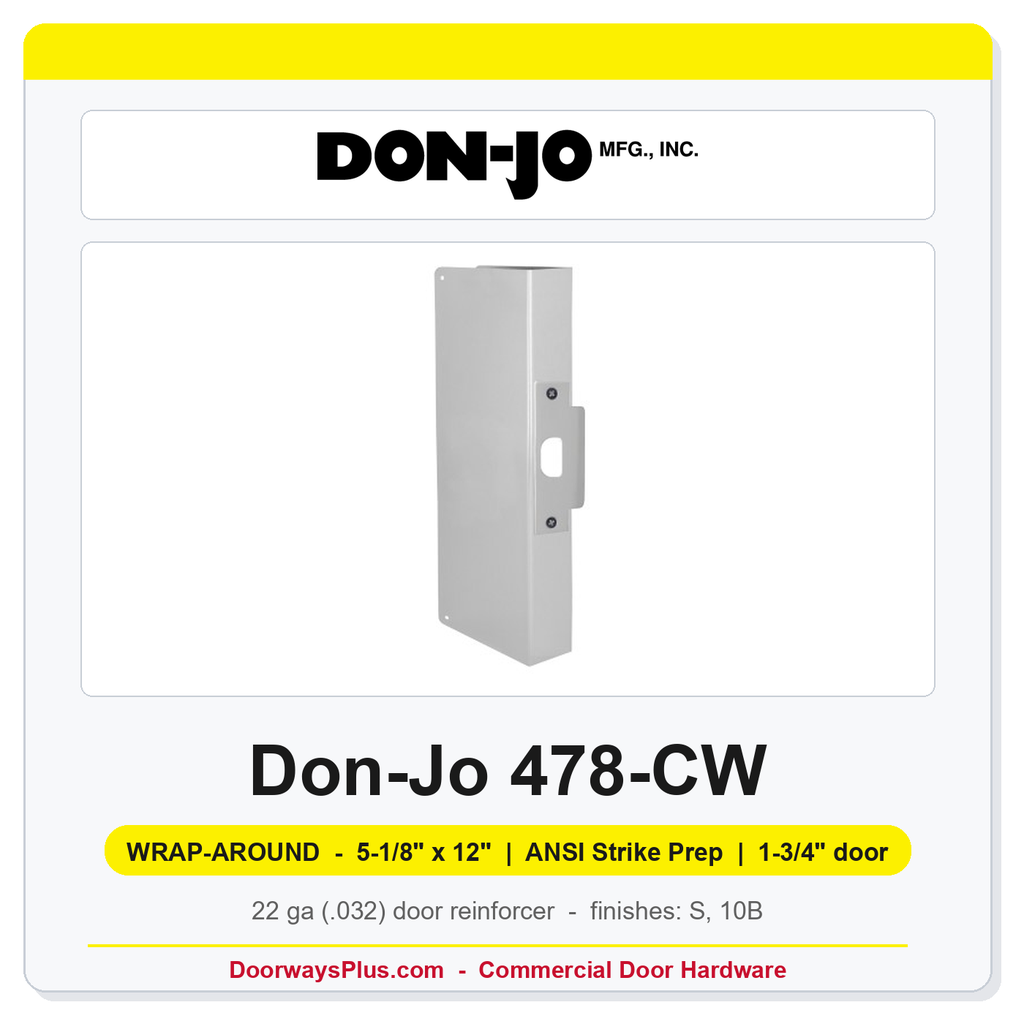

Don-Jo 478-CW Wrap-Around Plate
The Don-Jo 478-CW is a wrap-around reinforcer with an ANSI strike prep, for the strike-side leaf of a pair or a door that carries the strike. It wraps the lock edge of a 1-3/4" door with 22-gauge (.032") metal on both faces and the edge, 5-1/8" wide by 12" high, so a split, scarred or over-bored lock area is covered and stiffened without replacing the door.
Don-Jo "CW" plates come box packaged as standard. Order by number plus finish; this is a non-stock item that ships from Don-Jo.
Specification highlights
- 5-1/8" x 12", 22 gauge (.032").
- Door thickness: 1-3/4".
- Type: ANSI Strike Prep Wrap Around.
Finishes carried
- S — 630 satin stainless steel
- 10B — 613 oil-rubbed bronze
Technical Specifications
| Model | Don-Jo 478-CW |
| Type | ANSI Strike Prep Wrap Around (Don-Jo) |
| Size | 5-1/8" wide x 12" high |
| Gauge | 22 gauge (.032") (Don-Jo) |
| Door Thickness | 1-3/4" |
| Finishes Carried | 630 satin stainless steel, 613 oil-rubbed bronze |
| Shelf Pack | 1 |
| Lead Time | 3–10 business days (non-stock, ships from Don-Jo) |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Door Thickness | 1-3/4" Dr Thickness |
| Height | 12 Inch |
| Lock Type | ANSI Strike Prep |
