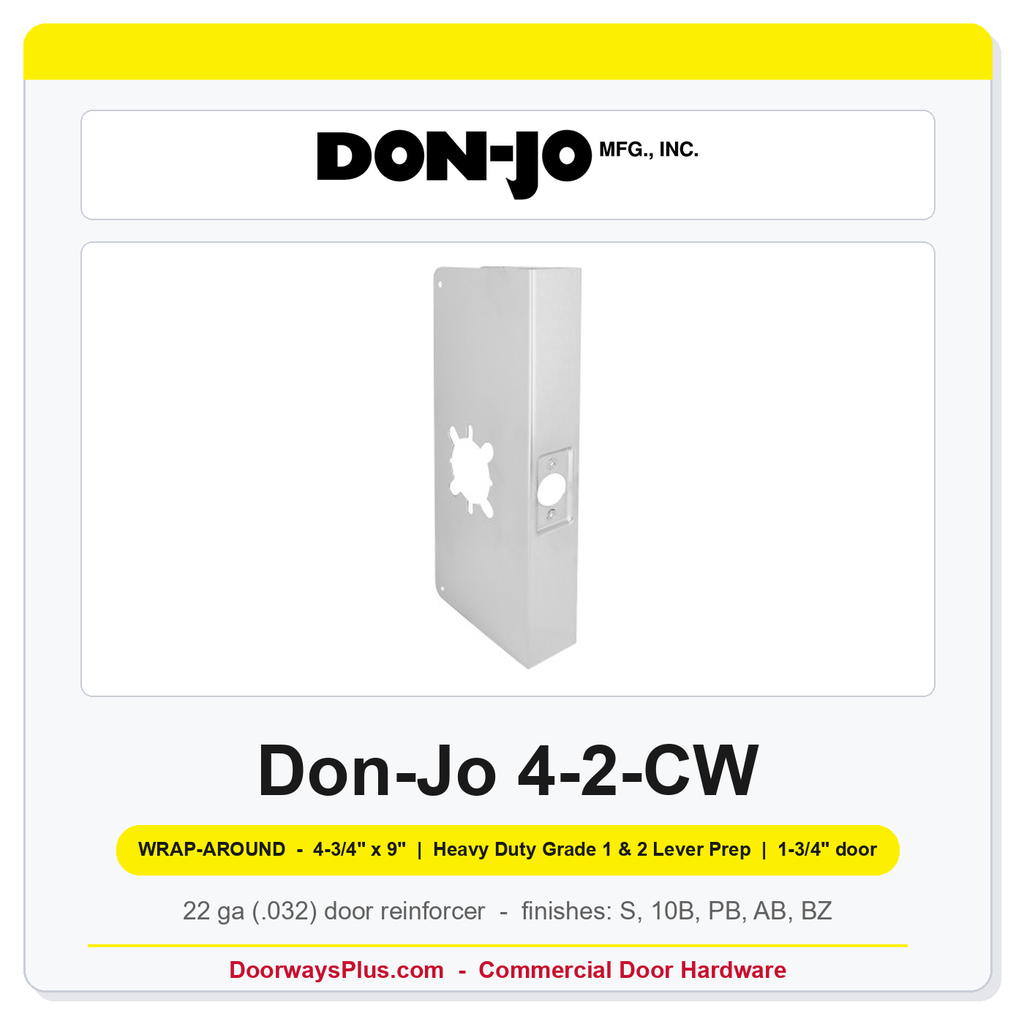

Don-Jo 4-2-CW Wrap-Around Plate
The Don-Jo 4-2-CW is a wrap-around door reinforcer for a cylindrical lock (Heavy Duty Grade 1 & 2 Lever Prep). It wraps the lock edge of a 1-3/4" door with 22-gauge (.032") metal on both faces and the edge, 4-3/4" wide by 9" high, so a split, scarred or over-bored lock area is covered and stiffened without replacing the door. Backset 2-3/4", door thickness 1-3/4".
Don-Jo "CW" plates come box packaged as standard. Order by number plus finish; this is a non-stock item that ships from Don-Jo.
Don-Jo note: Display package (5 1/4" x 11") also available, When ordering indicate by replacing the letters "CW" with "V" after the item number.
Specification highlights
- 4-3/4" x 9", 22 gauge (.032").
- Door thickness: 1-3/4".
- Backset: 2-3/4".
- Prep: Lever Prep, indent latch prep.
- Type: CW comes box packaged as standard, Box Size - 4 1/2" x 9 3/4".
Finishes carried
- S — 630 satin stainless steel
- 10B — 613 oil-rubbed bronze
- PB — 605 bright brass
- AB — 609 satin brass, blackened (Don-Jo AB)
- BZ — 612 satin bronze
Technical Specifications
| Model | Don-Jo 4-2-CW |
| Type | CW comes box packaged as standard, Box Size - 4 1/2" x 9 3/4" (Don-Jo) |
| Size | 4-3/4" wide x 9" high |
| Gauge | 22 gauge (.032") (Don-Jo) |
| Door Thickness | 1-3/4" |
| Backset | 2-3/4" |
| Hole / Prep | Lever Prep |
| Latch Prep | Indent |
| Finishes Carried | 630 satin stainless steel, 613 oil-rubbed bronze, 605 bright brass, 609 satin brass, blackened (Don-Jo AB), 612 satin bronze |
| Shelf Pack | 1 |
| Lead Time | 3–10 business days (non-stock, ships from Don-Jo) |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US5 - Blackened Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Backset | 2-3/4" Backset |
| Door Thickness | 1-3/4" Dr Thickness |
| Height | 9 Inch |
| Lock Type | Cylindrical Lock |
