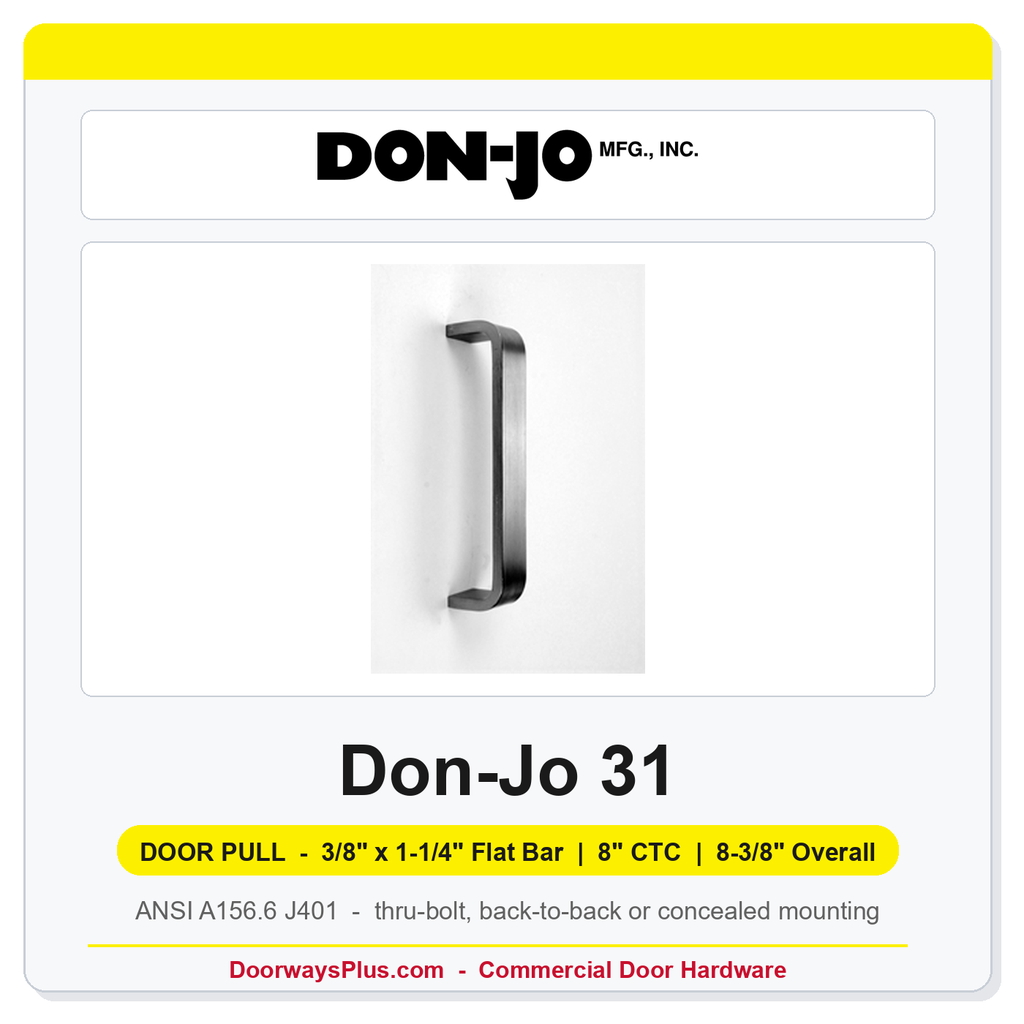

Don-Jo 31 3/8" x 1-1/4" Flat Bar Door Pull
The Don-Jo 31 is a 3/8" x 1-1/4" flat bar door pull for commercial openings, 8" center-to-center. It mounts on the pull side of the door and ships with the fasteners for the mounting method you select.
Specification highlights
- ANSI/BHMA A156.6, function J401 — the door pull designation.
- Overall length 8-3/8" on 8" centers.
- Projection 2", hand clearance 1-5/8".
- Seven mounting methods — thru-bolt, back-to-back and surface-concealed for wood or metal, plus dedicated glass-door methods using a 3/8-24 decorative bolt with a 5/8" plexiglass bushing and neoprene washers.
Ordering notes
Don-Jo pulls are ordered as number + finish, with the mounting method called out separately. Two published upcharges apply on request: prefix H for the 2-1/2" clearance variant, and back-to-back mounting, which pairs a matching pull on the opposite face. Neither is included in the price shown.
This item is made to order.
Technical Specifications
| Model | Don-Jo 31 |
| Type | 3/8" x 1-1/4" Flat Bar Door Pull |
| Bar Section | 3/8" x 1-1/4" |
| Center to Center | 8" |
| Overall Length | 8-3/8" |
| Projection | 2" |
| Clearance | 1-5/8" |
| ANSI/BHMA | A156.6 — J401 |
| Mounting | Thru-bolt, back-to-back, surface concealed or concealed (Don-Jo Methods 1-7) |
| Finishes Carried | 605, 613, 630 |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Pull Handle Mounting Types | Type 1 (1/4"-20) |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Center to Center Distance | 8" CTC |
| Pull Handle Overall Length | 8-3/8" |
