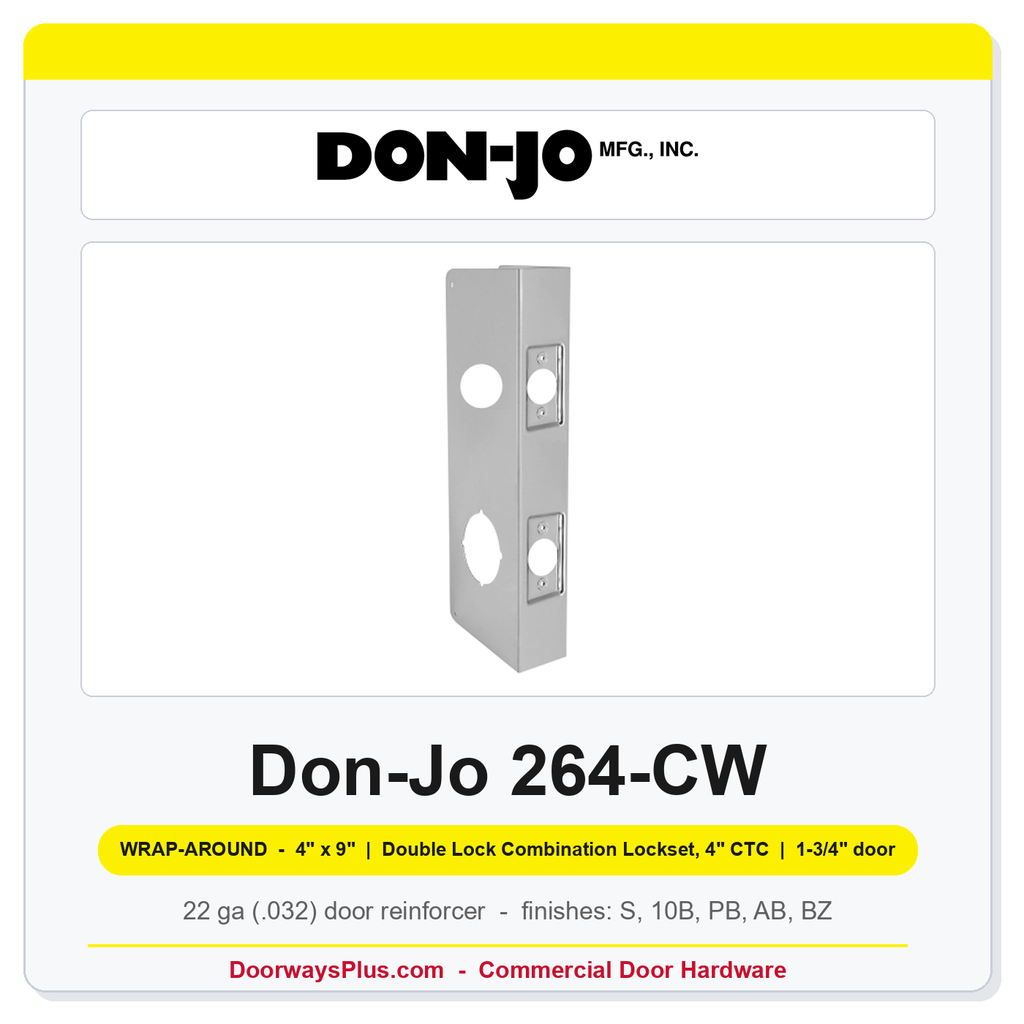

Don-Jo 264-CW Wrap-Around Plate
The Don-Jo 264-CW is a wrap-around door reinforcer for doors prepped for a double-lock combination lockset (knob or lever plus deadbolt) on 4" centers. It wraps the lock edge of a 1-3/4" door with 22-gauge (.032") metal on both faces and the edge, 4" wide by 9" high, so a split, scarred or over-bored lock area is covered and stiffened without replacing the door. Backset 2-3/8", door thickness 1-3/4".
Don-Jo "CW" plates come box packaged as standard. Order by number plus finish; this is a non-stock item that ships from Don-Jo.
Don-Jo note: Display Packaged also available. When ordering indicate by replacing the letters "CW" with "V" after the item number.
Specification highlights
- 4" x 9", 22 gauge (.032").
- Door thickness: 1-3/4".
- Backset: 2-3/8".
- Prep: (1) 1-1/2" (1) 2-1/8", double indent latch prep.
- Type: For DOUBLE LOCK COMBINATION LOCKSETS with 1-1/2" hole on top and 2-1/8" hole on bottom with 4" centers.
Finishes carried
- S — 630 satin stainless steel
- 10B — 613 oil-rubbed bronze
- PB — 605 bright brass
- AB — 609 satin brass, blackened (Don-Jo AB)
- BZ — 612 satin bronze
Technical Specifications
| Model | Don-Jo 264-CW |
| Type | For DOUBLE LOCK COMBINATION LOCKSETS with 1-1/2" hole on top and 2-1/8" hole on bottom with 4" centers (Don-Jo) |
| Size | 4" wide x 9" high |
| Gauge | 22 gauge (.032") (Don-Jo) |
| Door Thickness | 1-3/4" |
| Backset | 2-3/8" |
| Center to Center | 4" |
| Hole / Prep | (1) 1-1/2" (1) 2-1/8" |
| Latch Prep | Double Indent |
| Finishes Carried | 630 satin stainless steel, 613 oil-rubbed bronze, 605 bright brass, 609 satin brass, blackened (Don-Jo AB), 612 satin bronze |
| Shelf Pack | 1 |
| Lead Time | 3–10 business days (non-stock, ships from Don-Jo) |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US5 - Blackened Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Backset | 2-3/8" Backset |
| Door Thickness | 1-3/4" Dr Thickness |
| Height | 9 Inch |
| Lock Type | Combination Lockset |
