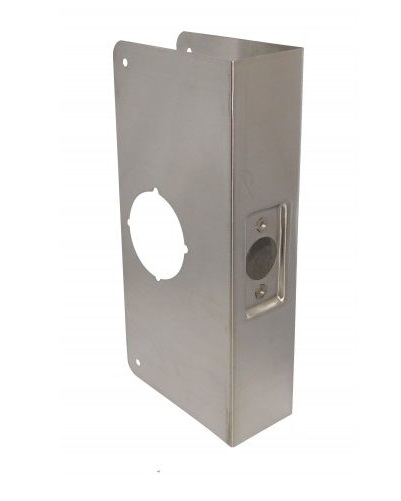

Don-Jo 214-CW Stainless Steel Wrap-Around Plate | 2-1/4" Extra-Thick Door Reinforcer

Precision-manufactured with a 2-1/8" hole prep and a 2-3/4" backset, the 214-CW is the ideal choice for reinforcing cylindrical locksets on thick-profile entryways. By reinforcing the most vulnerable point of the door leaf, it serves as a critical solution for commercial door security, preventing the door from splitting during a forced entry attempt or under the daily stress of high-frequency use.

Key Features & Performance

• Specialized 2-1/4" Fit: Custom-contoured for the thicker profile of oversized commercial wood or hollow metal doors, ensuring a flush and secure installation.
• 9-Inch Protective Coverage: The extended height acts as a professional remodeling scar plate, hiding unsightly mounting marks and finish wear for a clean, factory-finished appearance.
• Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, providing industrial-grade corrosion resistance and a modern, brushed aesthetic that coordinates with architectural hardware.

• Structural Reinforcement: Strengthens the door leaf to prevent hardware from loosening over time and provides a permanent solution for door edge reinforcement.


Technical Details & Specifications

• Brand: Don-Jo
• Model Number: 214-CW
• Overall Size: 4-1/4" Width x 9" Height

• Door Thickness: 2-1/4"
• Backset: 2-3/4"
• Hole Prep: 2-1/8" Standard Cylindrical

• Material: Heavy-Gauge Stainless Steel
• Finish: US32D/630 (Satin Stainless Steel)
• Installation: Includes all necessary mounting fasteners. For high-security applications, the lockset's own thru bolts or mounting screws pass through the plate to create a rigid, tamper-resistant bond to the door.


Why Choose the Don-Jo 214-CW?

The Don-Jo 214-CW is the industry-standard "problem solver" for unique door thicknesses. Finding high-quality reinforcement for 2-1/4" doors is a challenge; this stainless steel wrap plate restores the opening to better-than-factory strength, avoiding the exorbitant cost of full door replacement. It is a permanent and aesthetically pleasing solution for door restoration, delivering the industrial-strength security required for industrial plants, high-security facilities, and custom commercial architecture.

​

Finishes carried

Select the finish above. This Don-Jo plate is offered in:

• 630 satin stainless steel (S)
• 613 oil-rubbed bronze (10B)
• 605 bright brass (PB)

Finish names follow ANSI/BHMA A156.18 and Don-Jo's letter codes. The material and finish statements above describe the 630 satin stainless steel version; the other finishes are Don-Jo's finish codes on the same 22-gauge (.032") wrap-around.
