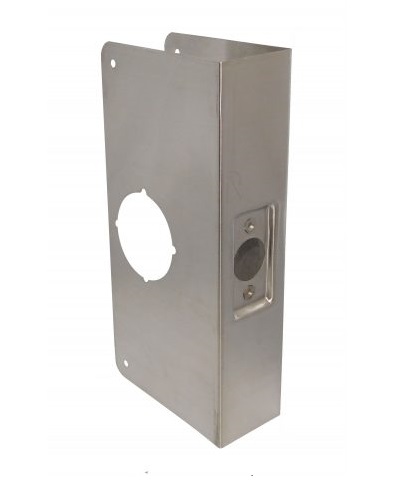

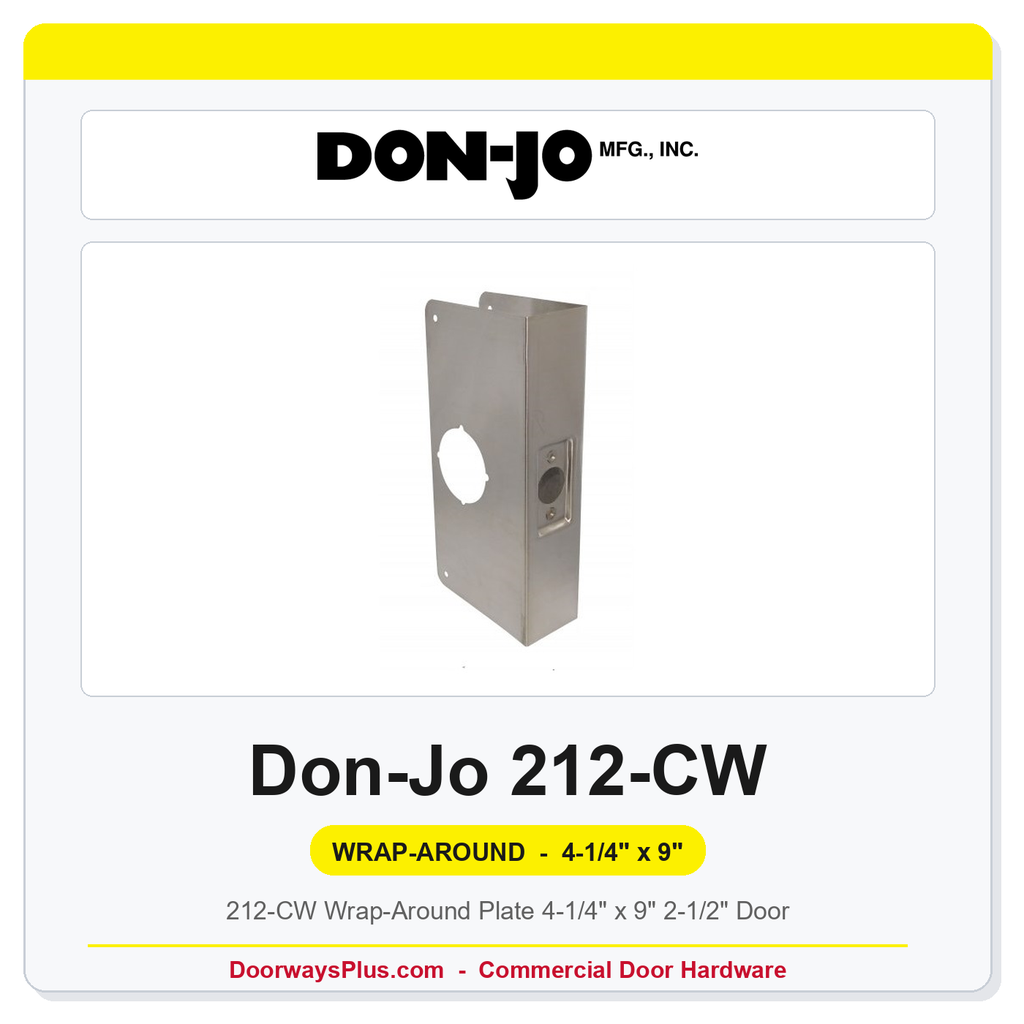

Don-Jo 212-CW Stainless Steel Wrap-Around Plate | 2-1/2" Extra-Thick Door Reinforcer

Precision-prepped with a 2-1/8" hole and a 2-3/4" backset, the 212-CW is the ideal choice for reinforcing cylindrical locksets on thick-profile entryways. By "sandwiching" the door edge and both faces in industrial-grade steel, it provides a critical solution for commercial door security, preventing the door from splitting under extreme force or high-frequency usage.

Key Features & Performance

• Specialized 2-1/2" Fit: Custom-contoured for extra-thick door leaves, ensuring a flush and secure installation on non-standard oversized commercial openings.
• 9-Inch Structural Coverage: The extended height acts as a professional-grade remodeling scar plate, hiding massive mounting marks, finish wear, and structural imperfections for a factory-clean look.
• Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, offering maximum corrosion resistance and a modern, brushed finish that coordinates with architectural hardware.

• Extreme Reinforcement: Strengthens the door leaf to prevent hardware from loosening and provides a permanent, heavy-duty solution for door edge reinforcement.


Technical Details & Specifications

• Brand: Don-Jo
• Model Number: 212-CW
• Overall Size: 4-1/4" Width x 9" Height

• Door Thickness: 2-1/2"
• Backset: 2-3/4"
• Hole Prep: 2-1/8" Standard Cylindrical

• Material: Heavy-Gauge Stainless Steel
• Finish: US32D/630 (Satin Stainless Steel)

• Installation: Includes all necessary mounting fasteners. For high-security applications, the lockset's own thru bolts or mounting screws pass through the plate to create a rigid, tamper-resistant bond.

Why Choose the Don-Jo 212-CW?

The Don-Jo 212-CW is the industry-standard "problem solver" for unique, oversized door thicknesses. Finding high-quality security hardware for 2-1/2" doors is a challenge; this stainless steel wrap plate restores the opening to better-than-factory strength, avoiding the exorbitant cost of full door replacement. It is a permanent and aesthetically pleasing solution for door restoration, delivering the industrial-strength security required for industrial plants, high-security facilities, and custom commercial architecture.

​

Finishes carried

Select the finish above. This Don-Jo plate is offered in:

• 630 satin stainless steel (S)
• 613 oil-rubbed bronze (10B)
• 605 bright brass (PB)

Finish names follow ANSI/BHMA A156.18 and Don-Jo's letter codes. The material and finish statements above describe the 630 satin stainless steel version; the other finishes are Don-Jo's finish codes on the same 22-gauge (.032") wrap-around.
