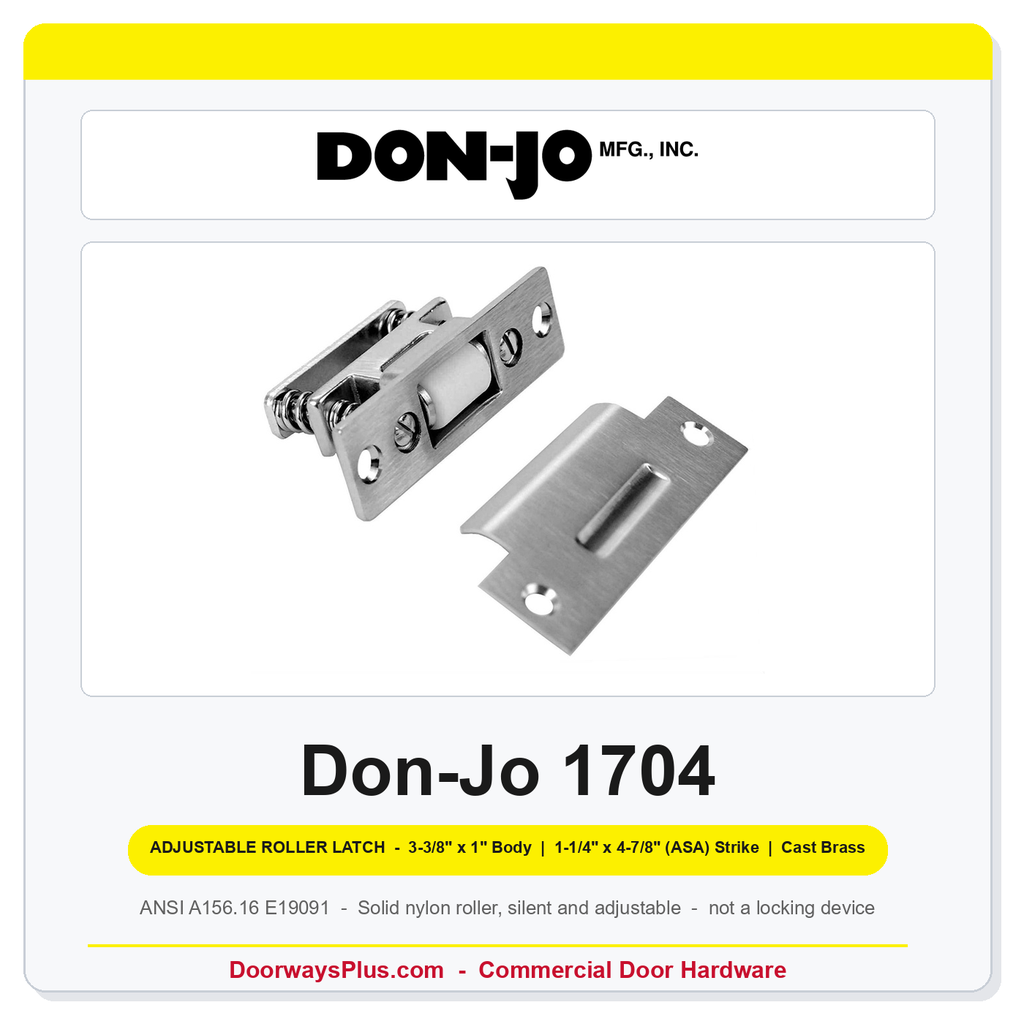

Don-Jo 1704 Adjustable Roller Latch
The Don-Jo 1704 is an adjustable roller latch in cast brass with a solid nylon roller for silent operation. It holds a door closed by spring pressure against a strike, with no latch bolt to operate — push or pull and the door opens.
Roller latches suit closet, pantry, utility and dummy-trim doors where the door should stay shut but nobody needs a latch bolt. This model is furnished with the 1-1/4" x 4-7/8" (ASA) strike for hollow metal frames. Roller latches are not a locking or fire-rated latching device.
Specification highlights
- 3-3/8" x 1" body, solid nylon roller, adjustable projection.
- 1-1/4" x 4-7/8" (ASA) strike supplied.
- ANSI/BHMA A156.16 E19091.
- Fasteners supplied (per the Don-Jo catalog).
Ordering notes
Order as number + finish. This item is made to order.
Technical Specifications
| Model | Don-Jo 1704 |
| Type | Adjustable Roller Latch |
| Material | Cast Brass |
| Body | 3-3/8" x 1" |
| Strike | 1-1/4" x 4-7/8" (ASA) |
| Roller | Solid nylon, adjustable |
| ANSI/BHMA | A156.16 — E19091 |
| Finishes Carried | 605, 613, 619, 620, 626 |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US26D - Satin Chrome or US15 - Satin Nickel or US3 - Polished Brass or US10B - Oil Rubbed Bronze or US15A - Blackened Satin Nickel |
| Brand | Don-Jo |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
