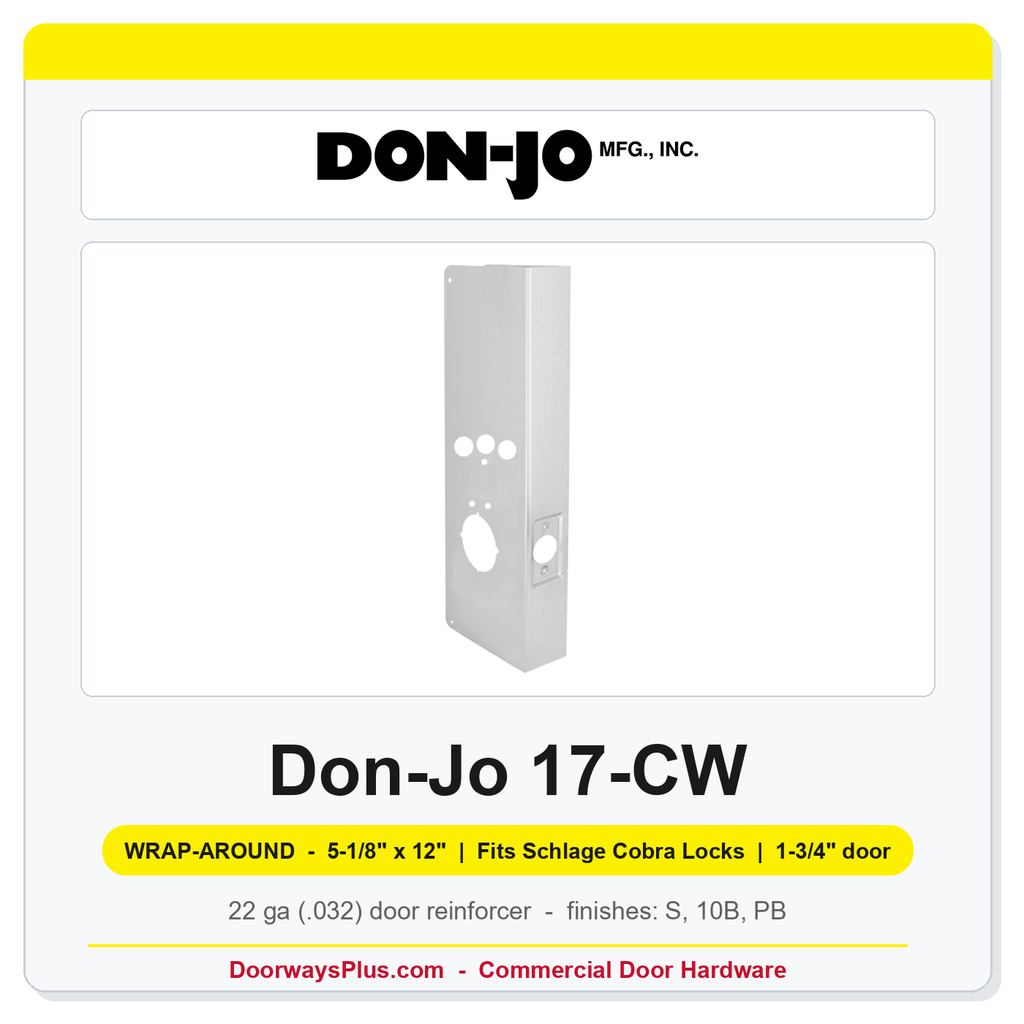

Don-Jo 17-CW Wrap-Around Plate
The Don-Jo 17-CW is a wrap-around door reinforcer cut for an electronic / keypad lock (Fits Schlage Cobra Locks). It wraps the lock edge of a 1-3/4" door with 22-gauge (.032") metal on both faces and the edge, 5-1/8" wide by 12" high, so a split, scarred or over-bored lock area is covered and stiffened without replacing the door. Backset 2-3/4", door thickness 1-3/4".
Don-Jo "CW" plates come box packaged as standard. Order by number plus finish; this is a non-stock item that ships from Don-Jo.
Specification highlights
- 5-1/8" x 12", 22 gauge (.032").
- Door thickness: 1-3/4".
- Backset: 2-3/4".
- Prep: Electronic Lock, indent latch prep.
- Type: Works with Schlage Cobra locks.
Finishes carried
- S — 630 satin stainless steel
- 10B — 613 oil-rubbed bronze
- PB — 605 bright brass
Technical Specifications
| Model | Don-Jo 17-CW |
| Type | Works with Schlage Cobra locks (Don-Jo) |
| Size | 5-1/8" wide x 12" high |
| Gauge | 22 gauge (.032") (Don-Jo) |
| Door Thickness | 1-3/4" |
| Backset | 2-3/4" |
| Hole / Prep | Electronic Lock |
| Latch Prep | Indent |
| Finishes Carried | 630 satin stainless steel, 613 oil-rubbed bronze, 605 bright brass |
| Shelf Pack | 1 |
| Lead Time | 3–10 business days (non-stock, ships from Don-Jo) |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Backset | 2-3/4" Backset |
| Door Thickness | 1-3/4" Dr Thickness |
| Height | 12 Inch |
| Lock Type | Electronic Lock |
