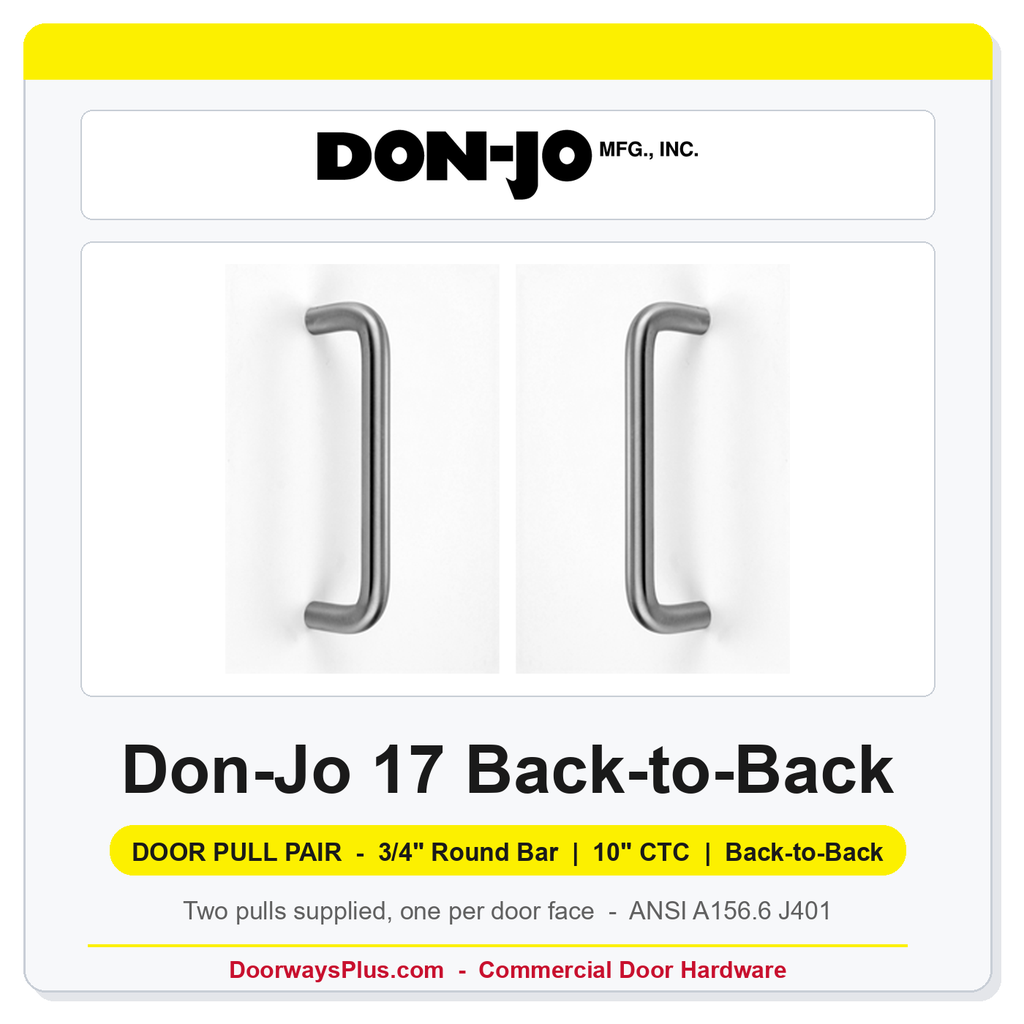

Don-Jo 17 3/4" Round Bar Door Pull — Back-to-Back Pair
This is the back-to-back configuration of the Don-Jo 17 3/4" round bar door pull on 10" centers: two pulls, one on each face of the door, fastened through the door to each other. The price shown covers both pulls and the back-to-back fasteners.
When you want back-to-back
Back-to-back is the normal choice where a door is pulled from both sides — an interior glass door, a vestibule, or any opening without a push plate on the opposite face. Because the two pulls bolt to each other rather than into the door, it also avoids relying on the door skin to hold the fastener. If you only need a pull on one face, order the single 17 instead.
Specification highlights
- Two pulls supplied — matched pair, same finish.
- Back-to-back mounting (Don-Jo Method 3): 1/4-20 with set screw.
- Same pull, same dimensions as the single 17 — only the mounting and the quantity change.
Ordering notes
Priced per the Don-Jo price book, which sets back-to-back at double the pull plus $5.00 net. One further upcharge remains quote-on-request: prefix H for the 2-1/2" clearance variant.
This item is made to order.
Technical Specifications
| Model | Don-Jo 17 (back-to-back pair) |
| Type | 3/4" Round Bar Door Pull, back-to-back pair |
| Quantity Supplied | Two pulls -- one for each face of the door |
| Handle Diameter | 3/4" |
| Center to Center | 10" |
| Overall Length | 10-3/4" |
| Projection | 2-1/4" |
| Clearance | 1-1/2" |
| ANSI/BHMA | A156.6 — J401 |
| Mounting | Back-to-back (Don-Jo Method 3) — 1/4-20 with set screw |
| Finishes Carried | 605, 606, 613, 629, 630 |
| Ship Weight | 3.2 lb (both pulls) |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze or US32 - Polished Stainless Steel |
| Brand | Don-Jo |
| Pull Handle Mounting Types | Type 16 (1/4"-20) |
| Pulls Mounting Types | Type 16 - Back To Back Mounting |
| Center to Center Distance | 10" CTC |
| Pull Handle Overall Length | 10-3/4" |
| Handle Diameter | 3/4" |
