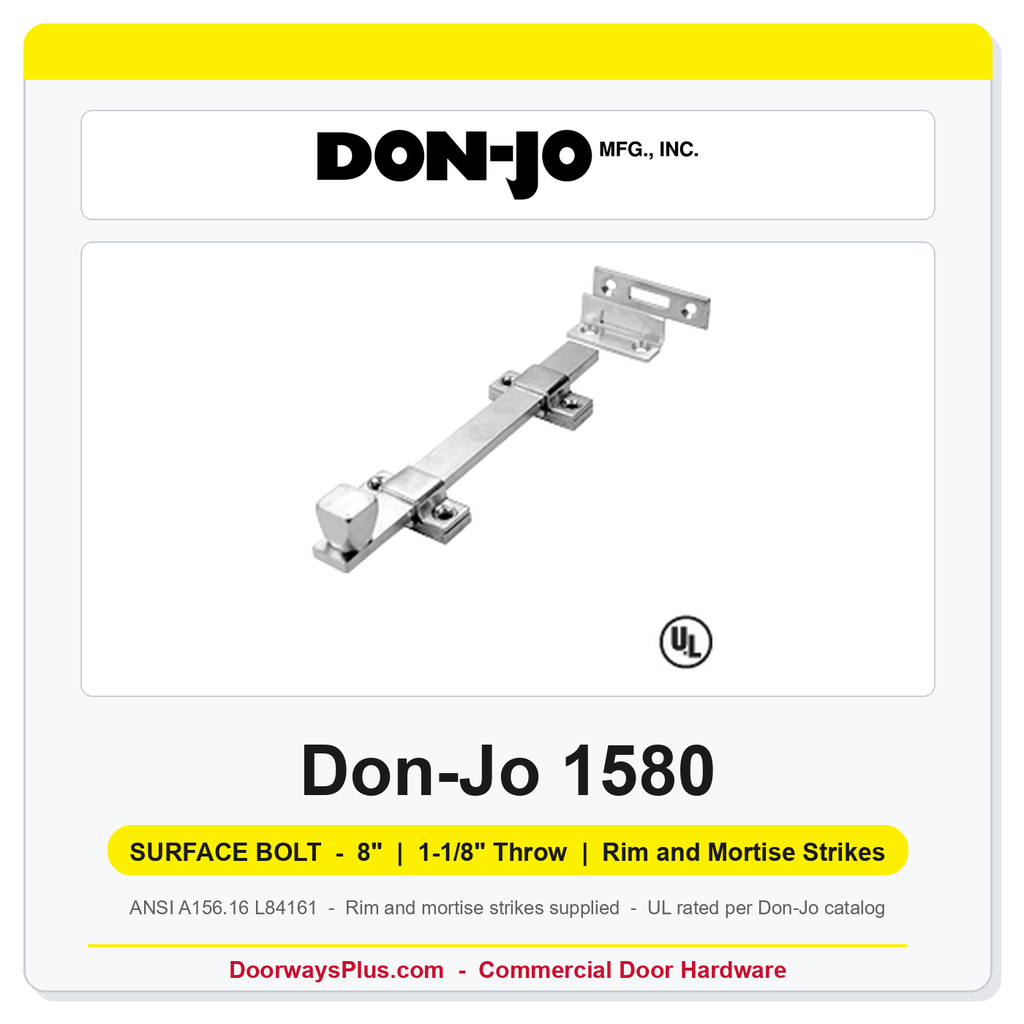

Don-Jo 1580 Surface Bolt
The Don-Jo 1580 is an 8" surface bolt. The bolt runs in two surface-mounted guides and throws into a rim or mortise strike; 1-1/8" bolt throw.
UL-rated per the Don-Jo catalog and furnished with rim and mortise strikes. Surface bolts secure the inactive leaf of a pair, or a single door from one side, where a flush bolt is not practical. For a keyed version see the Don-Jo 1579; for a non-rated utility bolt see the 1582.
Specification highlights
- 8" bolt, surface guides.
- Rim and mortise strikes supplied.
- ANSI/BHMA A156.16 L84161.
- Fasteners supplied (per the Don-Jo catalog).
Ordering notes
Order as number + finish. This item is made to order.
Technical Specifications
| Model | Don-Jo 1580 |
| Type | Surface Bolt |
| Material | Steel |
| Length | 8" |
| ANSI/BHMA | A156.16 — L84161 |
| Listing | UL rated (Don-Jo catalog) |
| Finishes Carried | 605, 613 |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US3 - Polished Brass or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Length | 8 Inch |
| Bolt Type | Surface Bolt - Industrial |
