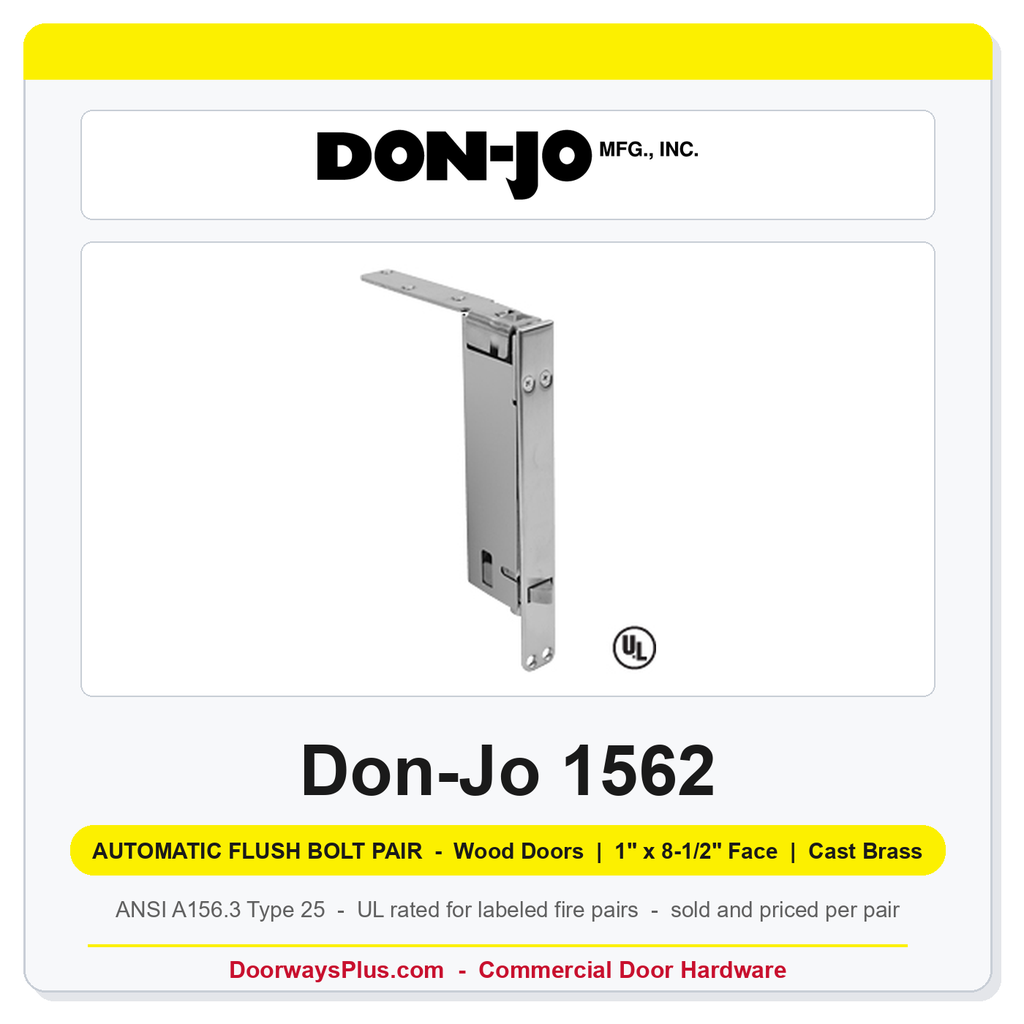

Don-Jo 1562 Automatic Flush Bolt Pair
The Don-Jo 1562 is a pair of automatic flush bolts for fire-rated wood doors. Mortised into the edge of the inactive leaf, the bolts throw into the head and sill when the active leaf closes and retract when it opens, so the pair always latches without anyone operating the inactive door.
Automatic flush bolts are what the code requires where a labeled pair cannot rely on manual bolts. The 1562 is listed for wood doors labeled B, C, D and E, is non-handed, and needs only 5 lb of force (ADA). Pair it with a dust proof strike in the floor.
Specification highlights
- 1" x 8-1/2" face plate; 15/16" x 2-1/4" frame strike; 1" x 6-1/16" guide.
- UL rated, ANSI/BHMA A156.3 Type 25; 3/4" vertical bolt adjustment.
- Sold and priced as a pair, cast brass.
- Fasteners supplied (per the Don-Jo catalog).
Ordering notes
Order as number + finish. Priced per pair as sold by Don-Jo. This item is made to order.
Technical Specifications
| Model | Don-Jo 1562 |
| Type | Automatic Flush Bolt Pair |
| Material | Cast Brass |
| Face Plate | 1" x 8-1/2" |
| Frame Strike | 15/16" x 2-1/4" |
| Guide | 1" x 6-1/16" |
| ANSI/BHMA | A156.3 — Type 25 |
| Fire Rating | UL rated |
| Door | Wood Door |
| Finishes Carried | 605, 613, 626 |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US26D - Satin Chrome or US3 - Polished Brass or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Door Type | Wood Door |
| Bolt Type | Flush Bolt - Automatic |
| Fire Rated | Fire Rated |
