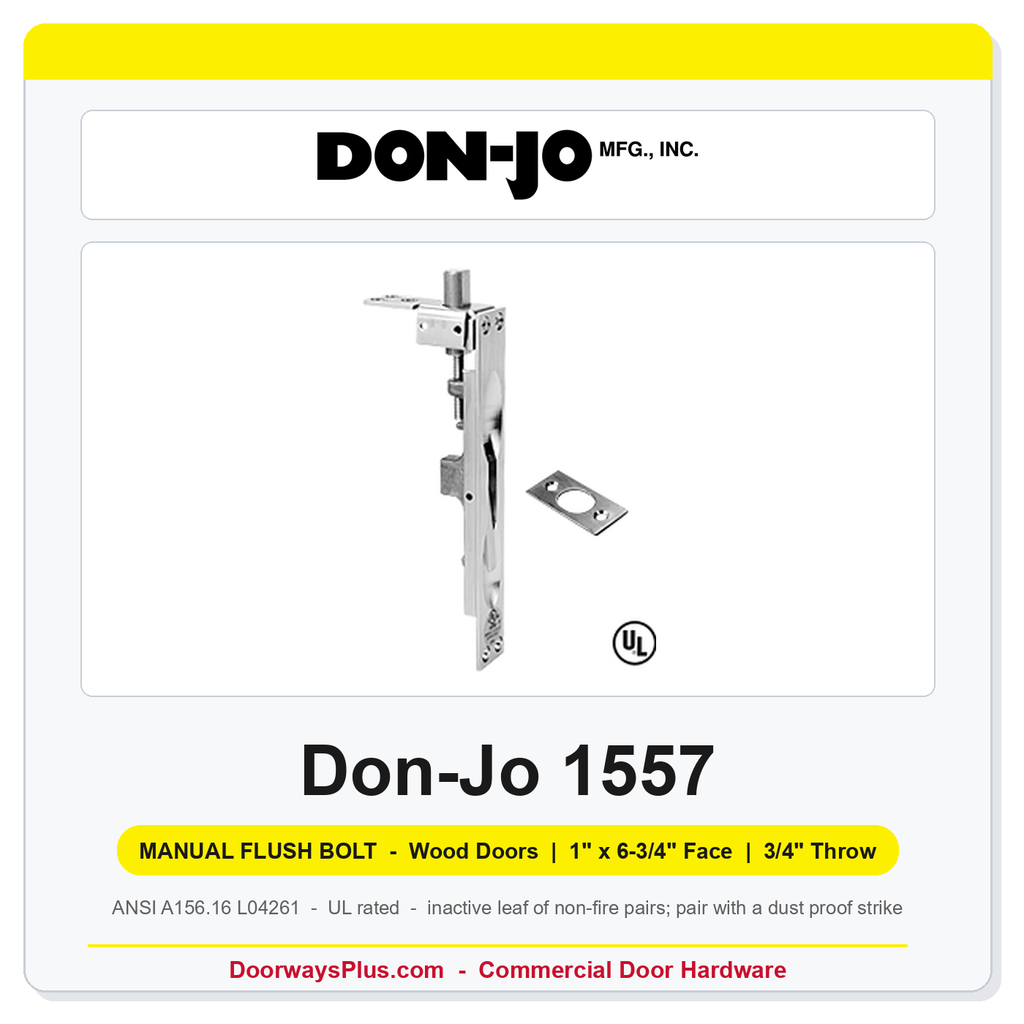

Don-Jo 1557 Manual Flush Bolt
The Don-Jo 1557 is a manual flush bolt for wood doors, mortised into the edge of the inactive leaf of a pair to bolt it into the head and sill. 3/4" throw, 3/4" backset; the door’s strength is maintained by a corner reinforcement plate.
Use manual flush bolts on non-fire pairs where the inactive leaf stays fixed most of the time. On a labeled fire pair use the automatic version (Don-Jo 1560 metal / 1562 wood). Pair with a dust proof strike in the floor.
Specification highlights
- 1" x 6-3/4" face plate; 15/16" x 2-1/4" strike.
- ANSI/BHMA A156.16 L04261, UL rated.
- Cast brass, 6 finishes carried.
- Fasteners supplied (per the Don-Jo catalog).
Ordering notes
Order as number + finish. This item is made to order.
Technical Specifications
| Model | Don-Jo 1557 |
| Type | Manual Flush Bolt |
| Material | Cast Brass |
| Face Plate | 1" x 6-3/4" |
| Bolt Throw | 3/4" |
| Frame Strike | 15/16" x 2-1/4" |
| ANSI/BHMA | A156.16 — L04261 |
| Fire Rating | UL rated |
| Door | Wood Door |
| Finishes Carried | 605, 606, 612, 613, 625, 626 |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Length | 6-3/4" Inch |
| Door Type | Wood Door |
| Bolt Type | Flush Bolt - Manual |
| Fire Rated | Fire Rated |
