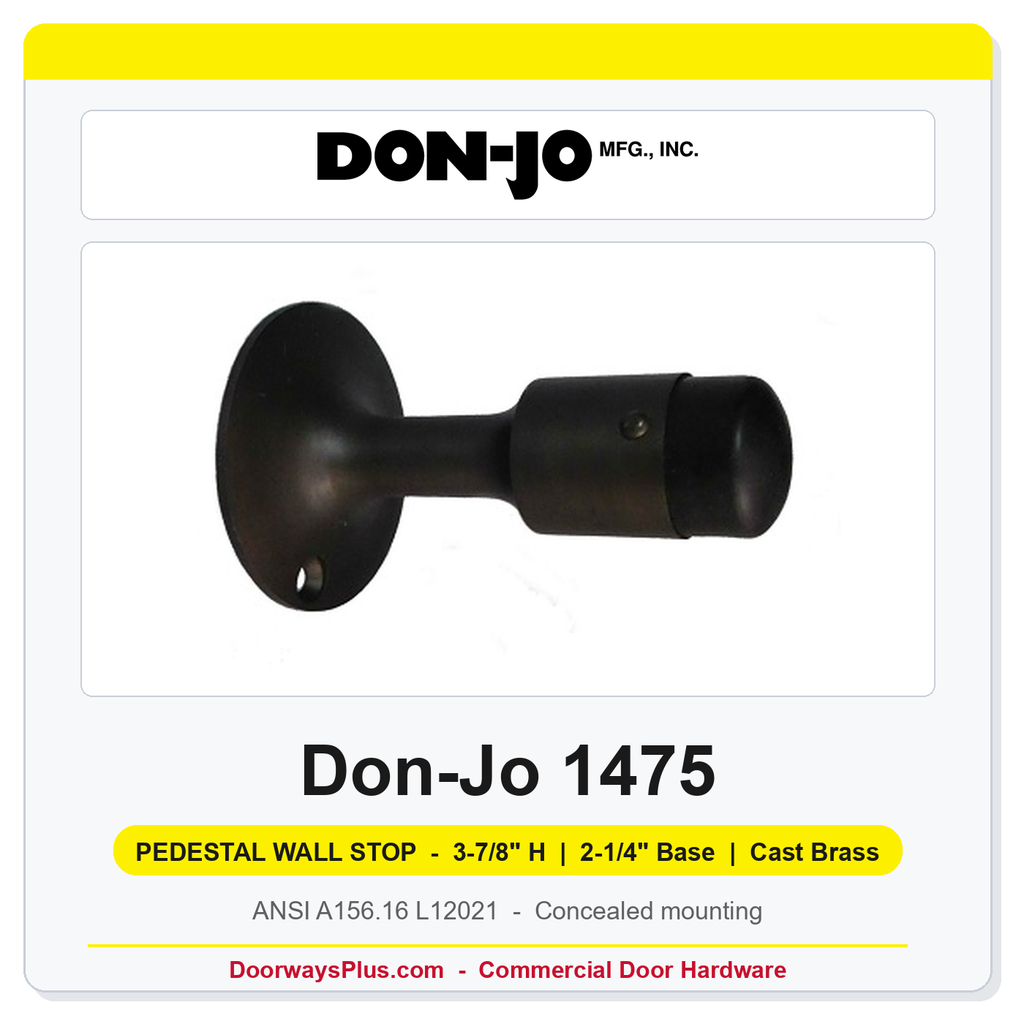

Don-Jo 1475 Pedestal Wall Stop
The Don-Jo 1475 is a pedestal wall-mounted door stop in cast brass, 3-7/8" high on a 2-1/4" base.
Wall stops are the standard way to limit a door's swing on commercial openings; choose the height by the door undercut and where the door should meet the stop. Mount with the supplied fasteners into the wall.
Specification highlights
- Cast Brass, 3-7/8" high.
- ANSI/BHMA A156.16 L12021.
- Concealed mounting — the odd-numbered Don-Jo pedestal stop; the even number is the surface-mounted version.
- Fasteners supplied for the mounting shown in the specification table.
Ordering notes
Order as number + finish. A stop limits the swing; a holder holds the door open — do not substitute one for the other on a schedule. This item is made to order.
Technical Specifications
| Model | Don-Jo 1475 |
| Type | Pedestal Wall Stop |
| Material | Cast Brass |
| Height | 3-7/8" |
| Base | 2-1/4" |
| Mounting | Concealed mount |
| ANSI/BHMA | A156.16 — L12021 |
| Fasteners Supplied | 1 ea. 5/16-18 x 2-5/8" MS Stud, 1 ea. 1/16-18 x 2-5/8" SMS Stud, 1 ea. #10 x 1" SMS, 1 ea. Plastic Anchor, 1 ea. Lead Expansion Shield |
| Finishes Carried | 605, 613 |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US3 - Polished Brass or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Stop Type | Wall Stop |
