Don-Jo 147 Push Bar

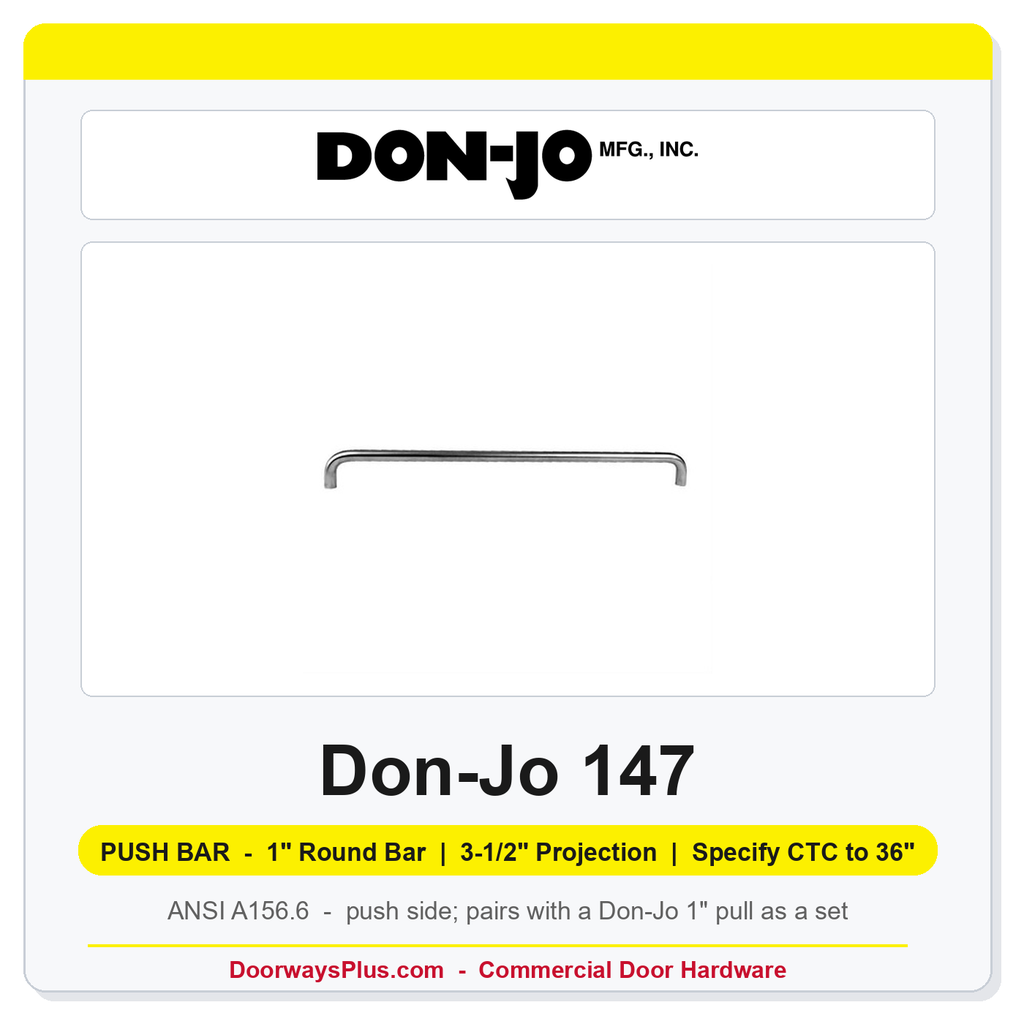

The Don-Jo 147 is a 1" solid round bar push bar for the push side of a corridor, restroom or back-of-house door. It is made to the center-to-center dimension you specify, with 3-1/2" projection and 2-3/8" clearance behind the bar.
Specification highlights
- 1" diameter solid bar, 3-1/2" projection, 2-3/8" hand clearance.
- Center-to-center specified at order. The price shown covers any CTC up to 36"; Don-Jo publishes a per-inch adder beyond 36", quoted on request.
- Mounting specified at order — thru-bolt, back-to-back or concealed per Don-Jo's published methods. Pair it with a Don-Jo door pull for a push/pull set (see the 19147 through 1170147 set listings).
Ordering notes
Order as 147 + finish and state the CTC and mounting method in the order notes. This item is made to order.
Technical Specifications
| Model | Don-Jo 147 |
| Type | Push Bar |
| Bar Diameter | 1" |
| Projection | 3-1/2" |
| Clearance | 2-3/8" |
| Center to Center | Specified at order — base price covers CTC up to 36" |
| Mounting | Specified at order (Don-Jo mounting methods) |
| ANSI/BHMA | A156.6 |
| Finishes Carried | 605, 606, 613, 628, 629, 630 |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US28 - 628/ Anodized Aluminum or US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze or US32 - Polished Stainless Steel |
| Brand | Don-Jo |
| Handle Diameter | 1" |
