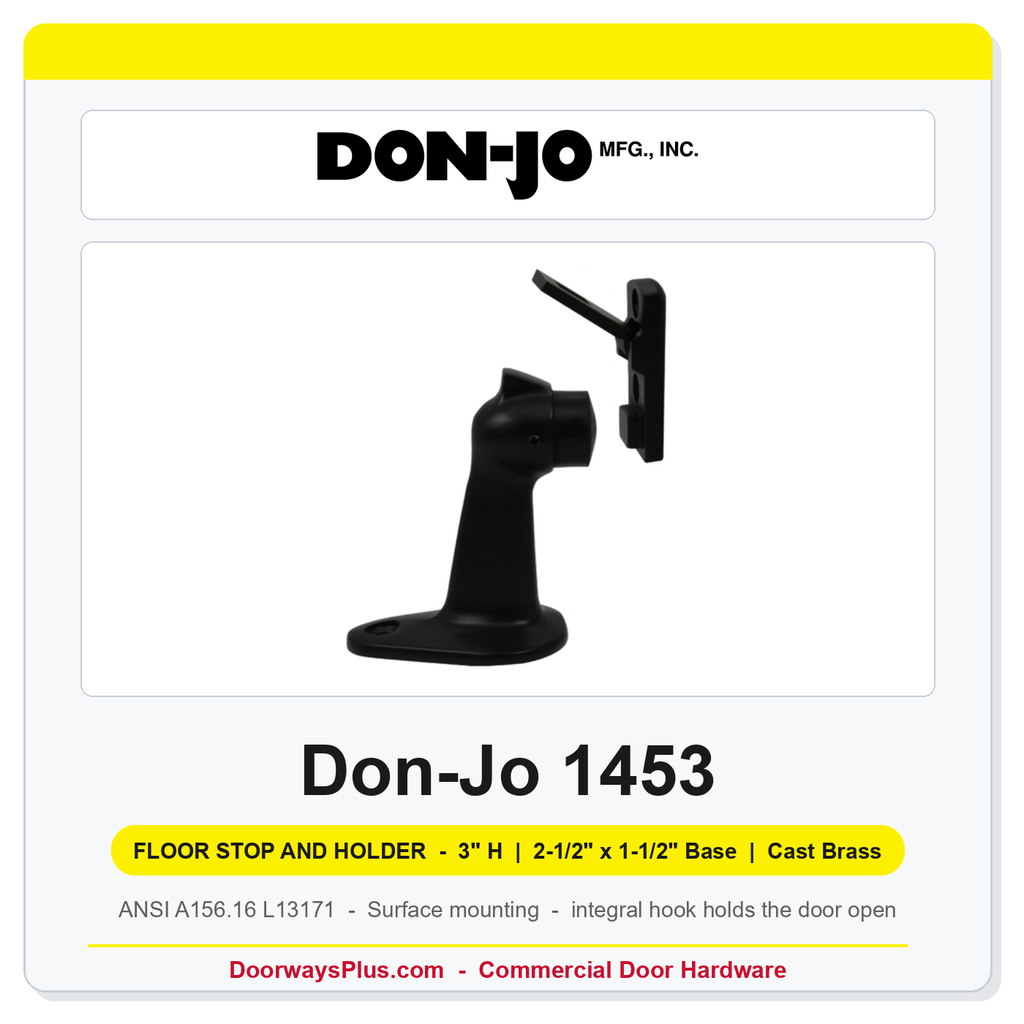

Don-Jo 1453 Floor Stop and Holder
The Don-Jo 1453 is a floor-mounted door stop in cast brass, 3" high on a 2-1/2" x 1-1/2" base with an integral hook to hold the door open.
Floor stops are the standard way to limit a door's swing on commercial openings; the hook holds the door open when wanted and is a mechanical holder, not an alarm-released hold-open. Mount with the supplied fasteners into the floor.
Specification highlights
- Cast Brass, 3" high.
- ANSI/BHMA A156.16 L13171.
- Fasteners supplied for the mounting shown in the specification table.
Ordering notes
Order as number + finish. A stop limits the swing; a holder holds the door open — do not substitute one for the other on a schedule. This item is made to order.
Technical Specifications
| Model | Don-Jo 1453 |
| Type | Floor Stop and Holder |
| Material | Cast Brass |
| Height | 3" |
| Base | 2-1/2" x 1-1/2" |
| Mounting | Surface mount |
| ANSI/BHMA | A156.16 — L13171 |
| Fasteners Supplied | 1 ea. 5/16-18 x 2-5/8" MS Stud, 1 ea. 5/16-18 x 2-5/8" SMS Stud, 2 ea. #8 x 1" SMS, 1 ea. 14-20 x 1-1/4" MS, 1 ea. 1/4 x 1-1/2" SMS, 3 ea. Plastic Anchors, 1 ea |
| Finishes Carried | 605, 613, 626 |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US26D - Satin Chrome or US3 - Polished Brass or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Stop Type | Floor Stop and Holder |
| Height | 3 inch |
