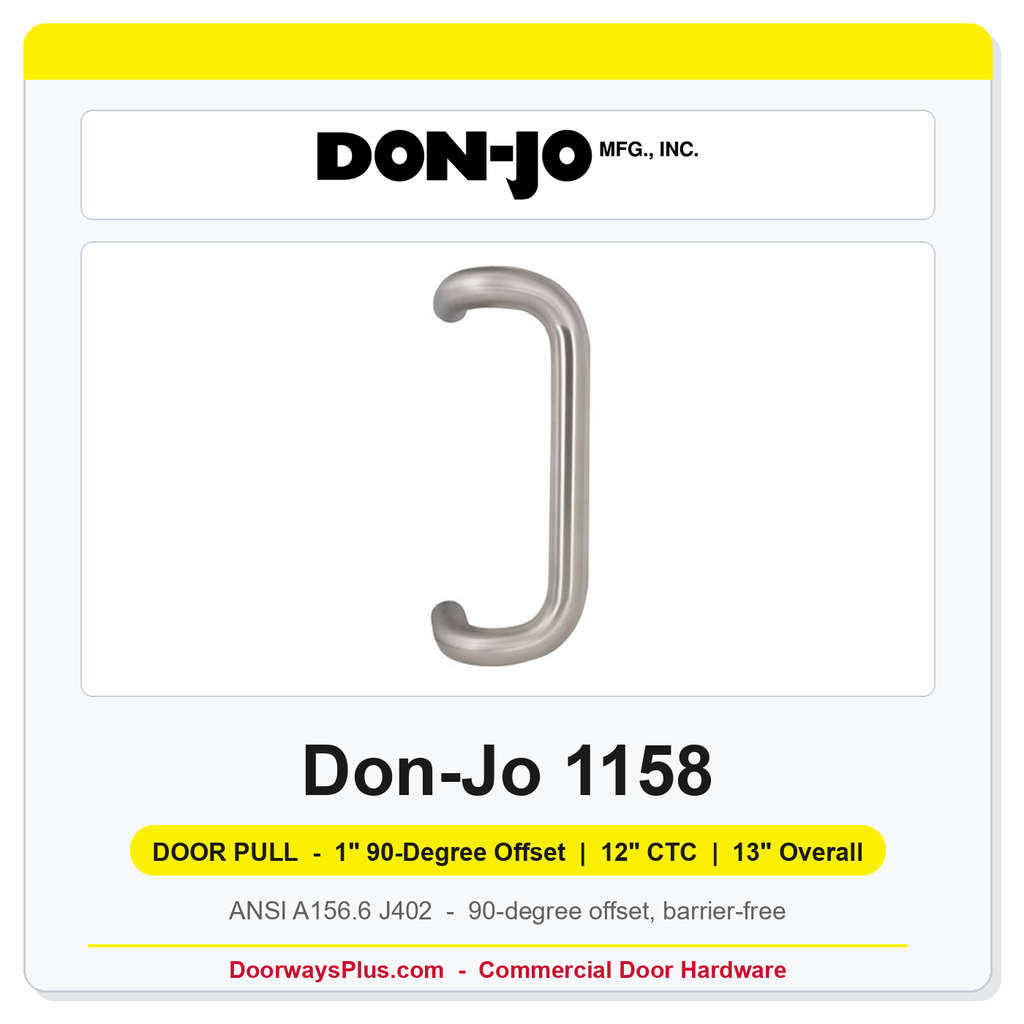

Don-Jo 1158 1" 90-Degree Offset Door Pull
The Don-Jo 1158 is a 1" 90-degree offset door pull for commercial openings, 12" center-to-center. It mounts on the pull side of the door and ships with the fasteners for the mounting method you select.
The 90-degree offset carries the grip clear of the door face, which is what makes an offset pull easier to use with a full hand or a closed fist — the reason it gets specified on barrier-free openings.
Specification highlights
- ANSI/BHMA A156.6, function J402 — the offset door pull designation.
- Overall length 13" on 12" centers.
- Projection 3-1/2", hand clearance 2-1/2".
- Seven mounting methods — thru-bolt, back-to-back and surface-concealed for wood or metal, plus dedicated glass-door methods using a 3/8-24 decorative bolt with a 5/8" plexiglass bushing and neoprene washers.
Ordering notes
Don-Jo pulls are ordered as number + finish, with the mounting method called out separately. Back-to-back mounting is selectable above — it pairs a matching pull on the opposite face of the door and is priced per the price book at double the pull plus $5.00 net, so the price updates when you choose it. One further upcharge remains quote-on-request: prefix H for the 2-1/2" clearance variant.
This item is made to order.
Technical Specifications
| Model | Don-Jo 1158 |
| Type | 1" 90-Degree Offset Door Pull |
| Handle Diameter | 1" |
| Center to Center | 12" |
| Overall Length | 13" |
| Projection | 3-1/2" |
| Clearance | 2-1/2" |
| Offset | 90 degrees |
| ANSI/BHMA | A156.6 — J402 |
| Mounting | Thru-bolt, back-to-back, surface concealed or concealed (Don-Jo Methods 1-7) |
| Finishes Carried | 313, 315, 605, 613, 628, 629, 630 |
| Lead Time | 3–10 business days (made to order) |
| General - US Finishes | US28 - 628/ Anodized Aluminum or US32D - Satin Stainless Steel/ 630 or 313 - Dark Bronze Anodized or US3 - Polished Brass or US10B - Oil Rubbed Bronze or US32 - Polished Stainless Steel or 315 - Black Anodized Aluminum |
| Brand | Don-Jo |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Center to Center Distance | 12" CTC |
| Pull Handle Overall Length | 13" |
| Handle Diameter | 1" |
