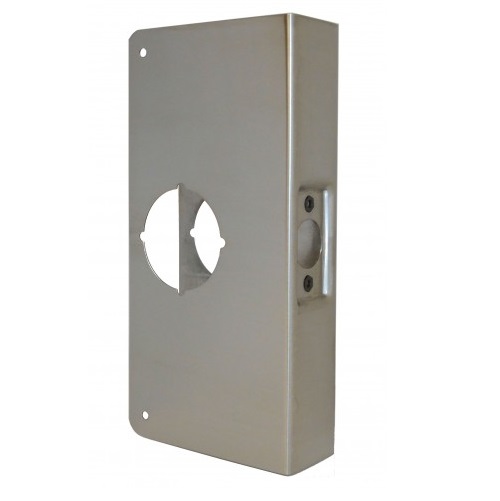

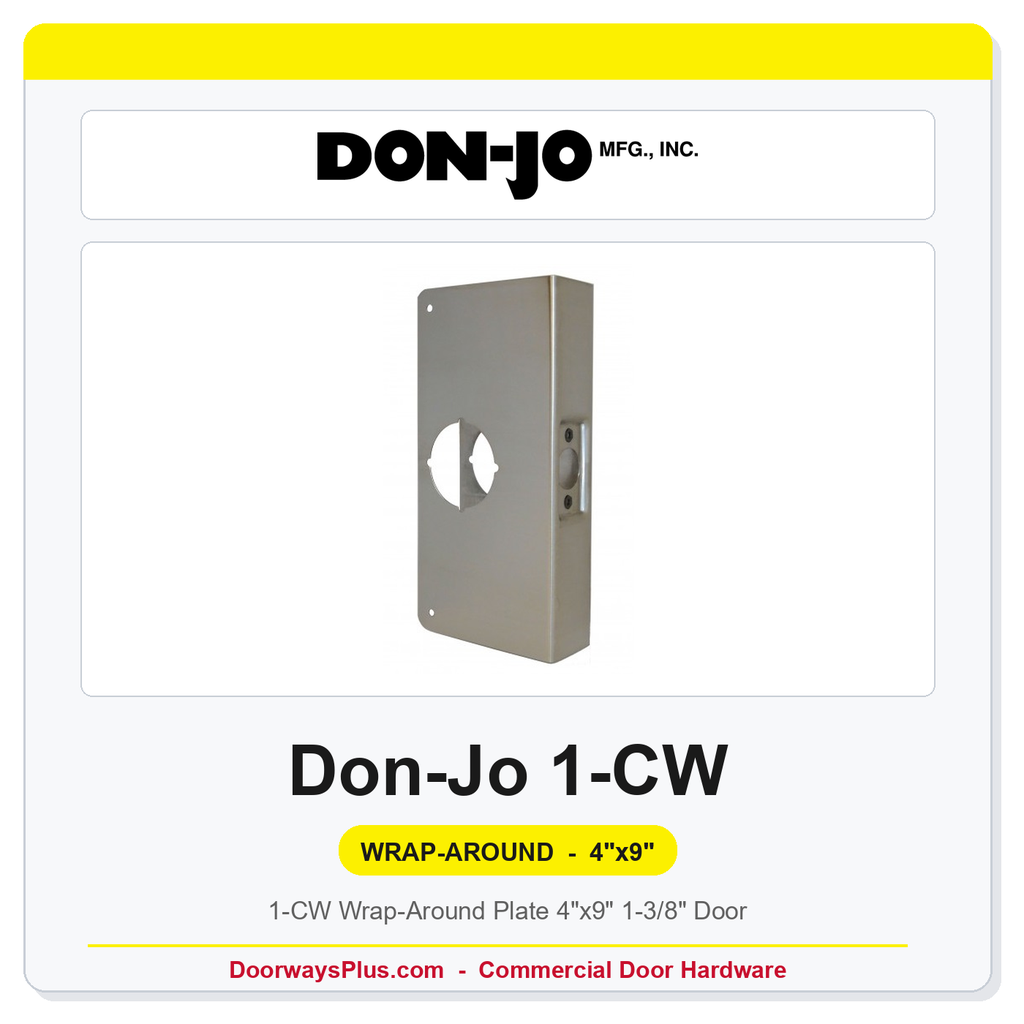

Don-Jo 1-CW Stainless Steel Wrap-Around Plate | 1-3/8" Residential Door Reinforcer

The Don-Jo 1-CW Stainless Steel Wrap-Around Plate is a high-performance security and restoration solution designed specifically for thinner 1-3/8" thick doors. Measuring 4" wide x 9" high, this heavy-duty door reinforcer is engineered to provide 360-degree protection for the lock area while concealing surface damage, splintering, or "ghosting" from previous hardware. It is the premier solution for door surface repair for residential interior doors or light-commercial entryways that utilize a standard cylindrical lockset.

Precision-manufactured with a 2-1/8" hole prep, the 1-CW is optimized for hardware with a 2-3/8" backset. By "sandwiching" the door edge and both faces in rigid steel, it serves as a critical solution for door security, preventing the door from splitting during a forced entry attempt or under heavy daily use.

Key Features & Performance

• 1-3/8" Door Specific: Tailor-made to fit the thinner profile of residential and light-commercial doors, ensuring a snug, flush fit that does not interfere with the door stop or weatherstripping.
• Standard 2-3/8" Backset: Features a factory-punched 2-1/8" bore positioned exactly 2-3/8" from the edge, making it a "drop-in" upgrade for the most common residential lock configurations.

• Professional Restoration: Acts as an architectural remodeling scar plate, hiding unsightly mounting marks, oversized holes, or finish wear left behind by old knobs and levers.
• Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, offering superior corrosion resistance and a modern, professional finish that matches high-end hardware.

• Structural Reinforcement: Strengthens the lock area to prevent "kicked-in" door failures and provides a permanent solution for door edge reinforcement.

Technical Details & Specifications

• Brand: Don-Jo
• Model Number: 1-CW
• Overall Size: 4" Width x 9" Height

• Door Thickness: 1-3/8"
• Backset: 2-3/8"
• Hole Prep: 2-1/8" Standard Cylindrical

• Material: Heavy-Gauge Stainless Steel
• Finish: US32D/630 (Satin Stainless Steel)

• Installation: Includes all necessary mounting fasteners. For enhanced stability, the lockset's own thru bolts or mounting screws secure the assembly firmly to the door leaf.

Why Choose the Don-Jo 1-CW?

The Don-Jo 1-CW is the industry-standard "problem-solver" for repairing and securing thinner doors. Often, 1-3/8" doors are more susceptible to cracking or being easily bypassed; this stainless steel wrap plate adds the structural integrity of a commercial opening to your existing door. It is a cost-effective and permanent solution for door restoration, providing a secure, attractive mounting surface that extends the life of your hardware and your home's security.

​

Finishes carried

Select the finish above. This Don-Jo plate is offered in:

• 630 satin stainless steel (S)
• 613 oil-rubbed bronze (10B)
• 605 bright brass (PB)
• 609 satin brass, blackened (AB)
• 612 satin bronze (BZ)

Finish names follow ANSI/BHMA A156.18 and Don-Jo's letter codes. The material and finish statements above describe the 630 satin stainless steel version; the other finishes are Don-Jo's finish codes on the same 22-gauge (.032") wrap-around.
