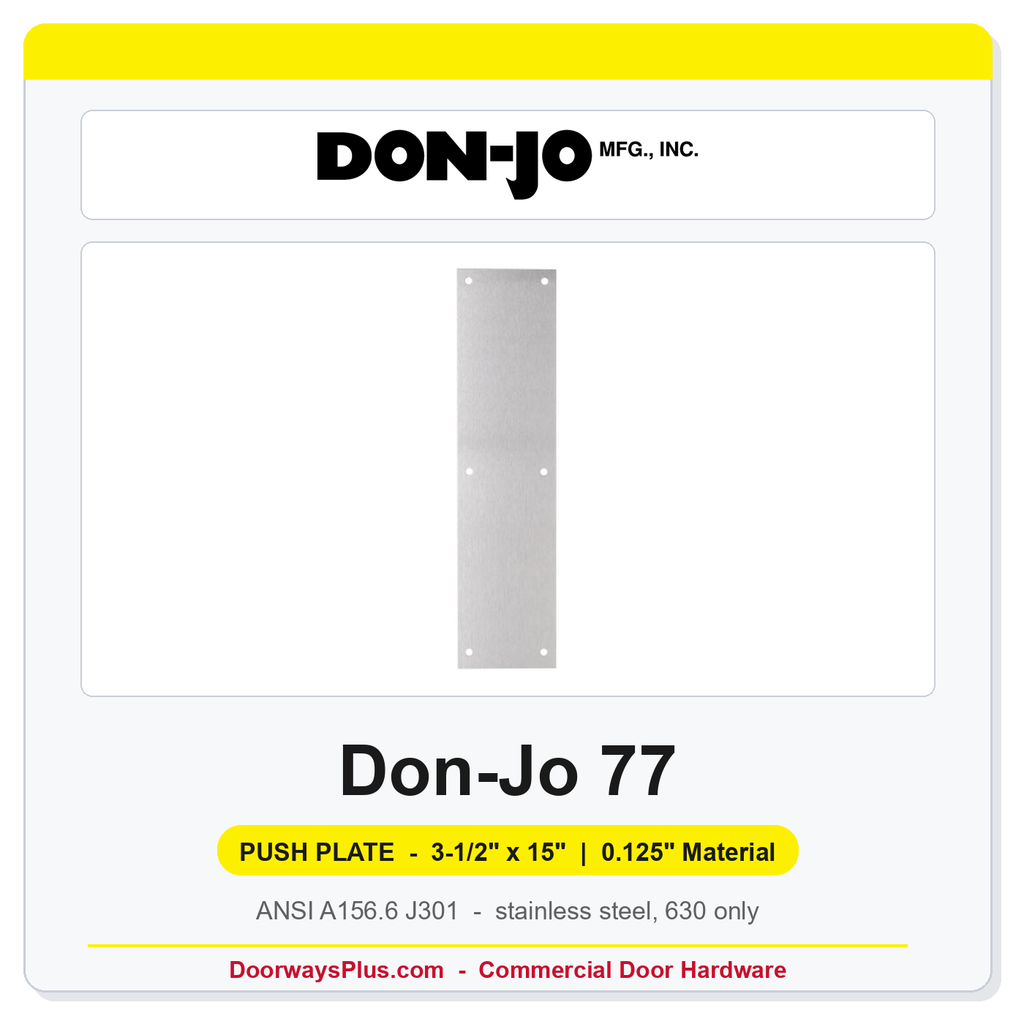

Don-Jo 77 Push Plate — 3.5" x 15" x 0.125"
The Don-Jo 77 is a commercial push plate measuring 3.5" wide by 15" high in 0.125" material, certified to ANSI/BHMA A156.6 J301. It is the standard push plate for a non-latching door — corridor, restroom, and back-of-house openings.
Where it fits
Push plates protect the door face from hand contact and finger soiling at the point of daily use. Match the plate width to the door stile: a wider plate takes a full hand, a narrower one suits a tight stile or a narrow-lite door.
Specification highlights
- ANSI/BHMA A156.6, function J301 — the push-plate designation architects specify.
- 0.125" material — the standard-duty gauge across the Don-Jo 69–73 series.
- 1 finishes carried, from polished brass through satin chrome and satin stainless.
Ordering notes
Don-Jo push plates are ordered as number + size + finish. The 0.125" series is offered in aluminum, brass, bronze, stainless steel, or plastic depending on finish; the 1/8" series is stainless steel in 630 only. If the heavier 1/8" plate is more than the opening needs, the Don-Jo 70 is the .050" equivalent in this same 3.5" x 15" size and is offered in the full finish range.
This item is made to order.
Technical Specifications
| Model | Don-Jo 77 |
| Type | Push plate |
| Dimensions | 3.5" W x 15" H |
| Material Thickness | 0.125" |
| Material | Aluminum, brass, bronze, stainless steel or plastic by finish |
| ANSI/BHMA | A156.6 — J301 |
| Finishes Carried | 630 |
| Heavier Equivalent | Don-Jo 70 (.125" stainless steel, 630) |
| Lead Time | 3–10 business days (made to order) |
| Brand | Don-Jo |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Plate Height | 15" |
| Plate Width | 3.5" |
| Plate Material Gauge | 0.125" |
