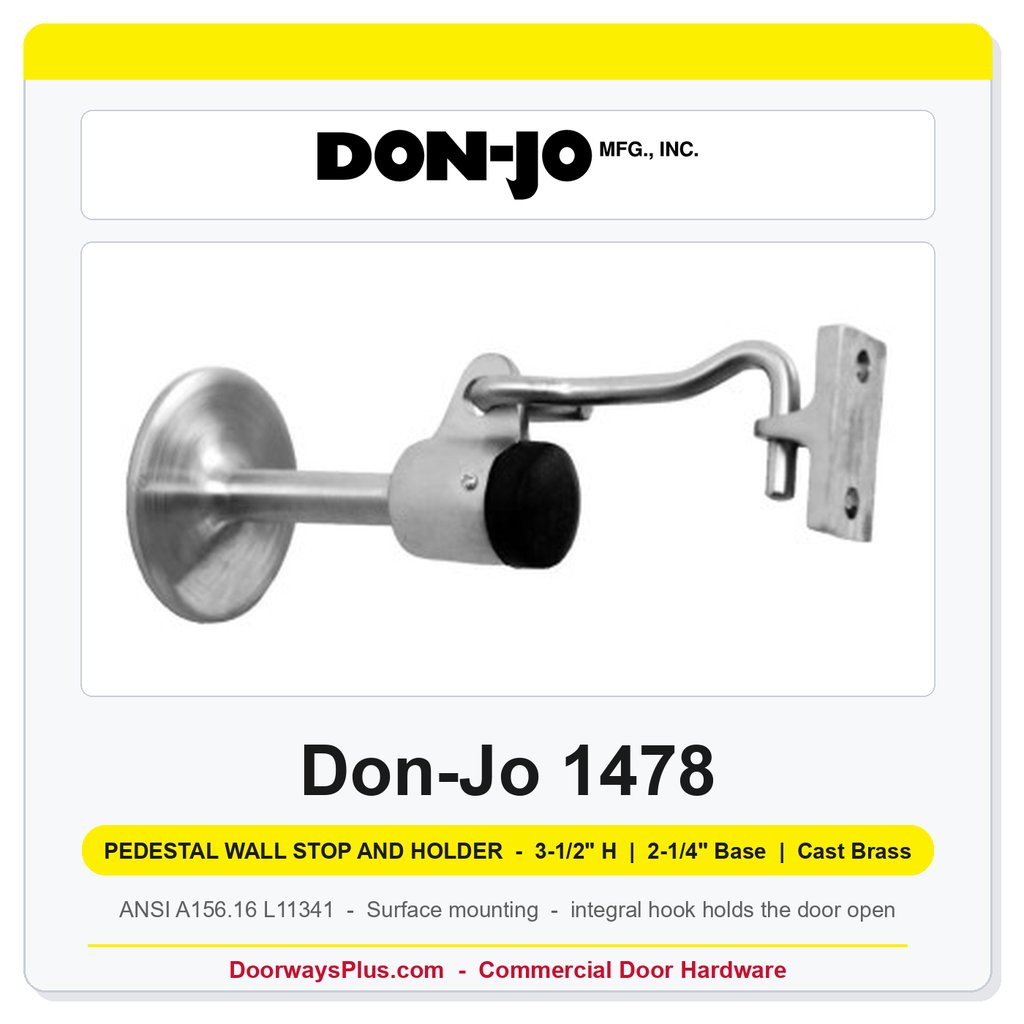

Don-Jo 1478 Pedestal Wall Stop and Holder
The Don-Jo 1478 is a pedestal wall-mounted door stop in cast brass, 3-1/2" high on a 2-1/4" base with an integral hook to hold the door open.
Wall stops are the standard way to limit a door's swing on commercial openings; the hook holds the door open when wanted and is a mechanical holder, not an alarm-released hold-open. Mount with the supplied fasteners into the wall.
Specification highlights
- Cast Brass, 3-1/2" high.
- ANSI/BHMA A156.16 L11341.
- Surface mounting — the even-numbered Don-Jo pedestal stop; the odd number is the concealed version.
- Fasteners supplied for the mounting shown in the specification table.
Ordering notes
Order as number + finish. A stop limits the swing; a holder holds the door open — do not substitute one for the other on a schedule. This item is made to order.
Technical Specifications
| Model | Don-Jo 1478 |
| Type | Pedestal Wall Stop and Holder |
| Material | Cast Brass |
| Height | 3-1/2" |
| Base | 2-1/4" |
| Mounting | Surface mount |
| ANSI/BHMA | A156.16 — L11341 |
| Fasteners Supplied | 5 ea. #10 x 1" SMS, 3 ea. Plastic Anchors, Surface Mount |
| Finishes Carried | 626 |
| Lead Time | 3–10 business days (made to order) |
| Brand | Don-Jo |
| General - US Finishes | US26D - Satin Chrome |
| Stop Type | Wall Stop and Holder |
| Height | 3-1/2 inch |
