Don-Jo 1170147 Push & Pull Bar Set | 1" C-Shaped Pull 12" CTC + 147 Push Bar
Don-Jo 1170147 push & pull bar set: 1170 1" c-shaped door pull, 12" CTC, with 147 push bar (1" round bar, CTC specified at order, priced to 36"), back-to-back mounting, pull ANSI A156.6 J402.
**** Lead Time: 3-10 Business Days ****

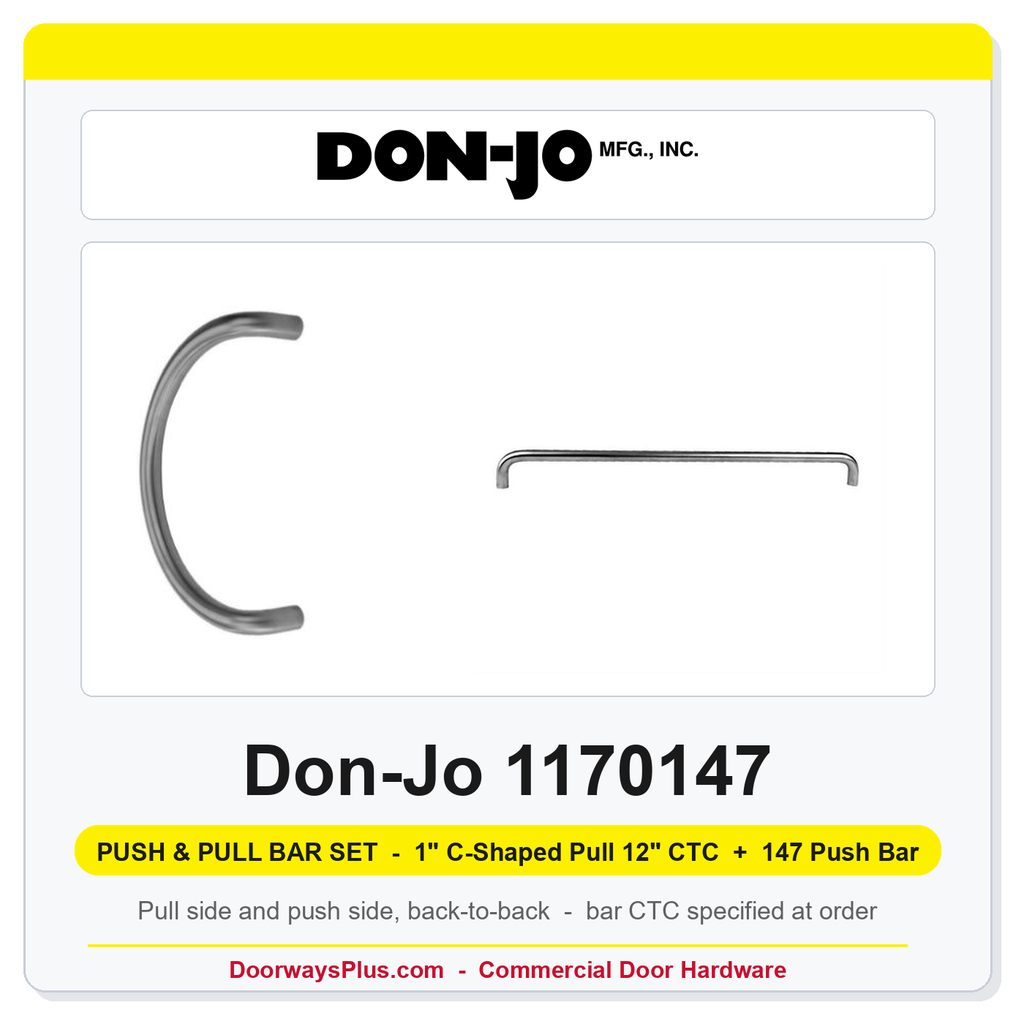

Don-Jo 1170147 Push & Pull Bar Set
The Don-Jo 1170147 pairs the 1170 1" c-shaped door pull (12" center-to-center) on the pull side with the 147 push bar on the push side, mounted back-to-back through the door. It is the complete push/pull hardware for a non-latching corridor, restroom or back-of-house door, in one part number.
Specification highlights
- Pull: Don-Jo 1170, 1" diameter, 12" CTC, 13" overall, 3" projection.
- Push bar: Don-Jo 147, 1" solid round bar, 3-1/2" projection. Its center-to-center is specified at order; the price covers up to 36", with Don-Jo's per-inch adder beyond that quoted on request.
- Matched finish on both components.
Ordering notes
Order as 1170147 + finish and state the push-bar CTC and door thickness in the order notes. The pull and the bar are also sold separately (Don-Jo 1170 and Don-Jo 147). This item is made to order.
Technical Specifications
| Model | Don-Jo 1170147 |
| Type | Push & Pull Bar Set |
| Pull | Don-Jo 1170 1" C-Shaped Door Pull |
| Pull Center to Center | 12" |
| Pull Overall Length | 13" |
| Pull Projection | 3" |
| Pull Clearance | 2" |
| Pull ANSI/BHMA | A156.6 — J402 |
| Push Bar | Don-Jo 147, 1" solid round bar |
| Push Bar Center to Center | Specified at order — priced to 36" |
| Push Bar Projection / Clearance | 3-1/2" / 2-3/8" |
| Mounting | Pull and bar mount back-to-back through the door; specify at order |
| Finishes Carried | 630 |
| Lead Time | 3–10 business days (made to order) |
| Brand | Don-Jo |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Center to Center Distance | 12" CTC |
| Pull Handle Overall Length | 13" |
| Handle Diameter | 1" |
