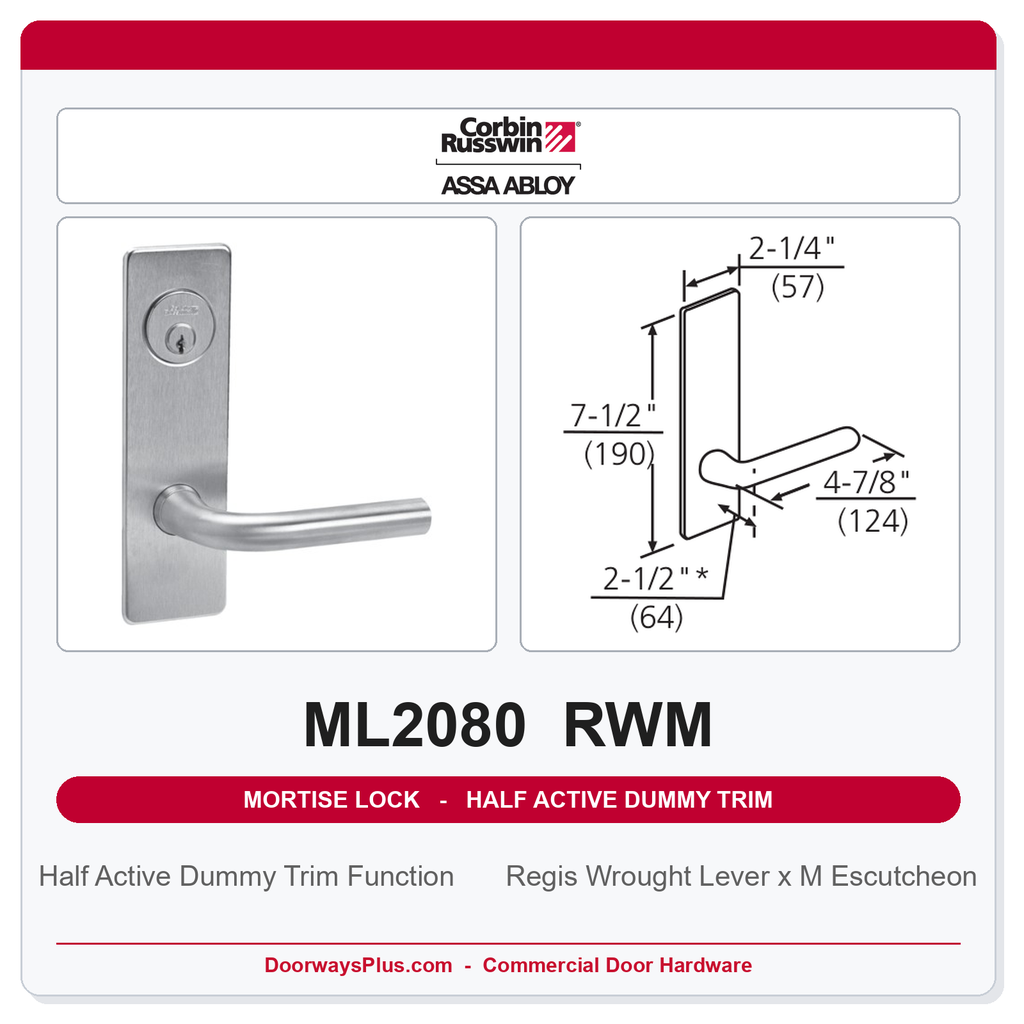

Corbin Russwin ML2080 RWM Half Active Dummy Trim

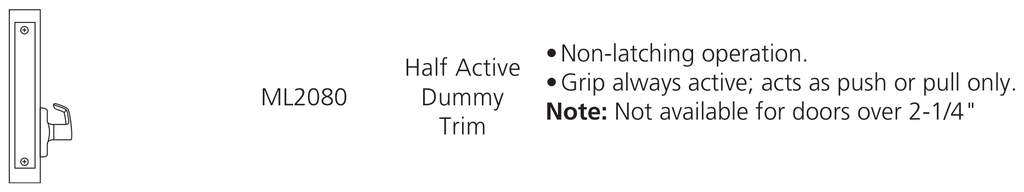

Lock Operation Detailed
- Non-latching operation.
- Grip always active; acts as push or pull only.
- Note: Not available for doors over 2-1/4".
The Corbin Russwin ML2080 RWM is a heavy-duty Grade 1 mortise dummy trim on Regis Wrought Lever x M Escutcheon (RWM) trim. It is built on the ML2000 Series platform and is certified to A156.13 Series 1000, Operational and Security Grade 1.
Half Active Dummy Trim Function -- What It Means
The Half Active Dummy Trim function is half active dummy trim. The catalog prints non-latching operation. The grip is always active and acts as a push or pull only. There is no latchbolt and no cylinder. This function is not available for doors over 2-1/4".
Institutional Grade Features & Benefits
- Pull only: the grip is a matching dummy pull. It does not retract a latch.
- Non-latching: the grip moves as a push or pull. There is no latchbolt.
- Door thickness: not available for doors over 2-1/4".
- Grade 1 certified: Certified A156.13 Series 1000, Operational and Security Grade 1.
- Field handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case; see page 87.
- Warranty: Ten-year mechanical warranty.
Typical Applications
The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
- Commercial applications
- Institutional applications
- Industrial applications
- Government applications
This half active dummy trim listing is specified on openings that need active dummy trim that pushes or pulls without a latch in those settings.
Technical Details
| Feature | Details |
|---|---|
| Model Number | ML2080 RWM |
| Function | Half Active Dummy Trim |
| Series | Corbin Russwin ML2000 |
| Certification | Certified A156.13 Series 1000, Operational and Security Grade 1. |
| Accessibility | Meets A117.1 Accessibility Code. |
| Handing | Handed; quick reversible. The lockset can be re-handed without disassembling the lock case; see page 87. |
| Door Thickness | 1-3/4" (44mm) standard. Optional door thicknesses available; see Quick Codes, page 81. |
| Trim | Regis Wrought Lever x M Escutcheon |
| Warranty | Ten-year mechanical warranty. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel or 722 - Black Oxidized Bronze, Oil Rubbed |
| Brand | Corbin Russwin |
| Trim Design | RWM |
| Series | Corbin Russwin - ML2000 Series |
| Door Handing | Field Reversible |
