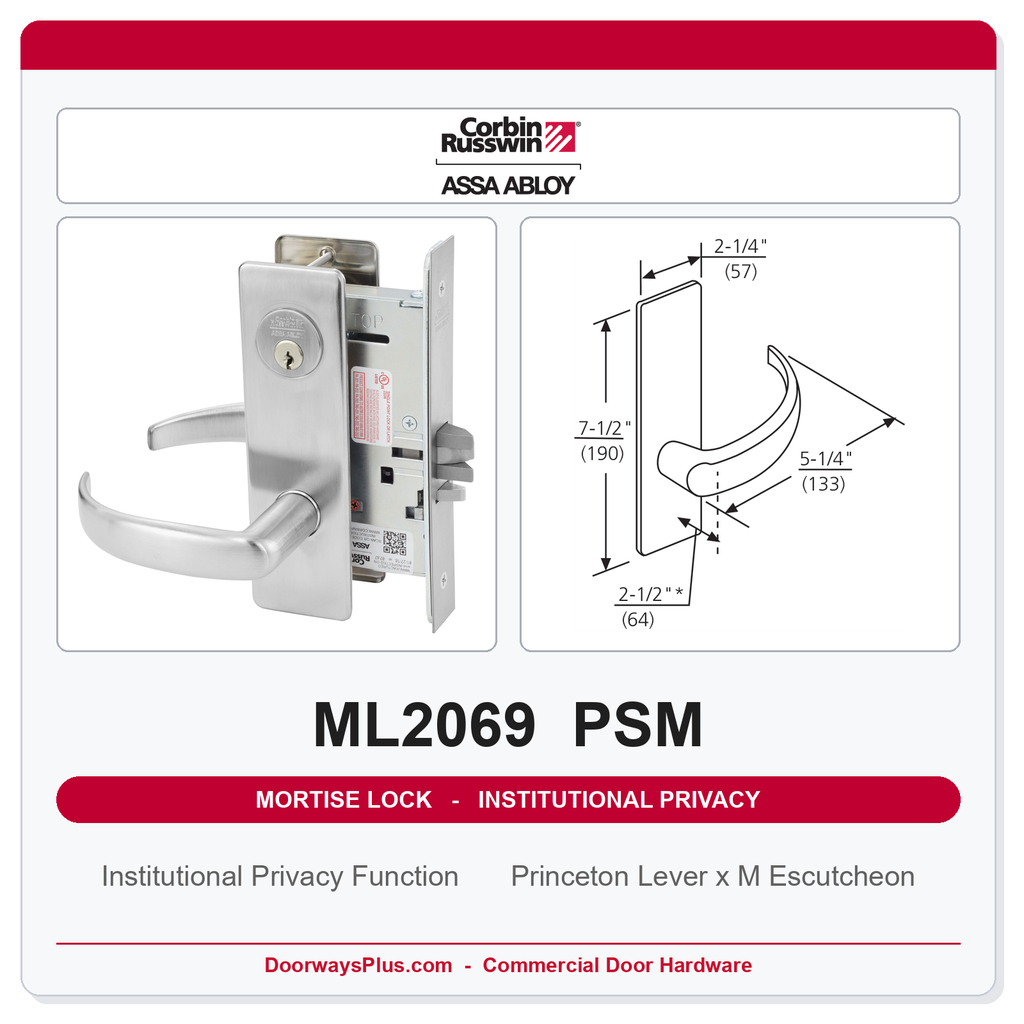

Corbin Russwin ML2069 PSM Institutional Privacy Mortise Lockset

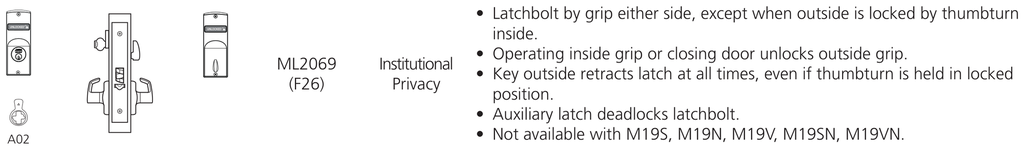

Lock Operation Detailed
- Latchbolt by grip either side, except when outside is locked by thumbturn inside.
- Operating inside grip or closing door unlocks outside grip.
- Key outside retracts latch at all times, even if thumbturn is held in locked position.
- Auxiliary latch deadlocks latchbolt.
- Not available with M19S, M19N, M19V, M19SN, M19VN.
The Corbin Russwin ML2069 PSM is a heavy-duty Grade 1 Institutional Privacy mortise lockset on Princeton Lever x M Escutcheon (PSM) trim. It is built on the ML2000 Series platform and is certified to A156.13 Series 1000, Operational and Security Grade 1.
Institutional Privacy Function -- What It Means
The Institutional Privacy function (ANSI/BHMA F26) locks the outside grip with a thumbturn inside. Latchbolt by grip either side except when the outside is locked by that thumbturn. Operating the inside grip or closing the door unlocks the outside grip. A key outside retracts the latch at all times, even if the thumbturn is held in the locked position. An auxiliary latch deadlocks the latchbolt when the door is closed. The catalog prints that this function is not available with M19S, M19N, M19V, M19SN, or M19VN indicators.
Institutional Grade Features & Benefits
- Inside thumbturn lock: a thumbturn inside locks the outside grip. This is not a deadbolt function.
- Key overrides a held thumbturn: a key outside retracts the latch even if the thumbturn is held locked.
- No M19 indicator: this function is not available with M19S, M19N, M19V, M19SN, or M19VN.
- Grade 1 certified: Certified A156.13 Series 1000, Operational and Security Grade 1.
- Field handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case; see page 87.
- Fire listing: UL/cUL-UL10C Positive Pressure
- Warranty: Ten-year mechanical warranty.
Typical Applications
The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
- Commercial applications
- Institutional applications
- Industrial applications
- Government applications
This institutional privacy listing is specified on institutional privacy openings where a thumbturn locks the outside and a key can still retract the latch in those settings.
Technical Details
| Feature | Details |
|---|---|
| Model Number | ML2069 PSM |
| Function | Institutional Privacy (ANSI/BHMA F26) |
| Series | Corbin Russwin ML2000 |
| Certification | Certified A156.13 Series 1000, Operational and Security Grade 1. |
| Accessibility | Meets A117.1 Accessibility Code. |
| Fire Listing | UL/cUL-UL10C Positive Pressure |
| Handing | Handed; quick reversible. The lockset can be re-handed without disassembling the lock case; see page 87. |
| Door Thickness | 1-3/4" (44mm) standard. Optional door thicknesses available; see Quick Codes, page 81. |
| Backset | 2-3/4" (70mm). |
| Lockcase | Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). |
| Front | Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). |
| Armored Front | Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. |
| Latchbolt | 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw. |
| Auxiliary Latch | 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking. |
| Strike | Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. |
| Cylinder (standard) | Brass, 6-pin, L4 keyway, 0-bitted standard. |
| Hubs | Standard knob/lever hub is steel, 5/16" (8mm) |
| Trim | Princeton Lever x M Escutcheon |
| Warranty | Ten-year mechanical warranty. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel or 722 - Black Oxidized Bronze, Oil Rubbed |
| Corbin Russwin Keyways | L4 Keyway or CL6 - LFIC less Core or LC - Less Cylinder or CL7 - LFIC 7-pin Less Core or CLS6 - SFIC 6-pin Less Core or CLS7 - SFIC 7-pin Less Core |
| Brand | Corbin Russwin |
| ANSI Mortise Lock Function | F26 - Institutional Privacy |
| Trim Design | PSM |
| Series | Corbin Russwin - ML2000 Series |
| Door Handing | Field Reversible |
