Corbin Russwin ML2067 DSP Apartment or Dormitory Mortise Lockset
Lock Operation Detailed

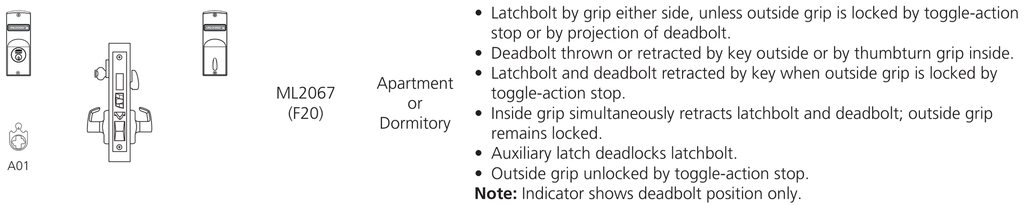

- Latchbolt by grip either side, unless outside grip is locked by toggle-action stop or by projection of deadbolt.
- Deadbolt thrown or retracted by key outside or by thumbturn grip inside.
- Latchbolt and deadbolt retracted by key when outside grip is locked by toggle-action stop.
- Inside grip simultaneously retracts latchbolt and deadbolt; outside grip remains locked.
- Auxiliary latch deadlocks latchbolt.
- Outside grip unlocked by toggle-action stop.
- Note: Indicator shows deadbolt position only.

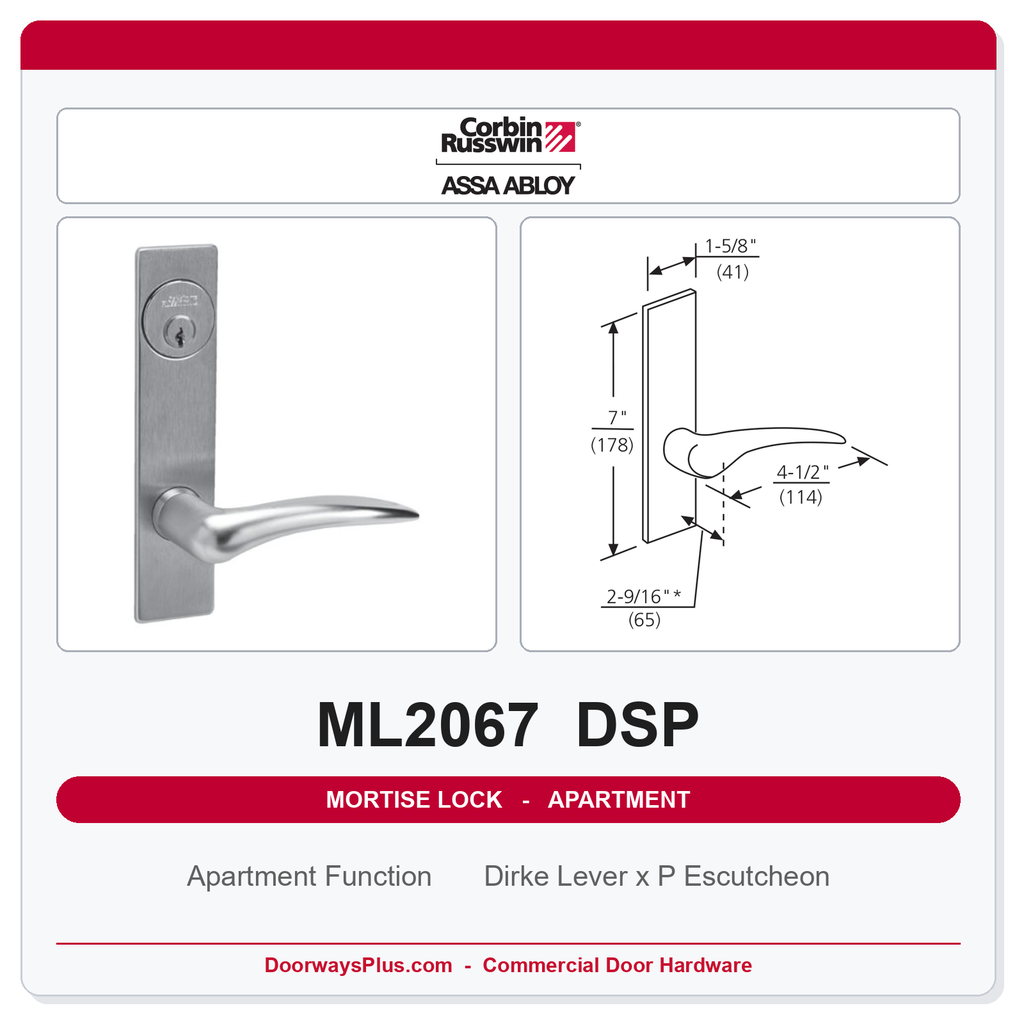

The Corbin Russwin ML2067 DSP is a heavy-duty Grade 1 Apartment or Dormitory mortise lockset on Dirke Lever x P Escutcheon (DSP) trim. It is built on the ML2000 Series platform and is certified to A156.13 Series 1000, Operational and Security Grade 1.
Helpful hint: Dirke levers are handed. The upwards curve points to the hinges -- that is the lever handing. A lever pointing right (the factory DSM photo) is RH or RHR. A lever pointing left is LH or LHR. Choose LH or RH on this listing. The lock case can still be field-reversed for swing (RH to RHR, LH to LHR).
Apartment Function -- What It Means
The Apartment or Dormitory function (ANSI/BHMA F20) locks the outside grip by a toggle-action stop or by projection of the deadbolt. Latchbolt by grip either side unless the outside is locked that way. Deadbolt thrown or retracted by key outside or by thumbturn grip inside. Latchbolt and deadbolt retracted by key when the outside grip is locked by the toggle-action stop. The inside grip simultaneously retracts latchbolt and deadbolt; the outside grip remains locked. The outside grip is unlocked by the toggle-action stop. An auxiliary latch deadlocks the latchbolt. An indicator, when specified, shows deadbolt position only.
Institutional Grade Features & Benefits
- Toggle-action stop: a mechanical stop in the inside faceplate locks or unlocks the outside grip. This is not a key or thumbturn lock.
- Deadbolt indicator only: when an indicator is specified, it shows deadbolt position only.
- Inside retracts both: the inside grip retracts the latchbolt and the deadbolt together.
- Outside stays locked: retracting the deadbolt from inside does not unlock the outside grip.
- Grade 1 certified: Certified A156.13 Series 1000, Operational and Security Grade 1.
- Lever handing: Specify LH or RH. The lever is not field-reversible. The lock case can still be re-handed for swing (LH to LHR, RH to RHR). The upwards curve points to the hinges.
- Fire listing: UL/cUL-UL10C Positive Pressure
- Warranty: Ten-year mechanical warranty.
Typical Applications
The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
- Commercial applications
- Institutional applications
- Industrial applications
- Government applications
This apartment listing is specified on apartment and dormitory openings that use a toggle-action stop and a deadbolt in those settings.
Technical Details
| Feature | Details |
|---|---|
| Model Number | ML2067 DSP |
| Function | Apartment or Dormitory (ANSI/BHMA F20) |
| Series | Corbin Russwin ML2000 |
| Certification | Certified A156.13 Series 1000, Operational and Security Grade 1. |
| Accessibility | Meets A117.1 Accessibility Code. |
| Fire Listing | UL/cUL-UL10C Positive Pressure |
| Handing | Specify LH or RH. The lever is not field-reversible. The lock case can still be re-handed for swing (LH to LHR, RH to RHR). |
| Door Thickness | 1-3/4" (44mm) standard. Optional door thicknesses available; see Quick Codes, page 81. |
| Backset | 2-3/4" (70mm). |
| Lockcase | Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). |
| Front | Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). |
| Armored Front | Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. |
| Latchbolt | 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw. |
| Auxiliary Latch | 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking. |
| Deadbolt | One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw. |
| Strike | Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. |
| Cylinder (standard) | Brass, 6-pin, L4 keyway, 0-bitted standard. |
| Hubs | Standard knob/lever hub is steel, 5/16" (8mm) |
| Trim | Dirke Lever x P Escutcheon |
| Warranty | Ten-year mechanical warranty. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel or 722 - Black Oxidized Bronze, Oil Rubbed |
| Corbin Russwin Electrified Lock Options | M91 - Latchbolt Monitoring (LBM) or M92 - Request to Exit (REX) |
| Door Handing | LH or RH |
| Corbin Russwin Keyways | L4 Keyway or CL6 - LFIC less Core or LC - Less Cylinder or CL7 - LFIC 7-pin Less Core or CLS6 - SFIC 6-pin Less Core or CLS7 - SFIC 7-pin Less Core |
| Brand | Corbin Russwin |
| ANSI Mortise Lock Function | F20 - Apartment |
| Trim Design | DSP |
| Series | Corbin Russwin - ML2000 Series |
