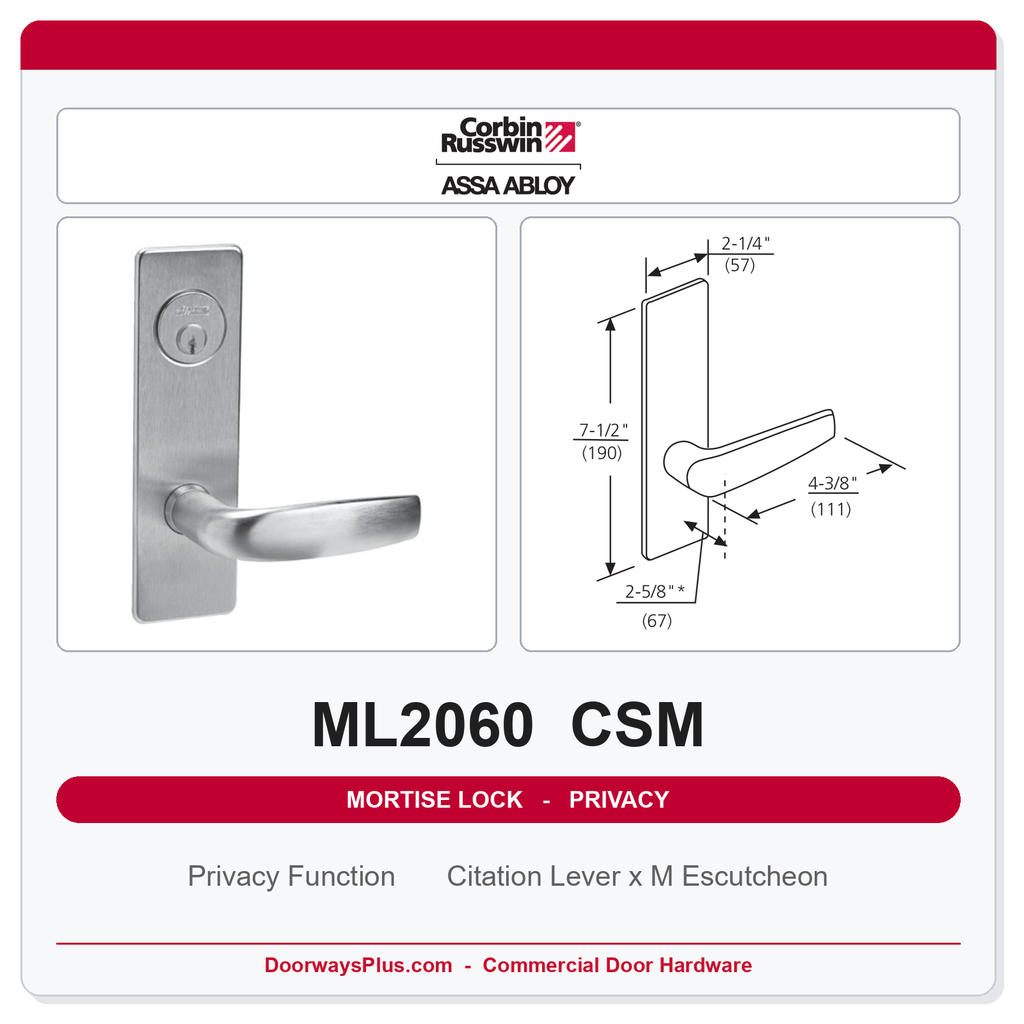

Corbin Russwin ML2060 CSM Privacy Mortise Latchset

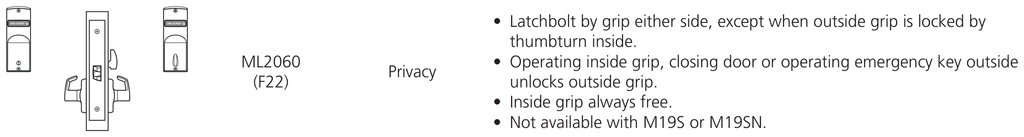

Lock Operation Detailed
- Latchbolt by grip either side, except when outside grip is locked by thumbturn inside.
- Operating inside grip, closing door or operating emergency key outside unlocks outside grip.
- Inside grip always free.
- Not available with M19S or M19SN.
The Corbin Russwin ML2060 CSM is a heavy-duty Grade 1 Privacy mortise latchset on Citation Lever x M Escutcheon (CSM) trim. It is built on the ML2000 Series platform and is certified to A156.13 Series 1000, Operational and Security Grade 1.
Privacy Function -- What It Means
The Privacy function (ANSI/BHMA F22) locks the outside grip with a thumbturn inside. Latchbolt by grip either side except when the outside grip is locked by that thumbturn. Operating the inside grip, closing the door, or operating the emergency key outside unlocks the outside grip. The inside grip is always free. This is a non-keyed latchset -- there is no cylinder. The catalog prints that this function is not available with M19S or M19SN.
Institutional Grade Features & Benefits
- Inside thumbturn lock: a thumbturn inside locks the outside grip. Operating the inside grip, closing the door, or the emergency key outside unlocks it. There is no cylinder.
- No M19 indicator: this function is not available with M19S or M19SN.
- Unlocks on exit or close: operating the inside grip, closing the door, or the emergency key outside unlocks the outside grip.
- Free egress from inside: the inside grip retracts the latchbolt at all times.
- Grade 1 certified: Certified A156.13 Series 1000, Operational and Security Grade 1.
- Field handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case; see page 87.
- Fire listing: UL/cUL-UL10C Positive Pressure
- Warranty: Ten-year mechanical warranty.
Typical Applications
The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
- Commercial applications
- Institutional applications
- Industrial applications
- Government applications
This privacy listing is specified on restroom, office, and patient-room openings that need a non-keyed privacy latchset in those settings.
Technical Details
| Feature | Details |
|---|---|
| Model Number | ML2060 CSM |
| Function | Privacy (ANSI/BHMA F22) |
| Series | Corbin Russwin ML2000 |
| Certification | Certified A156.13 Series 1000, Operational and Security Grade 1. |
| Accessibility | Meets A117.1 Accessibility Code. |
| Fire Listing | UL/cUL-UL10C Positive Pressure |
| Handing | Handed; quick reversible. The lockset can be re-handed without disassembling the lock case; see page 87. |
| Door Thickness | 1-3/4" (44mm) standard. Optional door thicknesses available; see Quick Codes, page 81. |
| Backset | 2-3/4" (70mm). |
| Lockcase | Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). |
| Front | Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). |
| Armored Front | Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. |
| Latchbolt | 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw. |
| Strike | Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. |
| Hubs | Standard knob/lever hub is steel, 5/16" (8mm) |
| Trim | Citation Lever x M Escutcheon |
| Warranty | Ten-year mechanical warranty. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel or 722 - Black Oxidized Bronze, Oil Rubbed |
| Brand | Corbin Russwin |
| ANSI Mortise Lock Function | F22 - Privacy |
| Trim Design | CSM |
| Series | Corbin Russwin - ML2000 Series |
| Door Handing | Field Reversible |
