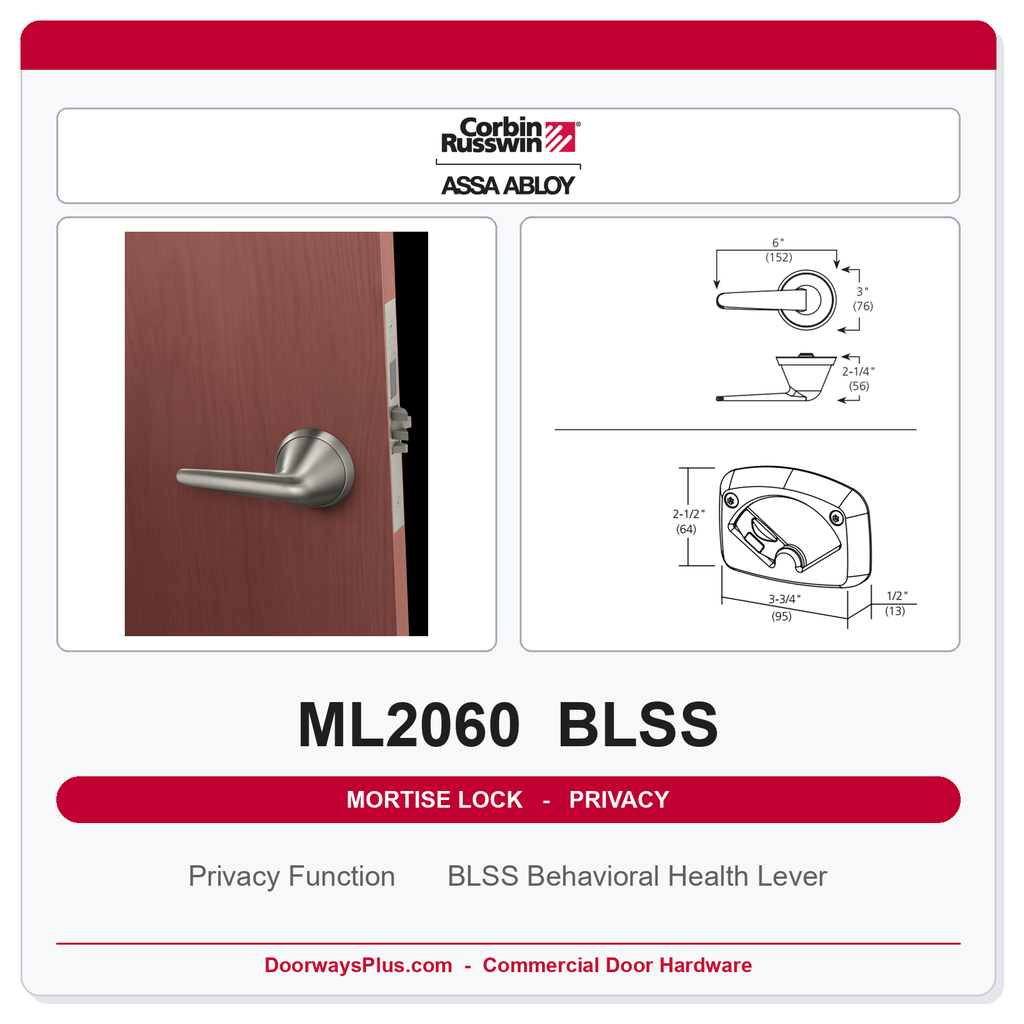

Corbin Russwin ML2060 BLSS Privacy Behavioral Health Mortise Latchset

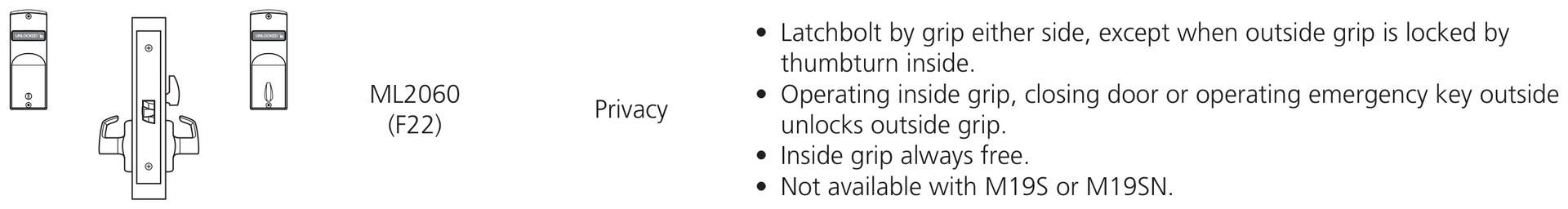

Lock Operation Detailed
- Latchbolt by grip either side, except when outside grip is locked by thumbturn inside.
- Operating inside grip, closing door or operating emergency key outside unlocks outside grip.
- Inside grip always free.
- Not available with M19S or M19SN.
The Corbin Russwin ML2060 BLSS is a heavy-duty Grade 1 Privacy mortise latchset on BLSS Behavioral Health Lever (BLSS) trim. It is built on the ML2000 Series platform and is certified to A156.13 Series 1000, Operational and Security Grade 1.
Privacy Function -- What It Means
The Privacy function (ANSI/BHMA F22) locks the outside grip with a thumbturn inside. Latchbolt by grip either side except when the outside grip is locked by that thumbturn. Operating the inside grip, closing the door, or operating the emergency key outside unlocks the outside grip. The inside grip is always free. This is a non-keyed latchset -- there is no cylinder. The catalog prints that this function is not available with M19S or M19SN.
Institutional Grade Features & Benefits
- Inside thumbturn lock: a thumbturn inside locks the outside grip. Operating the inside grip, closing the door, or the emergency key outside unlocks it. There is no cylinder.
- No M19 indicator: this function is not available with M19S or M19SN.
- Unlocks on exit or close: operating the inside grip, closing the door, or the emergency key outside unlocks the outside grip.
- Free egress from inside: the inside grip retracts the latchbolt at all times.
- Grade 1 certified: Certified A156.13 Series 1000, Operational and Security Grade 1.
- Specify handing: Specify handing when ordering. Catalog how-to-order prints the hand (example: RHR).
- Behavioral Health lever: sloping surfaces and overlapping rose and lever, catalog 45300 12/25 p.60.
- No occupancy indicator: not available with Indicator.
- Finishes: 630, 630C. Catalog prints one 630 price column; 630C is MicroShield. No second list price.
- Fire listing: UL/cUL-UL10C Positive Pressure
- Warranty: Ten-year mechanical warranty.
Typical Applications
The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
- Commercial applications
- Institutional applications
- Industrial applications
- Government applications
This privacy listing is specified on healthcare and behavioral health openings that need a non-keyed privacy latchset in those settings.
Catalog notice: Although these products are a better design for behavioral health applications than traditional trim, they do not eliminate the risk that an object can be affixed to, or around them. Refer to Patient Safety Standards Guidelines for the latest approved products.
Technical Details
| Feature | Details |
|---|---|
| Model Number | ML2060 BLSS |
| Function | Privacy (ANSI/BHMA F22) |
| Series | Corbin Russwin ML2000 |
| Certification | Certified A156.13 Series 1000, Operational and Security Grade 1. |
| Accessibility | Meets A117.1 Accessibility Code. |
| Fire Listing | UL/cUL-UL10C Positive Pressure |
| Handing | Specify handing when ordering. Catalog how-to-order prints the hand (example: RHR). |
| Door Thickness | 1-3/4" (44mm) through 2-1/4" (57mm) |
| Backset | 2-3/4" (70mm). |
| Lockcase | Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). |
| Front | Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). |
| Armored Front | Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. |
| Available Finishes | 630, 630C |
| Indicator | Not available with Indicator |
| Latchbolt | 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw. |
| Strike | Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. |
| Hubs | Standard knob/lever hub is steel, 5/16" (8mm) |
| Trim | BLSS Behavioral Health Lever |
| Warranty | Ten-year mechanical warranty. |
| Finish with BHMA code | 630 - US32D Satin Stainless or 630C - US32D Satin Stainless MicroShield |
| Door Handing | LH or RH or RHR or LHR |
| Brand | Corbin Russwin |
| ANSI Mortise Lock Function | F22 - Privacy |
| Trim Design | BLSS |
| Series | Corbin Russwin - ML2000 Series |
