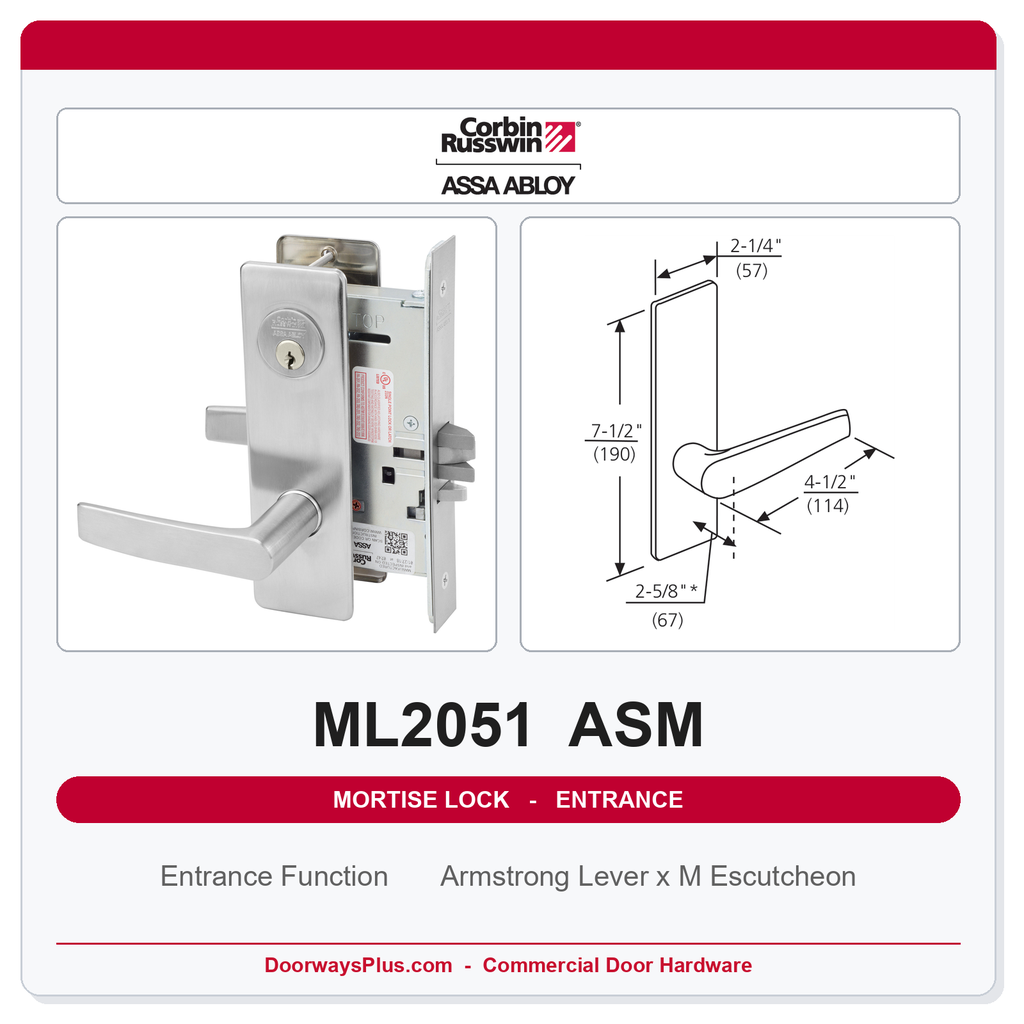

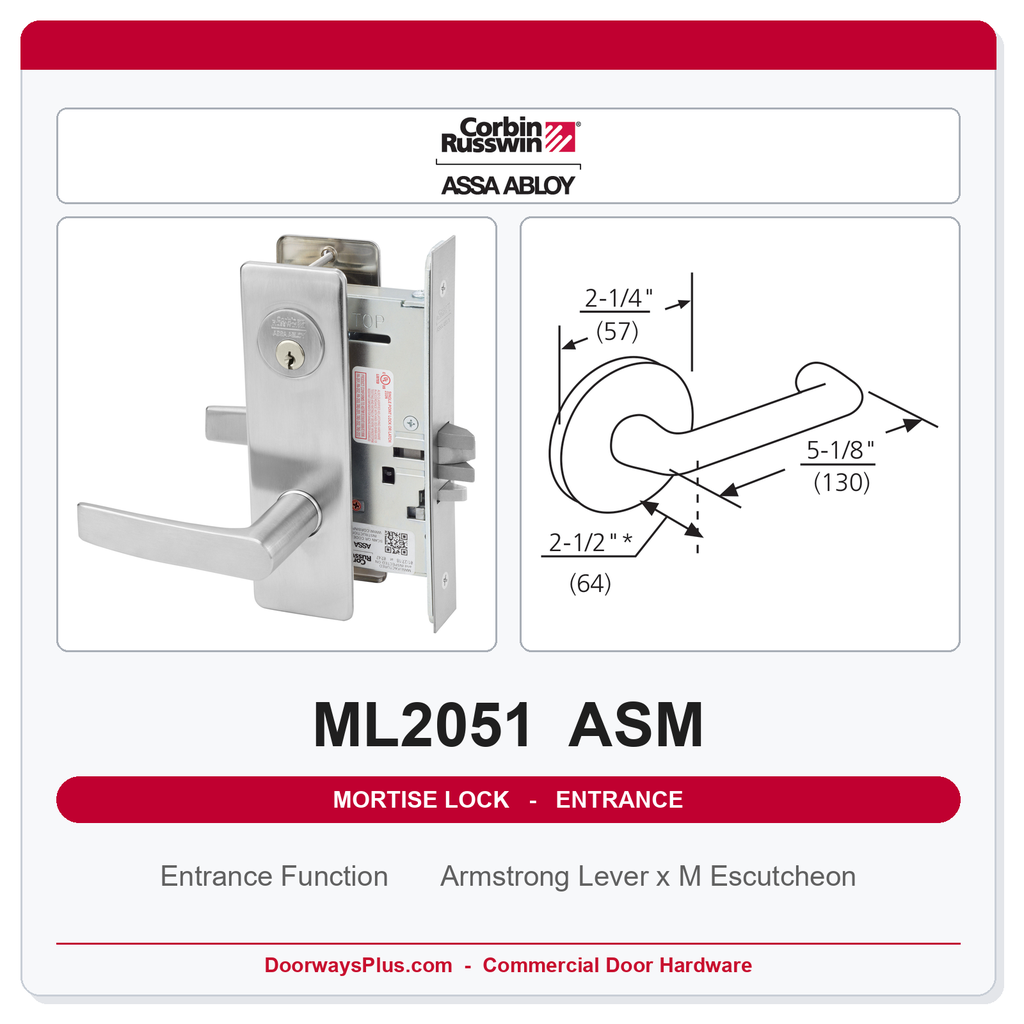

Corbin Russwin ML2051 ASM Entrance or Office Mortise Lockset

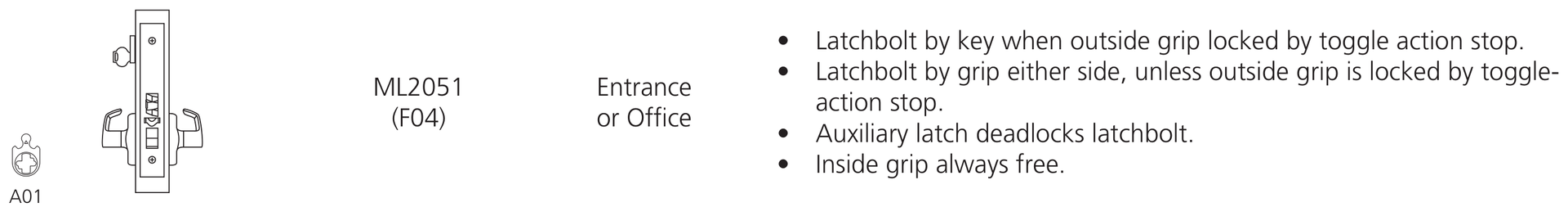

Lock Operation Detailed
- Latchbolt by key when outside grip locked by toggle action stop.
- Latchbolt by grip either side, unless outside grip is locked by toggle-action stop.
- Auxiliary latch deadlocks latchbolt.
- Inside grip always free.
The Corbin Russwin ML2051 ASM is a heavy-duty Grade 1 Entrance or Office mortise lockset on Armstrong Lever x M Escutcheon (ASM) trim. It is built on the ML2000 Series platform and is certified to A156.13 Series 1000, Operational and Security Grade 1.
Entrance Function -- What It Means
The Entrance or Office function (ANSI/BHMA F04) locks or unlocks the outside grip with a toggle-action stop -- a mechanical stop in the inside faceplate, not a key and not a thumbturn. When the stop is locked, the latchbolt is retracted from outside by key. Latchbolt by grip either side unless the outside grip is locked. The inside grip is always free for egress. An auxiliary latch deadlocks the latchbolt when the door is closed.
Institutional Grade Features & Benefits
- Toggle-action stop: a mechanical stop in the inside faceplate locks or unlocks the outside grip. This is not a key or thumbturn lock.
- Free egress from inside: the inside grip retracts the latchbolt at all times.
- Grade 1 certified: Certified A156.13 Series 1000, Operational and Security Grade 1.
- Field handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case; see page 87.
- Fire listing: UL/cUL-UL10C Positive Pressure
- Warranty: Ten-year mechanical warranty.
Typical Applications
The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
- Commercial applications
- Institutional applications
- Industrial applications
- Government applications
This entrance listing is specified on entrance, office, and similarly toggle-controlled openings in those settings.
Technical Details
| Feature | Details |
|---|---|
| Model Number | ML2051 ASM |
| Function | Entrance or Office (ANSI/BHMA F04) |
| Series | Corbin Russwin ML2000 |
| Certification | Certified A156.13 Series 1000, Operational and Security Grade 1. |
| Accessibility | Meets A117.1 Accessibility Code. |
| Fire Listing | UL/cUL-UL10C Positive Pressure |
| Handing | Handed; quick reversible. The lockset can be re-handed without disassembling the lock case; see page 87. |
| Door Thickness | 1-3/4" (44mm) standard. Optional door thicknesses available; see Quick Codes, page 81. |
| Backset | 2-3/4" (70mm). |
| Lockcase | Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). |
| Front | Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). |
| Armored Front | Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. |
| Latchbolt | 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw. |
| Auxiliary Latch | 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking. |
| Strike | Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. |
| Cylinder (standard) | Brass, 6-pin, L4 keyway, 0-bitted standard. |
| Hubs | Standard knob/lever hub is steel, 5/16" (8mm) |
| Trim | Armstrong Lever x M Escutcheon |
| Warranty | Ten-year mechanical warranty. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel or 722 - Black Oxidized Bronze, Oil Rubbed |
| Corbin Russwin Electrified Lock Options | M91 - Latchbolt Monitoring (LBM) or M92 - Request to Exit (REX) |
| Corbin Russwin Keyways | L4 Keyway or CL6 - LFIC less Core or LC - Less Cylinder or CL7 - LFIC 7-pin Less Core or CLS6 - SFIC 6-pin Less Core or CLS7 - SFIC 7-pin Less Core |
| Brand | Corbin Russwin |
| ANSI Mortise Lock Function | F04 - Office Entry |
| Trim Design | ASM |
| Series | Corbin Russwin - ML2000 Series |
| Door Handing | Field Reversible |
