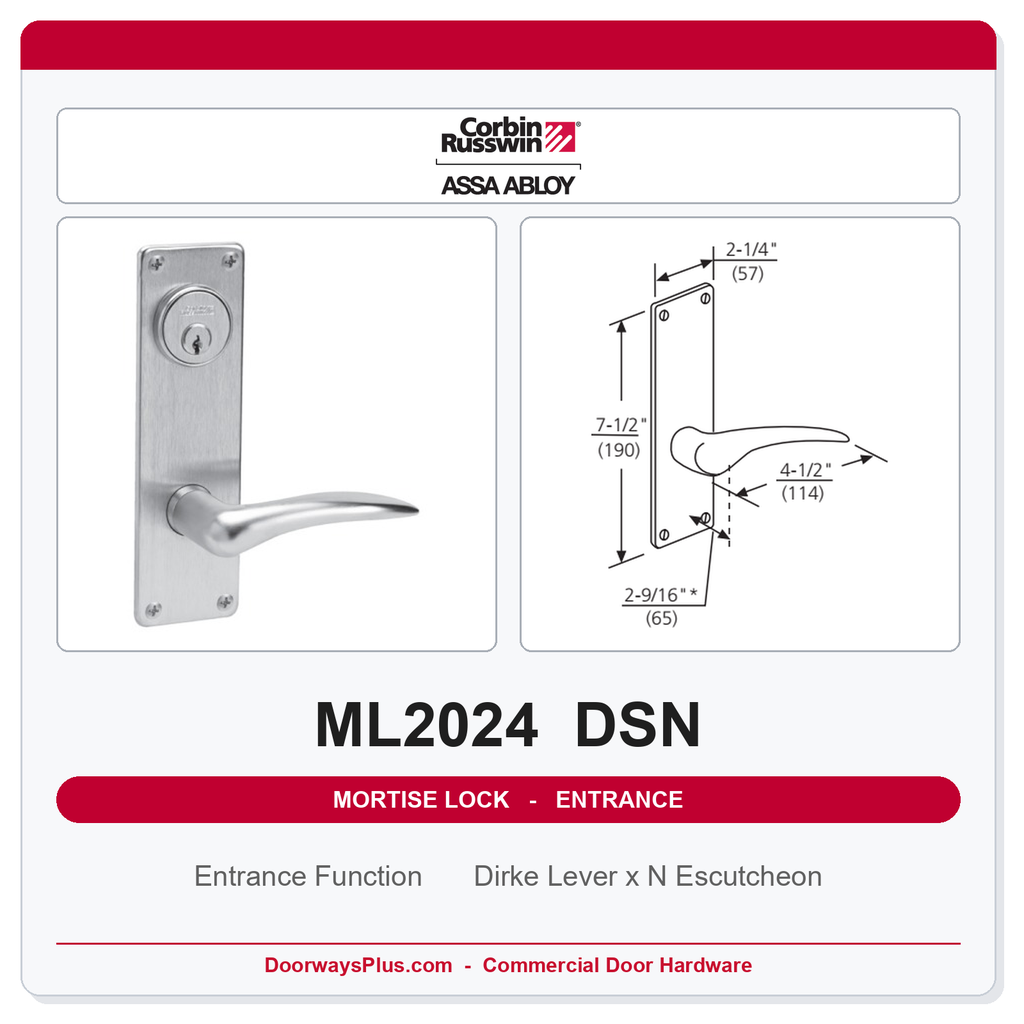

Corbin Russwin ML2024 DSN Entrance or Storeroom Mortise Lockset

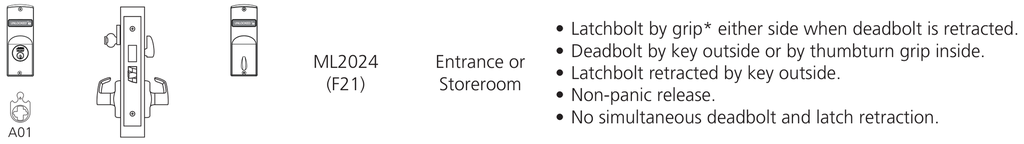

Lock Operation Detailed
- Latchbolt by grip* either side when deadbolt is retracted.
- Deadbolt by key outside or by thumbturn grip inside.
- Latchbolt retracted by key outside.
- Non-panic release.
- No simultaneous deadbolt and latch retraction.
The Corbin Russwin ML2024 DSN is a heavy-duty Grade 1 Entrance or Storeroom mortise lockset on Dirke Lever x N Escutcheon (DSN) trim. It is built on the ML2000 Series platform and is certified to A156.13 Series 1000, Operational and Security Grade 1.
Helpful hint: Dirke levers are handed. The upwards curve points to the hinges -- that is the lever handing. A lever pointing right (the factory DSM photo) is RH or RHR. A lever pointing left is LH or LHR. Choose LH or RH on this listing. The lock case can still be field-reversed for swing (RH to RHR, LH to LHR).
Entrance Function -- What It Means
The Entrance or Storeroom function (ANSI/BHMA F21) is a single-cylinder lockbody with a deadbolt and a latchbolt. Latchbolt by grip either side when the deadbolt is retracted. Deadbolt by key outside or by thumbturn grip inside. Latchbolt retracted by key outside. The catalog prints non-panic release and no simultaneous deadbolt and latch retraction. When lever handles are furnished, both outside and inside are locked when the deadbolt is projected.
Institutional Grade Features & Benefits
- Non-panic release: the catalog prints non-panic release. This is not a panic-exit function.
- No simultaneous retract: deadbolt and latchbolt do not retract together.
- Latch when deadbolt is back: the latchbolt is by grip either side only when the deadbolt is retracted.
- Deadbolt by key or thumbturn: a key outside or a thumbturn inside throws or retracts the deadbolt.
- Grade 1 certified: Certified A156.13 Series 1000, Operational and Security Grade 1.
- Lever handing: Specify LH or RH. The lever is not field-reversible. The lock case can still be re-handed for swing (LH to LHR, RH to RHR). The upwards curve points to the hinges.
- Fire listing: UL/cUL-UL10C Positive Pressure
- Warranty: Ten-year mechanical warranty.
Typical Applications
The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
- Commercial applications
- Institutional applications
- Industrial applications
- Government applications
This entrance listing is specified on entrance and storeroom openings that need a single-cylinder deadbolt in those settings.
Technical Details
| Feature | Details |
|---|---|
| Model Number | ML2024 DSN |
| Function | Entrance or Storeroom (ANSI/BHMA F21) |
| Series | Corbin Russwin ML2000 |
| Certification | Certified A156.13 Series 1000, Operational and Security Grade 1. |
| Accessibility | Meets A117.1 Accessibility Code. |
| Fire Listing | UL/cUL-UL10C Positive Pressure |
| Handing | Specify LH or RH. The lever is not field-reversible. The lock case can still be re-handed for swing (LH to LHR, RH to RHR). |
| Door Thickness | 1-3/4" (44mm) standard. Optional door thicknesses available; see Quick Codes, page 81. |
| Backset | 2-3/4" (70mm). |
| Lockcase | Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). |
| Front | Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). |
| Armored Front | Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. |
| Latchbolt | 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw. |
| Auxiliary Latch | 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking. |
| Deadbolt | One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw. |
| Strike | Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. |
| Cylinder (standard) | Brass, 6-pin, L4 keyway, 0-bitted standard. |
| Hubs | Standard knob/lever hub is steel, 5/16" (8mm) |
| Trim | Dirke Lever x N Escutcheon |
| Warranty | Ten-year mechanical warranty. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel or 722 - Black Oxidized Bronze, Oil Rubbed |
| Corbin Russwin Electrified Lock Options | M91 - Latchbolt Monitoring (LBM) or M92 - Request to Exit (REX) or M105 - Security Monitoring (DPS) |
| Door Handing | LH or RH |
| Corbin Russwin Keyways | L4 Keyway or CL6 - LFIC less Core or LC - Less Cylinder or CL7 - LFIC 7-pin Less Core or CLS6 - SFIC 6-pin Less Core or CLS7 - SFIC 7-pin Less Core |
| Brand | Corbin Russwin |
| ANSI Mortise Lock Function | F21 - Entrance/Storeroom |
| Trim Design | DSN |
| Series | Corbin Russwin - ML2000 Series |
