Corbin Russwin ML2020 ASP Privacy Bedroom or Bathroom Mortise Lockset

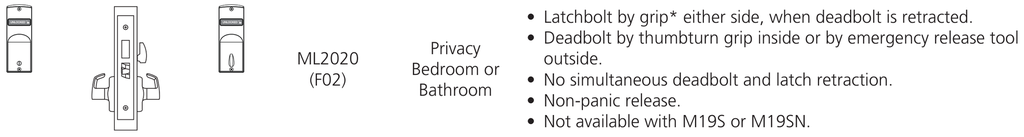

Lock Operation Detailed
- Latchbolt by grip* either side, when deadbolt is retracted.
- Deadbolt by thumbturn grip inside or by emergency release tool outside.
- No simultaneous deadbolt and latch retraction.
- Non-panic release.
- Not available with M19S or M19SN.

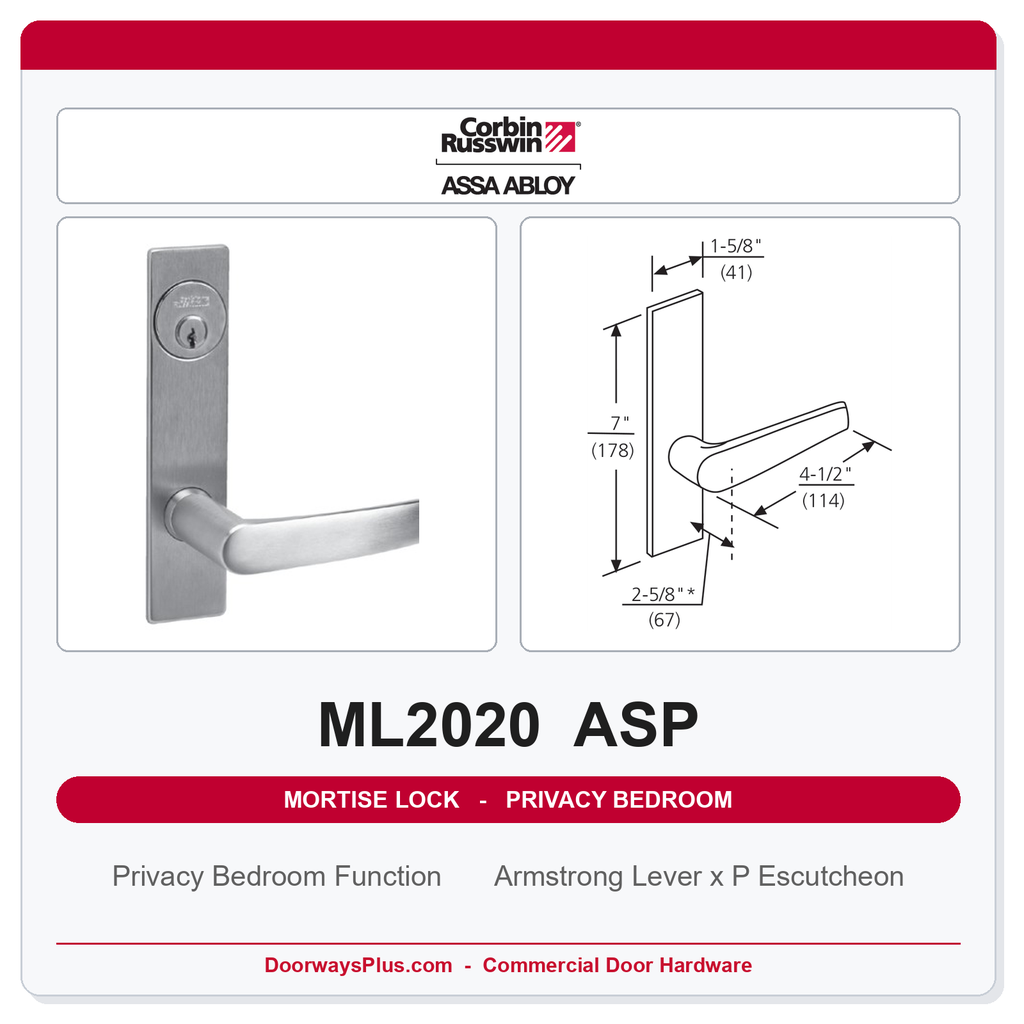

The Corbin Russwin ML2020 ASP is a heavy-duty Grade 1 Privacy Bedroom or Bathroom mortise lockset on Armstrong Lever x P Escutcheon (ASP) trim. It is built on the ML2000 Series platform and is certified to A156.13 Series 1000, Operational and Security Grade 1.
Privacy Bedroom Function -- What It Means
The Privacy Bedroom or Bathroom function (ANSI/BHMA F02) is a non-keyed lockset with a latchbolt and a deadbolt -- there is no cylinder. Latchbolt by grip either side when the deadbolt is retracted. Deadbolt by thumbturn grip inside or by emergency release tool outside. The catalog prints non-panic release and no simultaneous deadbolt and latch retraction. When lever handles are furnished, both outside and inside are locked when the deadbolt is projected. This function is not available with M19S or M19SN.
Institutional Grade Features & Benefits
- No M19 indicator: this function is not available with M19S, M19N, M19V, M19SN, or M19VN.
- Non-panic release: the catalog prints non-panic release. This is not a panic-exit function.
- Emergency release outside: an emergency release tool outside operates the deadbolt. There is no cylinder.
- No simultaneous retract: deadbolt and latchbolt do not retract together.
- Latch when deadbolt is back: the latchbolt is by grip either side only when the deadbolt is retracted.
- Grade 1 certified: Certified A156.13 Series 1000, Operational and Security Grade 1.
- Field handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case; see page 87.
- Fire listing: UL/cUL-UL10C Positive Pressure
- Warranty: Ten-year mechanical warranty.
Typical Applications
The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
- Commercial applications
- Institutional applications
- Industrial applications
- Government applications
This privacy bedroom listing is specified on bedroom and bathroom openings that need a non-keyed privacy lockset with a deadbolt in those settings.
Technical Details
| Feature | Details |
|---|---|
| Model Number | ML2020 ASP |
| Function | Privacy Bedroom or Bathroom (ANSI/BHMA F02) |
| Series | Corbin Russwin ML2000 |
| Certification | Certified A156.13 Series 1000, Operational and Security Grade 1. |
| Accessibility | Meets A117.1 Accessibility Code. |
| Fire Listing | UL/cUL-UL10C Positive Pressure |
| Handing | Handed; quick reversible. The lockset can be re-handed without disassembling the lock case; see page 87. |
| Door Thickness | 1-3/4" (44mm) standard. Optional door thicknesses available; see Quick Codes, page 81. |
| Backset | 2-3/4" (70mm). |
| Lockcase | Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). |
| Front | Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). |
| Armored Front | Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. |
| Latchbolt | 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw. |
| Deadbolt | One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw. |
| Strike | Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. |
| Hubs | Standard knob/lever hub is steel, 5/16" (8mm) |
| Trim | Armstrong Lever x P Escutcheon |
| Warranty | Ten-year mechanical warranty. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel or 722 - Black Oxidized Bronze, Oil Rubbed |
| Corbin Russwin Electrified Lock Options | M91 - Latchbolt Monitoring (LBM) or M92 - Request to Exit (REX) or M105 - Security Monitoring (DPS) |
| Brand | Corbin Russwin |
| ANSI Mortise Lock Function | F02 - Privacy Bath/Bedroom |
| Trim Design | ASP |
| Series | Corbin Russwin - ML2000 Series |
| Door Handing | Field Reversible |
