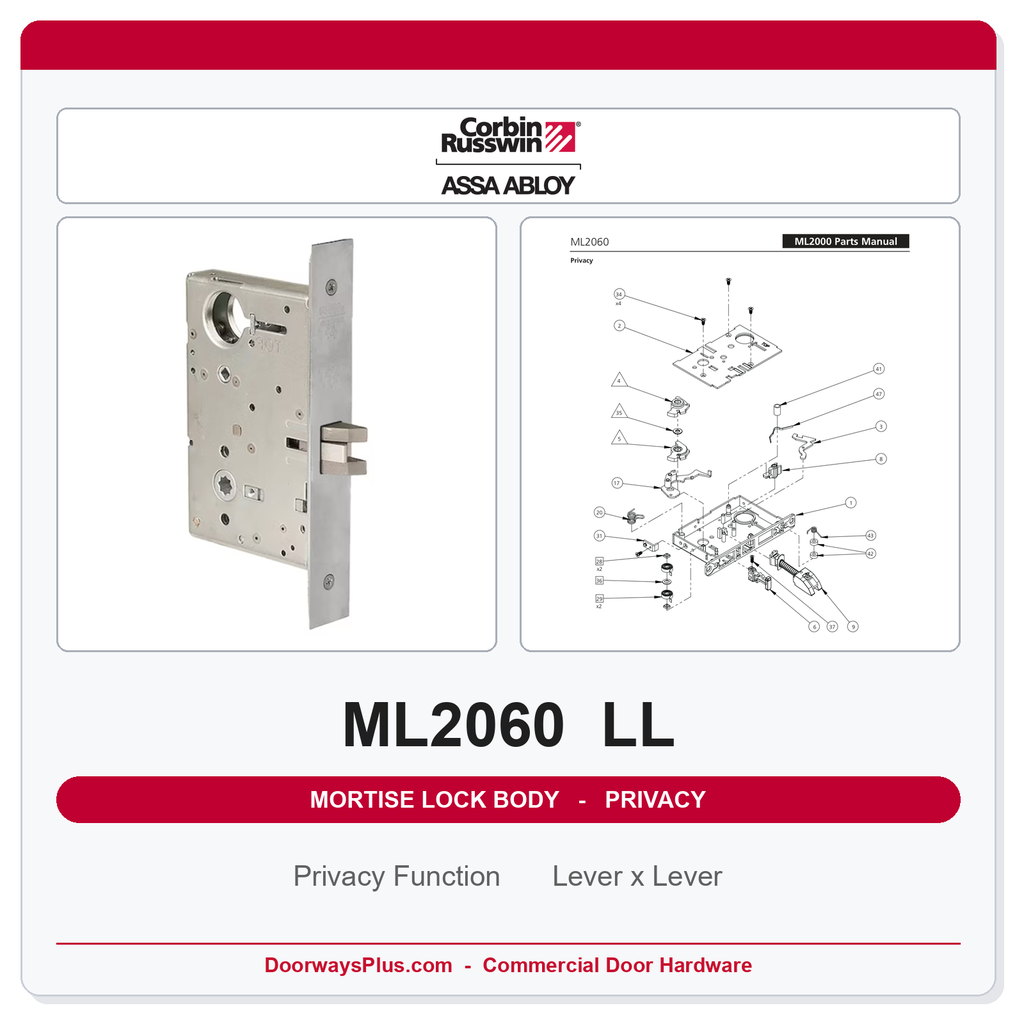

Corbin Russwin LB-ML2060 Privacy Function Mortise Lock Body (ANSI F22)
Lock Operation Detailed
- Latchbolt by grip either side, except when outside grip is locked by thumbturn inside.
- Operating inside grip, closing door or operating emergency key outside unlocks outside grip.
- Inside grip always free.
- Not available with M19S or M19SN.
The Corbin Russwin LB-ML2060 is the bare ML2000 Series heavy-duty mortise lock body (case only) configured for the Privacy function ANSI/BHMA F22. Price Book No. 42 page 106 Lock Only sells this as trim key LL (Lever x Lever): it includes the lockcase, armored front, strike and screw pack. Cylinder(s) and thumbturn lever are not included. Order the complete lockset when you need levers, roses, or escutcheons on the same opening.
Privacy Function -- What It Means
The Privacy function (ANSI/BHMA F22) locks the outside grip with a thumbturn inside. Latchbolt by grip either side except when the outside grip is locked by that thumbturn. Operating the inside grip, closing the door, or operating the emergency key outside unlocks the outside grip. The inside grip is always free. This is a non-keyed latchset -- there is no cylinder. The catalog prints that this function is not available with M19S or M19SN.
Institutional Grade Features and Benefits
- Case only -- LL Lever x Lever. This listing is the lockcase, not a complete lockset. Rebuild an existing ML2000 opening without buying new exterior trim.
- What ships. lockcase, armored front, strike and screw pack, per Corbin Russwin List Price Book No. 42 p.106 Lock Only.
- What does not ship. Cylinder(s) and thumbturn lever are not included.
- Grade 1 chassis. A156.13 Series 1000, Operational and Security Grade 1
- Handing. Specify LH, RH, LHR, or RHR. The lock case is quick reversible.
Lock Body

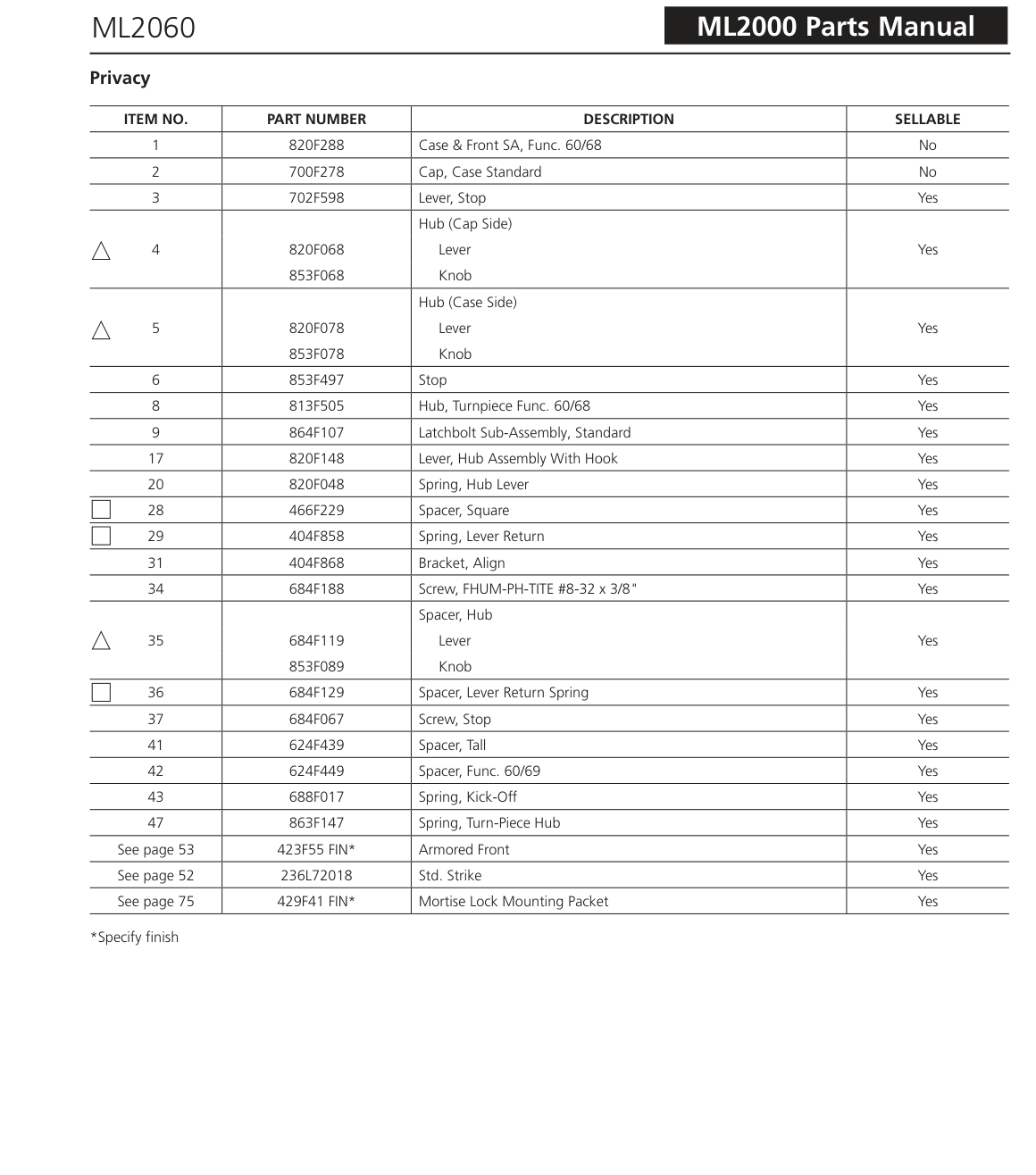

Parts list -- click to enlarge

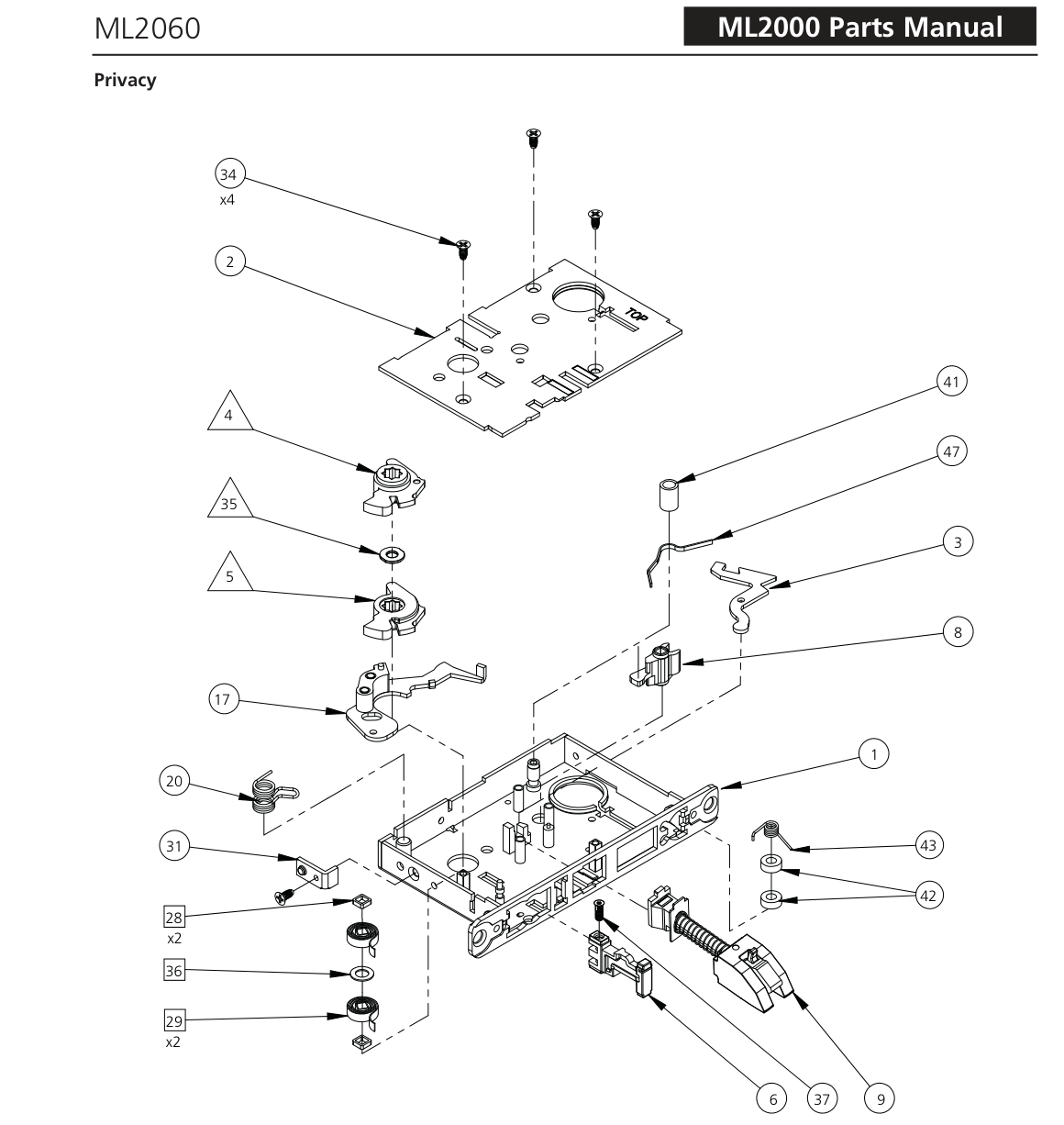

Parts illustration -- click to enlarge
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel or 722 - Black Oxidized Bronze, Oil Rubbed |
| Door Handing | LH or RH or RHR or LHR |
| Brand | Corbin Russwin |
| ANSI Mortise Lock Function | F22 - Privacy |
| Series | Corbin Russwin - ML2000 Series |
| Part Type | Lock Body |
