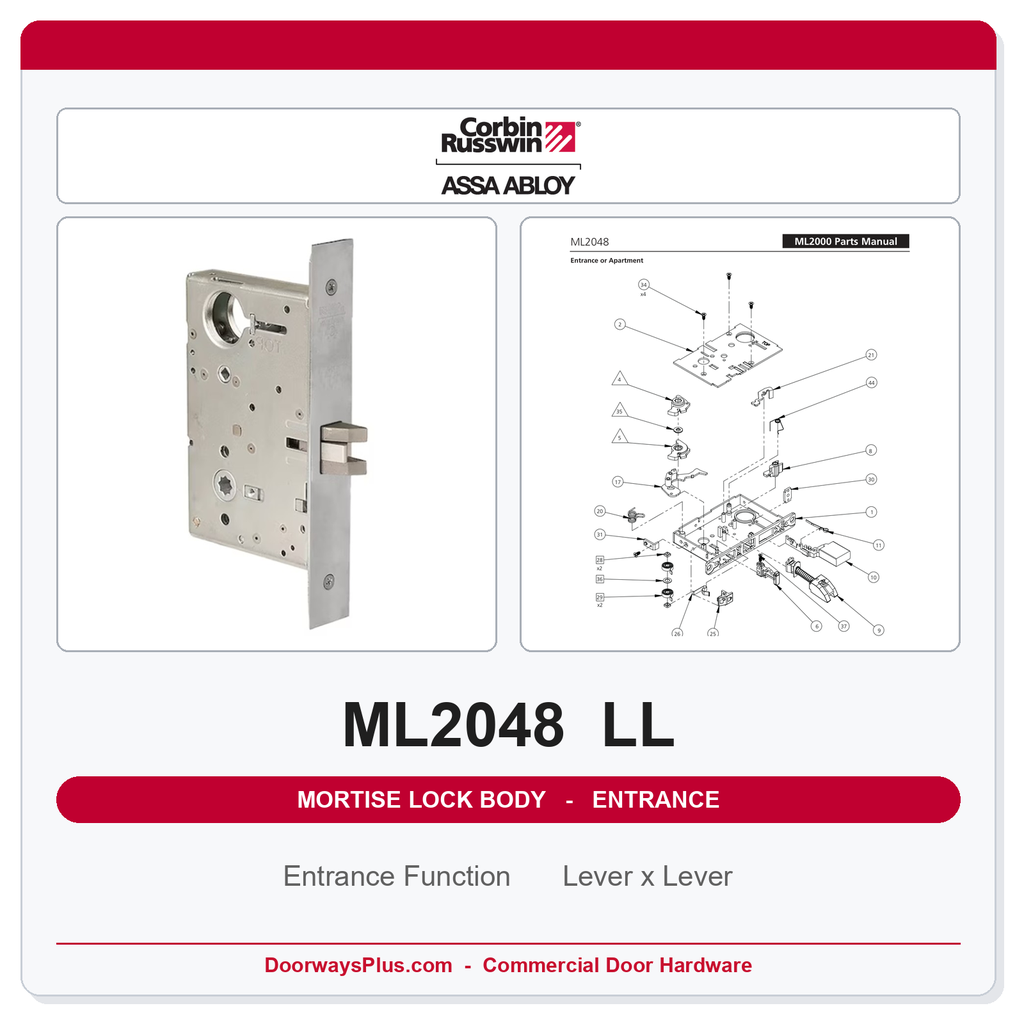

Corbin Russwin LB-ML2048 Entrance or Apartment Function Mortise Lock Body (ANSI F08/F10)
Lock Operation Detailed
- Latchbolt* by key outside or by grip either side, unless outside grip is locked by toggle-action stop.
- Deadbolt by key outside or by thumbturn grip inside.
- Inside grip free when deadbolt is retracted.
- Non-panic release.
- No simultaneous deadbolt and latch retraction.
- Note: Indicator shows deadbolt position only.
The Corbin Russwin LB-ML2048 is the bare ML2000 Series heavy-duty mortise lock body (case only) configured for the Entrance or Apartment function ANSI/BHMA F08/F10. Price Book No. 42 page 106 Lock Only sells this as trim key LL (Lever x Lever): it includes the lockcase, armored front, strike and screw pack. Cylinder(s) and thumbturn lever are not included. Order the complete lockset when you need levers, roses, or escutcheons on the same opening.
Entrance Function -- What It Means
The Entrance or Apartment function (ANSI/BHMA F08/F10) is a single-cylinder lockbody with a deadbolt and a latchbolt. Latchbolt by key outside or by grip either side unless the outside grip is locked by a toggle-action stop. Deadbolt by key outside or by thumbturn grip inside. The inside grip is free when the deadbolt is retracted. The catalog prints non-panic release and no simultaneous deadbolt and latch retraction. An indicator, when specified, shows deadbolt position only. When lever handles are furnished, both outside and inside are locked when the deadbolt is projected.
Institutional Grade Features and Benefits
- Case only -- LL Lever x Lever. This listing is the lockcase, not a complete lockset. Rebuild an existing ML2000 opening without buying new exterior trim.
- What ships. lockcase, armored front, strike and screw pack, per Corbin Russwin List Price Book No. 42 p.106 Lock Only.
- What does not ship. Cylinder(s) and thumbturn lever are not included.
- Grade 1 chassis. A156.13 Series 1000, Operational and Security Grade 1
- Handing. Specify LH, RH, LHR, or RHR. The lock case is quick reversible.
Lock Body

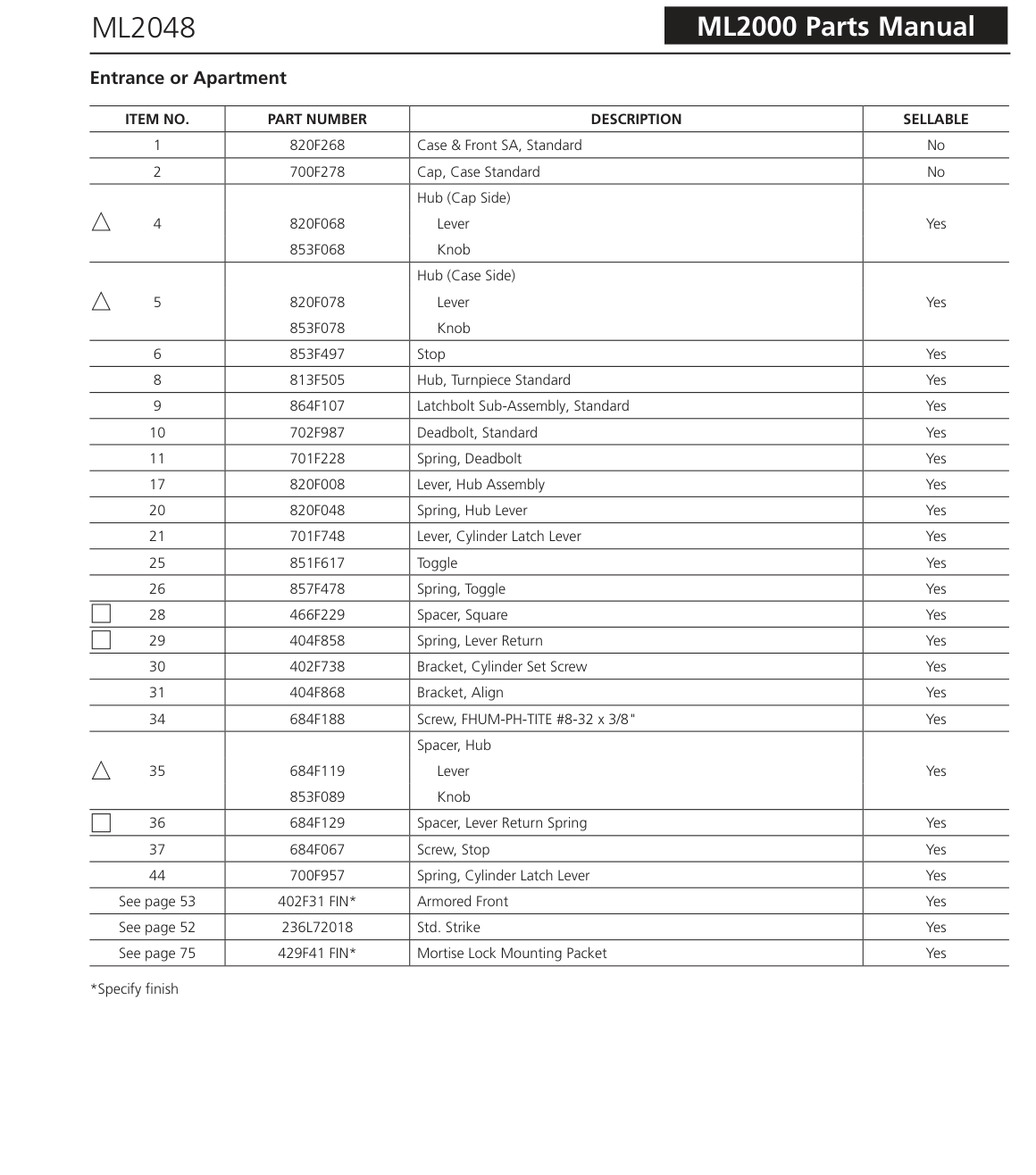

Parts list -- click to enlarge

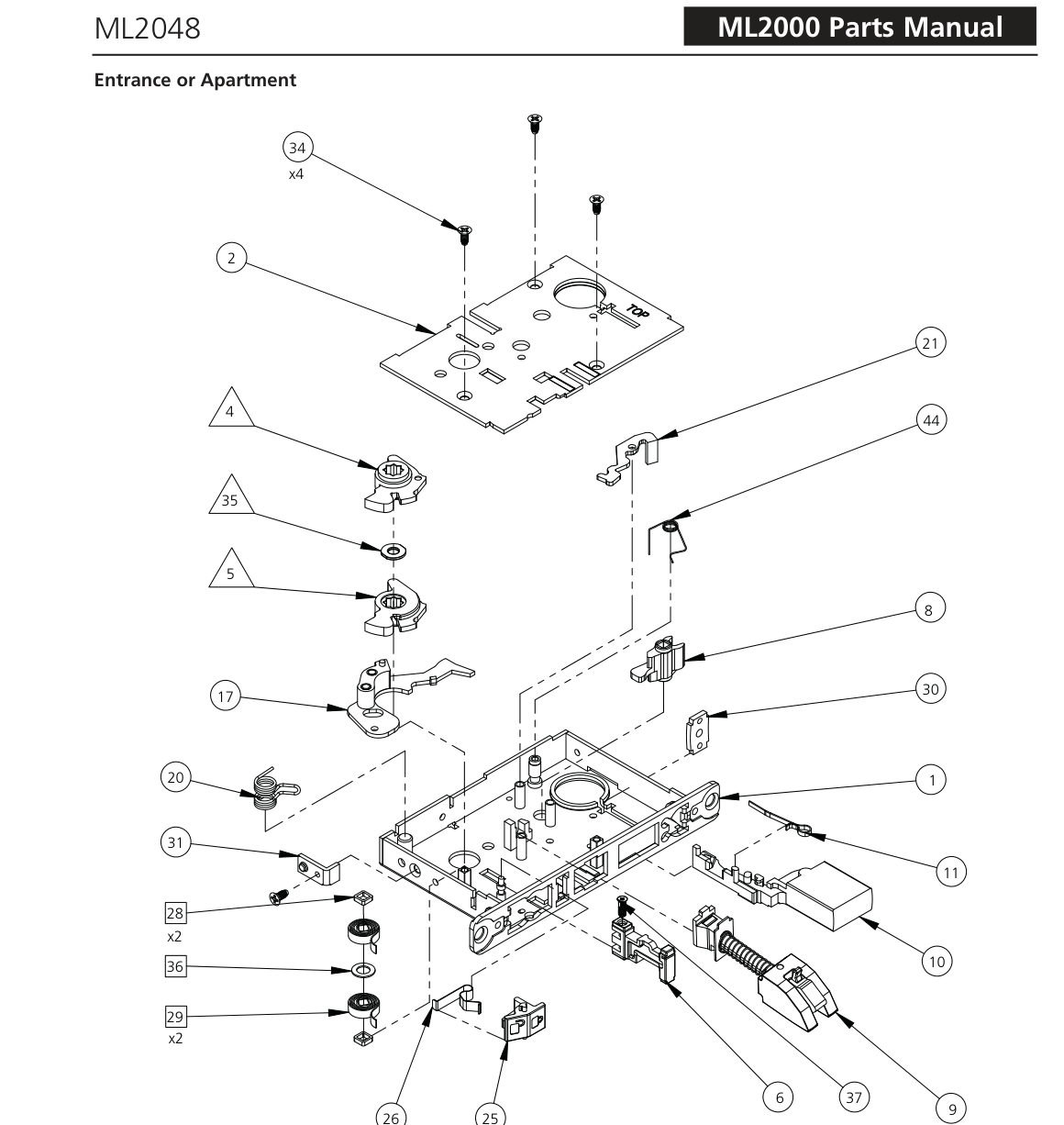

Parts illustration -- click to enlarge
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel or 722 - Black Oxidized Bronze, Oil Rubbed |
| Door Handing | LH or RH or RHR or LHR |
| Brand | Corbin Russwin |
| ANSI Mortise Lock Function | F08/F10 - Front Door or Apartment Corridor Door |
| Series | Corbin Russwin - ML2000 Series |
| Part Type | Lock Body |
