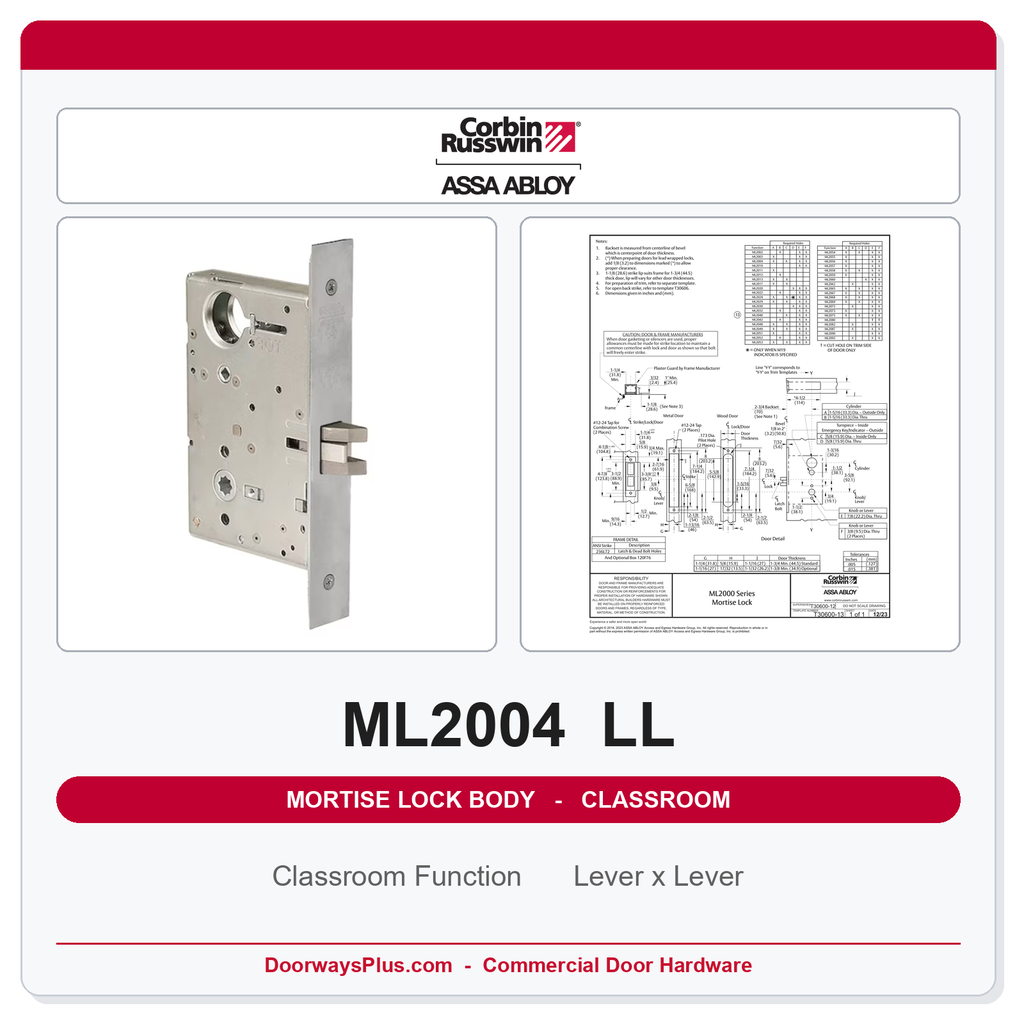

Corbin Russwin LB-ML2004 Classroom Function Mortise Lock Body
Lock Operation Detailed
- Latchbolt by grip either side, unless outside grip is locked by key outside or thumbturn inside.
- Outside grip locked or unlocked by key or thumbturn.
- Inside grip always free.
- Auxiliary latch deadlocks latchbolt.
The Corbin Russwin LB-ML2004 is the bare ML2000 Series heavy-duty mortise lock body (case only) configured for the Classroom function. Price Book No. 42 page 106 Lock Only sells this as trim key LL (Lever x Lever): it includes the lockcase, armored front, strike and screw pack. Cylinder(s) and thumbturn lever are not included. Order the complete lockset when you need levers, roses, or escutcheons on the same opening.
Classroom Function -- What It Means
The Classroom function lets a key outside or a thumbturn inside lock or unlock the outside grip. Latchbolt by grip either side unless the outside grip is locked by key outside or thumbturn inside. The inside grip is always free for egress. An auxiliary latch deadlocks the latchbolt when the door is closed.
Institutional Grade Features and Benefits
- Case only -- LL Lever x Lever. This listing is the lockcase, not a complete lockset. Rebuild an existing ML2000 opening without buying new exterior trim.
- What ships. lockcase, armored front, strike and screw pack, per Corbin Russwin List Price Book No. 42 p.106 Lock Only.
- What does not ship. Cylinder(s) and thumbturn lever are not included.
- Grade 1 chassis. A156.13 Series 1000, Operational and Security Grade 1
- Handing. Specify LH, RH, LHR, or RHR. The lock case is quick reversible.
Technical Details
| Feature | Details |
|---|---|
| Model Number | ML2004 LL |
| Function | Classroom |
| ANSI/BHMA function | Corbin Russwin lists no ANSI/BHMA number for this function |
| Type | Mortise lock body (case only) -- trim and cylinder ordered separately |
| Trim key | LL Lever x Lever |
| Included | lockcase, armored front, strike and screw pack |
| Not included | Cylinder(s) and thumbturn lever are not included. |
| Series | Corbin Russwin ML2000 |
| Certification | Certified A156.13 Series 1000, Operational and Security Grade 1. |
| Accessibility | Meets A117.1 Accessibility Code. |
| Fire Listing | UL/cUL-UL10C Positive Pressure |
| Handing | Specify LH, RH, LHR, or RHR. The lock case is quick reversible. |
| Door Thickness | 1-3/4" (44mm) standard. Optional door thicknesses available; see Quick Codes, page 81. |
| Backset | 2-3/4" (70mm). |
| Lockcase | Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). |
| Front | Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). |
| Armored Front | Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. |
| Latchbolt | 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw. |
| Auxiliary Latch | 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking. |
| Strike | Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. |
| Cylinder | Cylinder(s) and thumbturn lever are not included. |
| Hubs | LL -- Lever x Lever. Standard knob/lever hub is steel, 5/16" (8mm) |
| Warranty | Ten-year mechanical warranty. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel or 722 - Black Oxidized Bronze, Oil Rubbed |
| Door Handing | LH or RH or RHR or LHR |
| Brand | Corbin Russwin |
| Series | Corbin Russwin - ML2000 Series |
| Part Type | Lock Body |
