Dorma DP74 Drop Plate for 7400 Series Closers
The Dorma DP74 is the 7400 Series drop plate. Price List 38 prints it as "Drop plate for 7400." The catalog drawing is 9-3/4 x 3-1/2 in. Glossary use: top jamb when ceiling clearance is 1-3/4 in or more.
Factory template 08280525 is the 7414/7436 ARP parallel-arm sheet that includes DP74/DP86/DP86FC. This page is the plate only.
When do I use DP74 instead of DP86?
DP74 is the 7400-only drop plate (9-3/4 x 3-1/2 in) for top jamb when ceiling clearance is at least 1-3/4 in. DP86 is the slim-cover 8600/7400 drop plate (13 x 3-1/4 in) when ceiling clearance is under 1-7/8 in. They are not the same size.
Does DP74 fit an 8600 slim-cover closer?
No. Order DP86 (slim) or DP86FC (full cover / parallel-arm drop). DP74 is the 7400 plate.
What door-rail clearance does the brochure print?
7400 brochure p.18: parallel-arm install needs a minimum top door rail of 2-1/2 in for non-hold-open, 2-3/4 in for friction hold-open (assuming a 5/8 in stop).
Institutional Grade Features and Benefits
- 7400 only: not the 8600 slim drop (DP86) or full-cover drop (DP86FC).

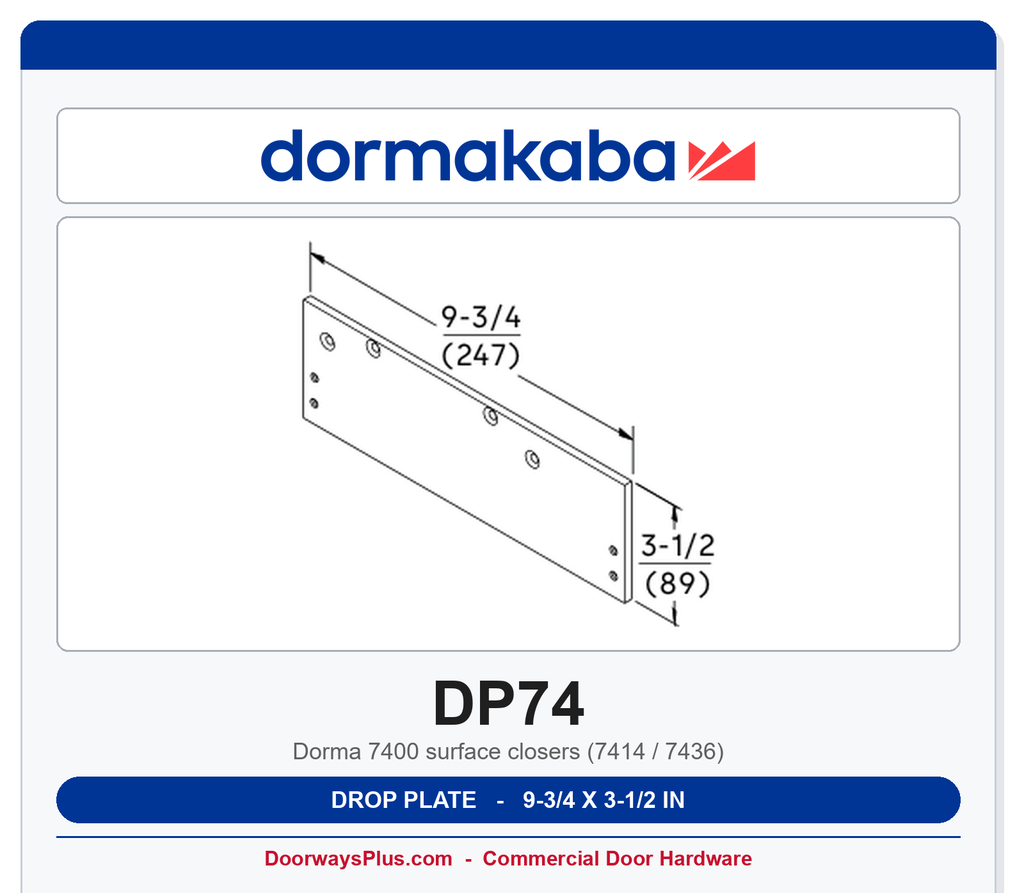

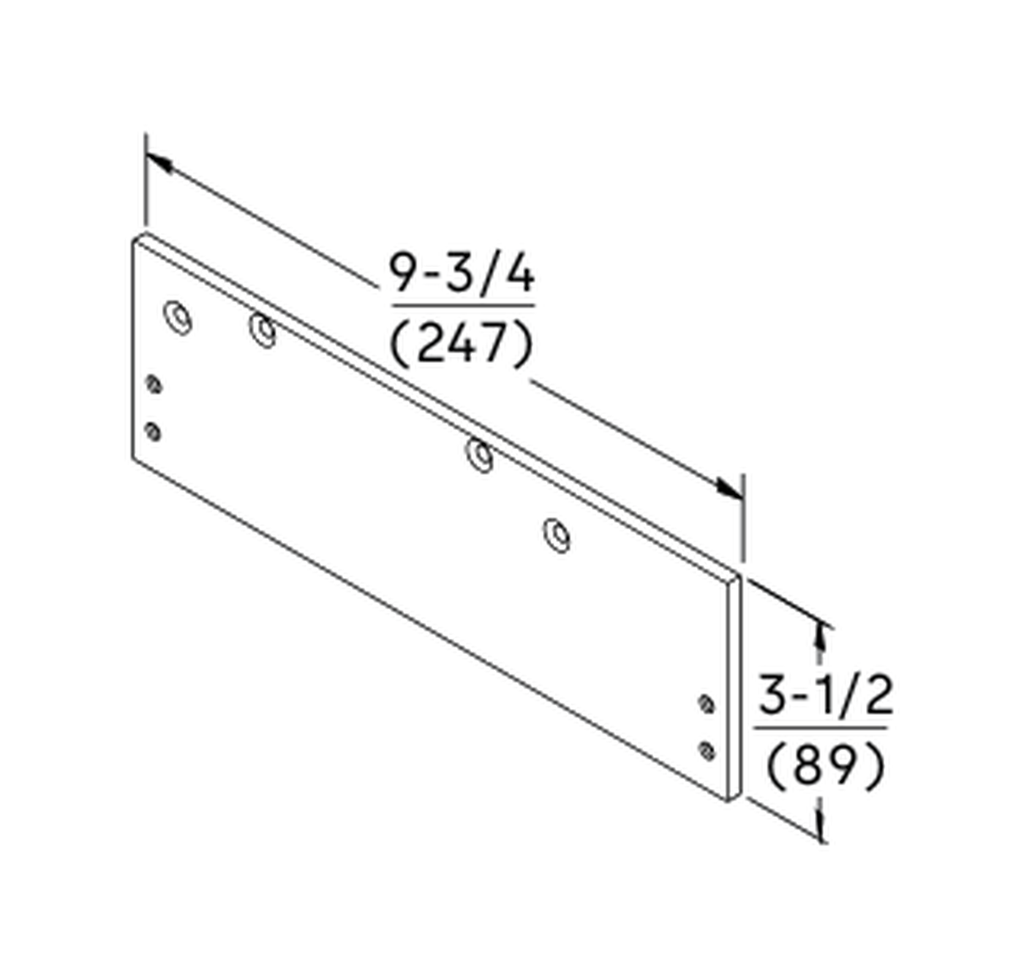

- 9-3/4 x 3-1/2 in drawing: 7400 brochure printed p.18 / glossary.
- Ceiling clearance: 1-3/4 in or more on a top-jamb mount.
- Finish on this listing: painted 689.
- This listing: does not include the closer body, arm, or cover.
Applications
Use on a Dorma 7414 or 7436 (Contur cover) when the header needs a drop plate. Do not order this plate onto an 8600 -- that is DP86 / DP86FC.
Which bracket or spacer is this?
Every row below is from the glossary plates_brackets section, Price List 38, or the 8600/7400 brochure. This listing is DP74 only.
| Plate | Printed size and use |
|---|---|
| P86 | Parallel arm bracket. Standard with NHO and plunger-HO parallel arms. |
| PD | Parallel drop bracket. NHO parallel (AR / AO8 only) to clear a surface stop/holder. |
| PFT | Parallel flush transom bracket. Use when flush transom blocks P86 or PHB. |
| NFHD | Narrow-frame HD bracket for DS/SPA when frame depth is under 4-1/2 in. |
| FTHD | Flush-transom HD bracket for DS/SPA when soffit bracket will not fit. |
| BS | Blade-stop spacer for P86, PHB, and PD on cased frames with applied blade stops. |
| BSHD | Heavy-duty blade-stop spacer for DS/SPA, used with the arm spacer. |
| BP86C | Conversion plate. Replaces a legacy DORMA 7600 footprint with 8600. |
| DP74 (this listing) | 9-3/4 x 3-1/2 in. 7400-only drop plate. Top jamb when ceiling clearance is at least 1-3/4 in. |
Technical Specifications
Facts below are from the Dorma glossary (plates_brackets, cover_codes, mounting_templates, sizes.min_door_rail) and Price List 38 accessories. This plate is not the closer. UL/cUL, ANSI/BHMA A156.4 Grade 1, and the 25-year closer warranty apply to the 7400/8600 closer body, not to the plate.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Dorma DP74 |
| Part Type | Drop plate for a 7400 Series closer |
| Size | 9-3/4 x 3-1/2 in |
| Cover | Not a cover -- accessory plate / bracket / spacer |
| Series | Dorma 8600 and 7400 (BP86/DP86 family also used on 7400) |
| Printed use | Top-jamb drop plate when ceiling clearance is 1-3/4 in or more (glossary / 7400 brochure p.18) |
| Factory templates | 08280525 (7414/7436 ARP Parallel with DP74/DP86/DP86FC) |
| Finish with BHMA code | Painted 689 |
| Factory list (PL38) | PL38 accessories: DP74 Drop plate for 7400, list $54 |
| SKU prefix | CLPDP74-* |
| Source | configs/dorma/dorma_glossary_2026.json ; PL38 accessories |
| Brand | Dorma |
| General - US Finishes | 689 - Spray Alumimun |
| Series | Dorma - 7400 Series |
| Closer Part Type | Brackets & Feet |
