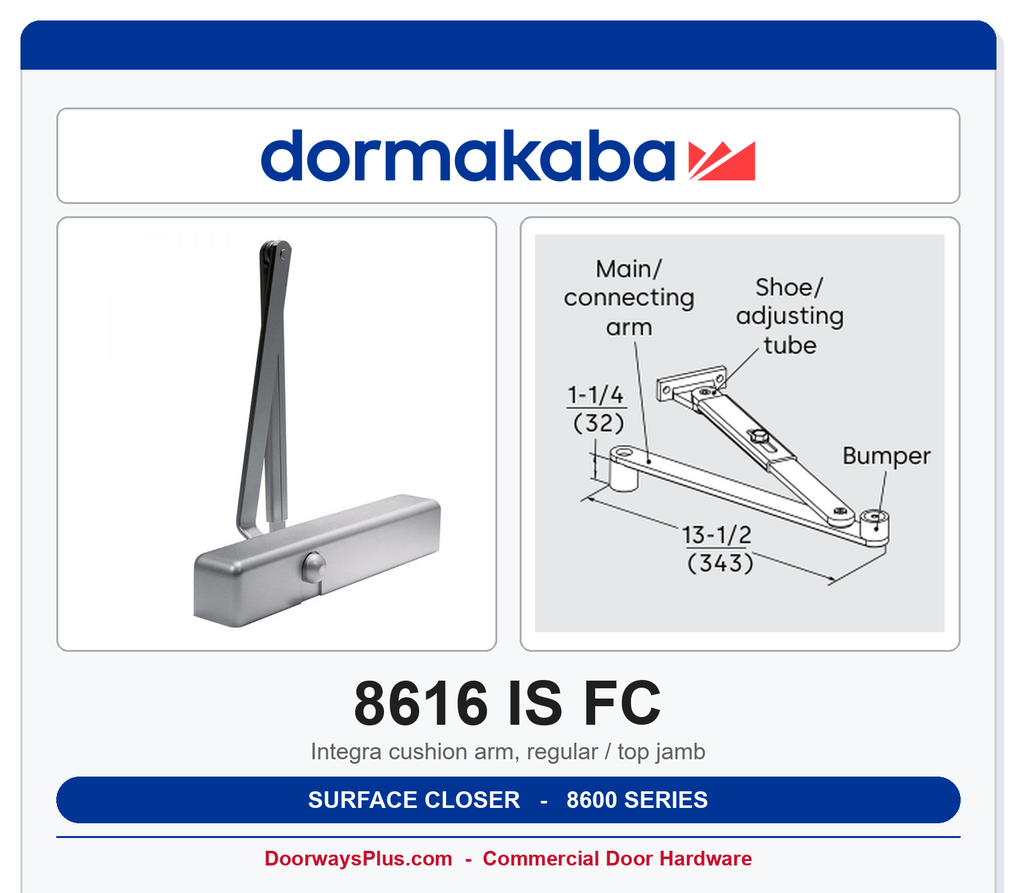

Dorma 8616 IS FC Surface Door Closer Integra Cushion Arm Regular / Top Jamb
The Dorma 8616 is the 8600 Series Grade 1 surface-applied closer. One model number covers the series; spring size is field-adjustable 1-6 and ships as size 4. This listing is the IS arm: Integra cushion arm, regular or top jamb for reveals 0 in to 3-1/2 in (not a parallel-arm listing).

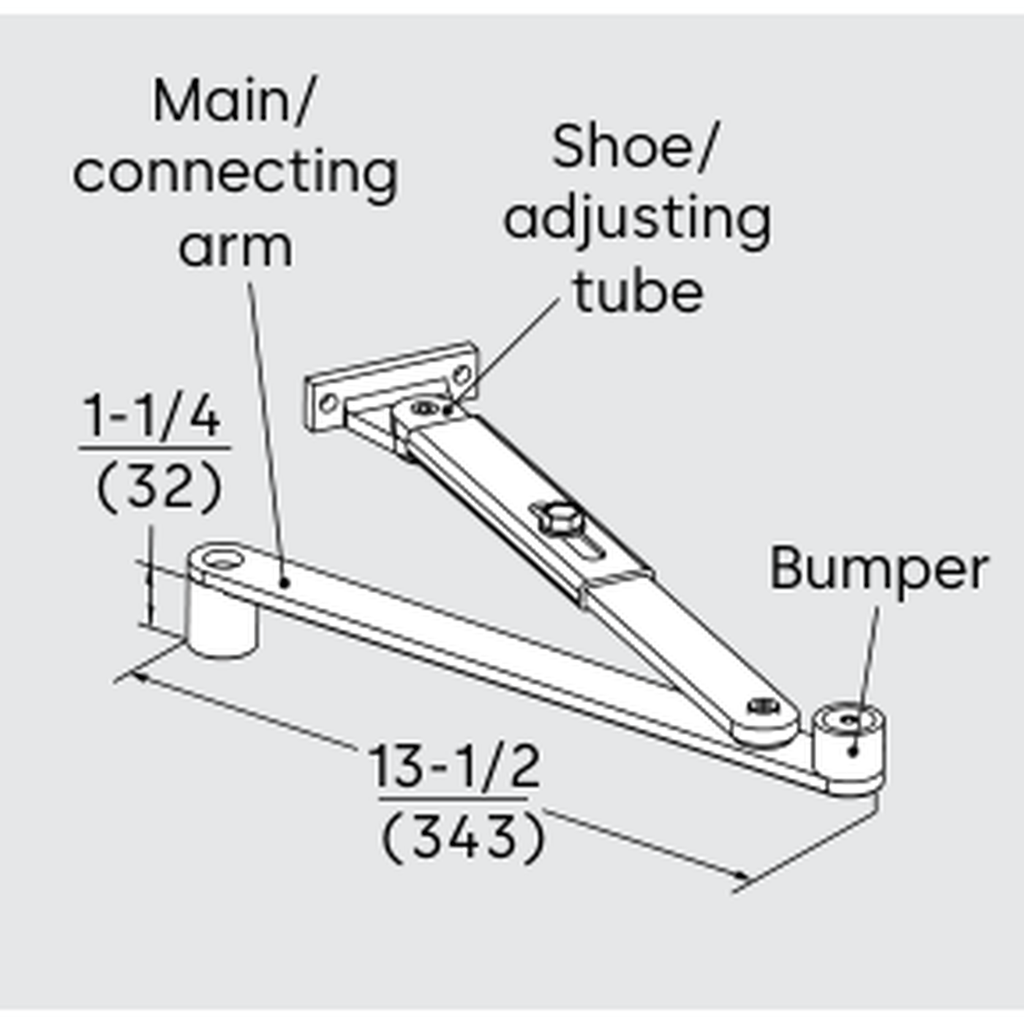

What is an IS arm?
IS is the Integra cushion arm: regular or top jamb for reveals 0 in to 3-1/2 in (glossary / PL38). It is a heavy-duty cushion stop on the pull-side arm, not a parallel door-saver and not hold-open (ISH). This Seclock SKU ships with the full plastic cover (FC).
Institutional Grade Features and Benefits
- ANSI/BHMA A156.4 Grade 1: the 8600 Series cut sheet lists Grade 1 for this surface closer.
- Adjustable backcheck: standard on the series; softens the opening if the door is thrown.
- Sweep and latch valves: two noncritical thermostatic valves hold closing speed as temperature changes. Clockwise decreases sweep/latch speed.
- Door range (as printed): exterior and interior widths to 48 in, heights to 96 in, weights to 250 lb. Field-adjustable to the ADA 5 lbf interior opening-force limit on a properly hung door.
- Mounts: this listing mounts as regular or top jamb (0 in to 3-1/2 in reveal). Maximum opening 180 degrees where the arm and reveal allow it.
- SNB1 fasteners: sex nuts and machine screws for a 1-3/4 in door are standard on 8616.
Applications
The 8600 Series is specified on hollow metal, aluminum, and wood doors in commercial construction. Ball-bearing hinges or pivots are the typical hanging hardware. Drop plates and brackets (BP / DP family) are separate closer-parts listings, not included on this page.
Technical Specifications
Listings on the series cut sheet: UL and cUL, UL10C positive pressure (UBC 7.2 1997), CSFM, and MEA. Warranty on the cut sheet is 25 years. This body does not invent a UL file number.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Dorma 8616 IS |
| Series | Dorma - 8600 Series |
| Arm | Integra cushion arm, regular or top jamb for reveals 0 in to 3-1/2 in (not a parallel-arm listing) |
| Cover | Full plastic cover (FC) |
| Spring | Adjustable 1-6 (ships size 4) |
| Closer Body Hole Pattern | 12" x 3/4" |
| Finish with BHMA code | 689 Painted Aluminum |
| Grade | ANSI/BHMA A156.4 Grade 1 |
| Listings | UL / cUL, UL10C, CSFM, MEA |
| Warranty | 25 years (series cut sheet) |
| Handing | Non-handed for regular and top jamb |
| Part Type | Surface-applied door closer |
| Brand | Dorma |
| Finish with BHMA code | 689 - Painted, Aluminum |
| Series | Dorma - 8600 Series |
| Closer Arm Type | HD Positive Stop |
| Closer Body Hole Pattern | 12" x 3/4" |
