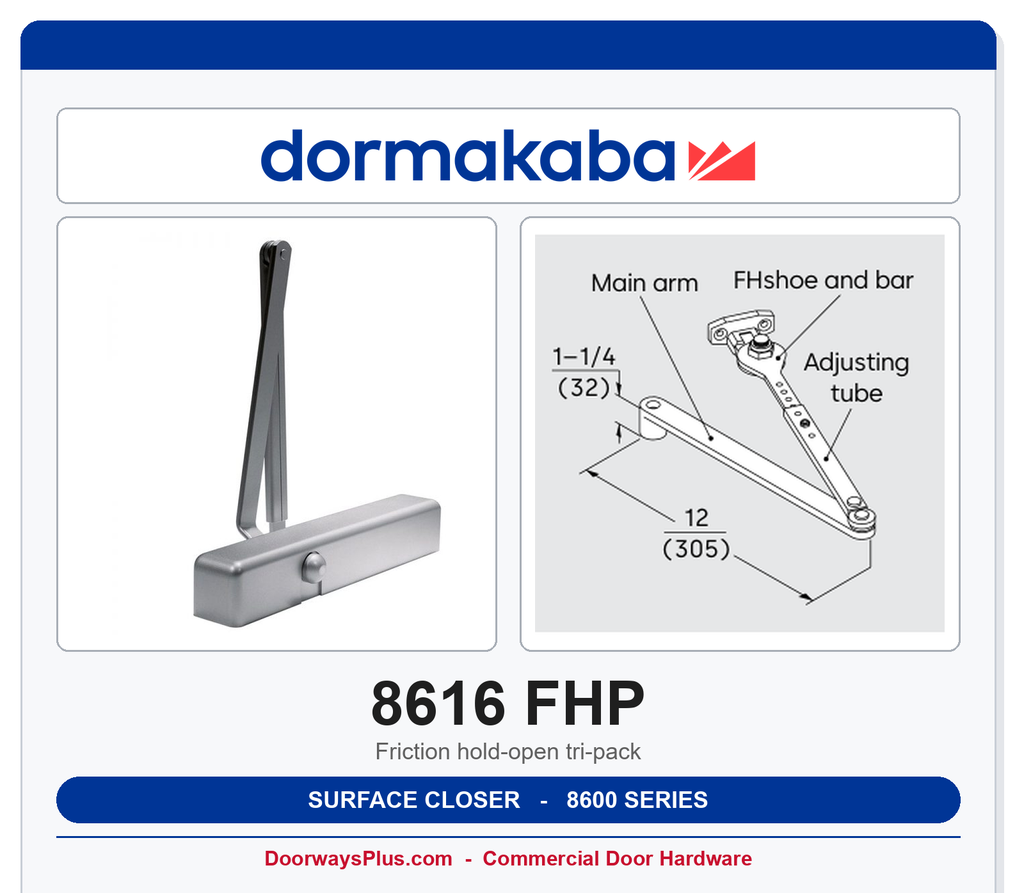

Dorma 8616 FHP Surface Door Closer Friction Hold-Open Tri-Pack
The Dorma 8616 is the 8600 Series Grade 1 surface-applied closer. One model number covers the series; spring size is field-adjustable 1-6 and ships as size 4. This listing is the FHP arm: Friction hold-open tri-pack (regular, top jamb, and parallel arm for reveals to 4 in; PHB included).
What does FHP mean on a Dorma 8616?

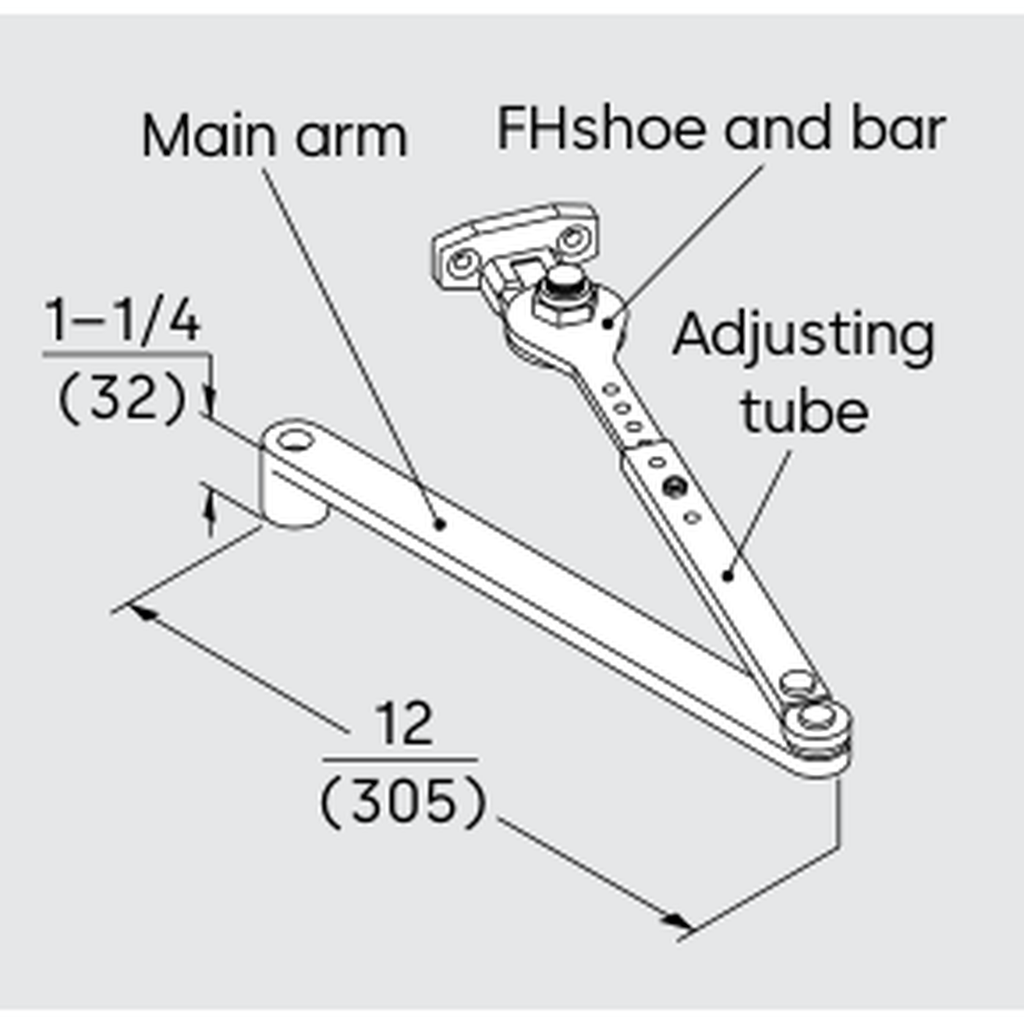

FHP is the friction hold-open tri-pack: regular, top jamb, and parallel arm for reveals to 4 in, with the PHB parallel hold-open bracket included. It is a different arm from the live AF86P non-hold-open tri-pack. Hold-open is friction, not plunger (PH / PHP).
Institutional Grade Features and Benefits
- ANSI/BHMA A156.4 Grade 1: the 8600 Series cut sheet lists Grade 1 for this surface closer.
- Adjustable backcheck: standard on the series; softens the opening if the door is thrown. The 8600 also has a backcheck positioning (POS) valve that must be ON for parallel arm.
- Sweep and latch valves: two noncritical thermostatic valves hold closing speed as temperature changes. Clockwise decreases sweep/latch speed.
- Door range (as printed): exterior and interior widths to 48 in, heights to 96 in, weights to 250 lb. Field-adjustable to the ADA 5 lbf interior opening-force limit on a properly hung door.
- Non-handed mounts: regular, top jamb, and parallel arm are non-handed. Maximum opening 180 degrees where the arm and reveal allow it.
- SNB1 fasteners: sex nuts and machine screws for a 1-3/4 in door are standard on 8616.
Applications
The 8600 Series is specified on hollow metal, aluminum, and wood doors in commercial construction. Ball-bearing hinges or pivots are the typical hanging hardware. Drop plates and brackets (BP / DP family) are separate closer-parts listings, not included on this page.
Technical Specifications
Listings on the series cut sheet: UL and cUL, UL10C positive pressure (UBC 7.2 1997), CSFM, and MEA. Warranty on the cut sheet is 25 years. This body does not invent a UL file number.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Dorma 8616 FHP |
| Series | Dorma - 8600 Series |
| Arm | Friction hold-open tri-pack (regular, top jamb, and parallel arm for reveals to 4 in; PHB included) |
| Spring | Adjustable 1-6 (ships size 4) |
| Closer Body Hole Pattern | 12" x 3/4" |
| Finish with BHMA code | 689 Painted Aluminum |
| Grade | ANSI/BHMA A156.4 Grade 1 |
| Listings | UL / cUL, UL10C, CSFM, MEA |
| Warranty | 25 years (series cut sheet) |
| Handing | Non-handed for regular, top jamb, and parallel arm |
| Part Type | Surface-applied door closer |
| Brand | Dorma |
| Finish with BHMA code | 689 - Painted, Aluminum |
| Series | Dorma - 8600 Series |
| Closer Arm Type | Hold Open - Friction |
| Closer Body Hole Pattern | 12" x 3/4" |
