Dorma 8616 AF86P FC Surface Door Closer Non-Hold Open Tri-Pack Full Cover
The Dorma 8616 is the 8600 Series Grade 1 surface-applied closer. One model number covers the series; spring size is field-adjustable 1-6 and ships as size 4. This listing is the AF86P-FC arm: Flat-form non-hold-open tri-pack (regular, top jamb, and parallel arm for reveals to 4 in; P86 included) with full plastic cover (FC).
What is the difference between COV and FC?
PL38 prices the painted 8616 with the slim plastic cover (COV). FC is the full plastic cover, a $14 list adder on the 8600 options page. This page is the Seclock SKU 8616 AF86P FC: the same AF86P tri-pack as the live slim-cover listing, with the full cover. It does not replace the slim-cover 8616 AF86P page.
Institutional Grade Features and Benefits
- ANSI/BHMA A156.4 Grade 1: the 8600 Series cut sheet lists Grade 1 for this surface closer.
- Adjustable backcheck: standard on the series; softens the opening if the door is thrown. The 8600 also has a backcheck positioning (POS) valve that must be ON for parallel arm.
- Sweep and latch valves: two noncritical thermostatic valves hold closing speed as temperature changes. Clockwise decreases sweep/latch speed.
- Door range (as printed): exterior and interior widths to 48 in, heights to 96 in, weights to 250 lb. Field-adjustable to the ADA 5 lbf interior opening-force limit on a properly hung door.
- Mounts: this listing mounts as regular, top jamb, and parallel arm. Maximum opening 180 degrees where the arm and reveal allow it.
- SNB1 fasteners: sex nuts and machine screws for a 1-3/4 in door are standard on 8616.
Applications
The 8600 Series is specified on hollow metal, aluminum, and wood doors in commercial construction. Ball-bearing hinges or pivots are the typical hanging hardware. Drop plates and brackets (BP / DP family) are separate closer-parts listings, not included on this page.
Technical Specifications
Listings on the series cut sheet: UL and cUL, UL10C positive pressure (UBC 7.2 1997), CSFM, and MEA. Warranty on the cut sheet is 25 years. This body does not invent a UL file number.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Dorma 8616 AF86P-FC |
| Series | Dorma - 8600 Series |

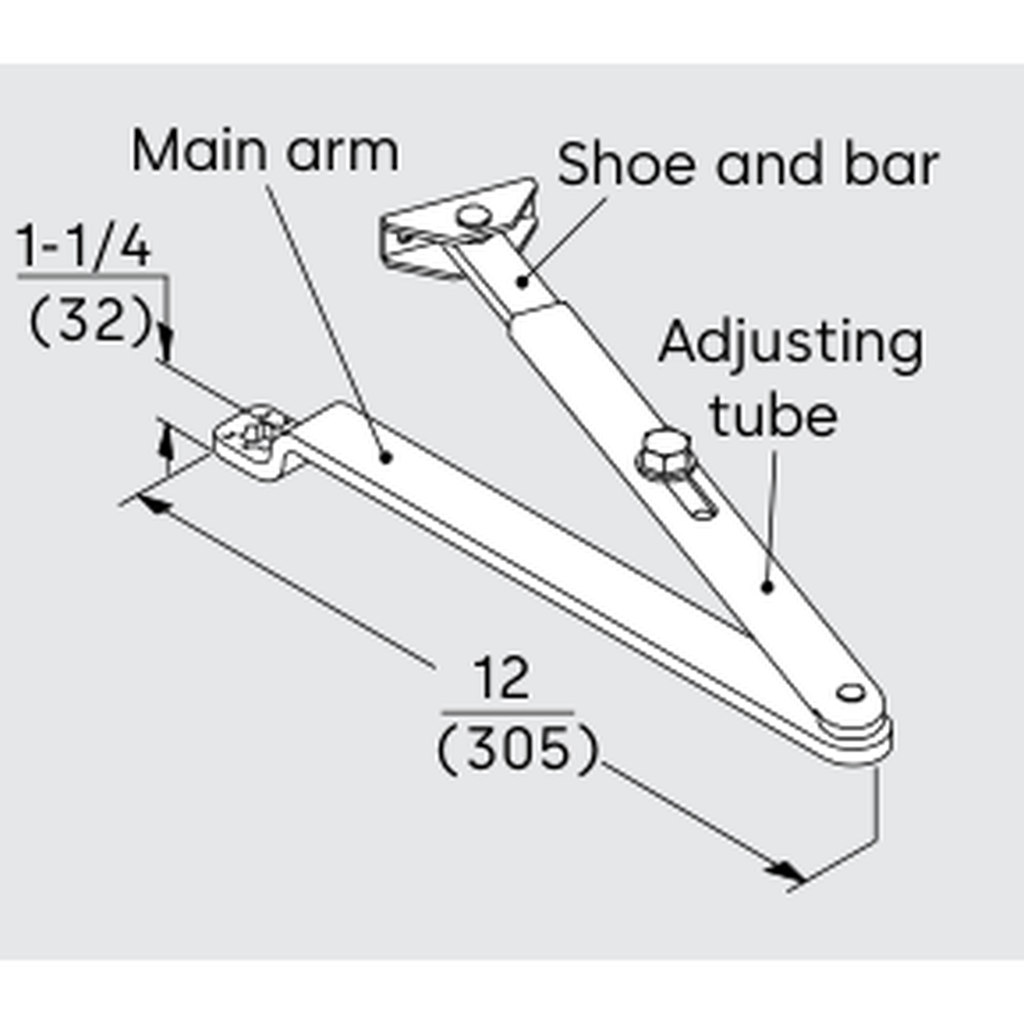

| Arm | Flat-form non-hold-open tri-pack (regular, top jamb, and parallel arm for reveals to 4 in; P86 included) with full plastic cover (FC) |
| Cover | Full plastic cover (FC) |
| Spring | Adjustable 1-6 (ships size 4) |
| Closer Body Hole Pattern | 12" x 3/4" |
| Finish with BHMA code | 689 Painted Aluminum |
| Grade | ANSI/BHMA A156.4 Grade 1 |
| Listings | UL / cUL, UL10C, CSFM, MEA |
| Warranty | 25 years (series cut sheet) |
| Handing | Non-handed for regular, top jamb, and parallel arm |
| Part Type | Surface-applied door closer |
| Brand | Dorma |
| Finish with BHMA code | 689 - Painted, Aluminum |
| Series | Dorma - 8600 Series |
| Closer Arm Type | Tri Pack - Reg/Par Arm |
| Closer Body Hole Pattern | 12" x 3/4" |
