Dorma 8616 AF86 Surface Door Closer Non-Hold Open Regular / Top Jamb | ANSI Grade 1 | UL Listed

Lead Time: 1-2 Business Days

$ 282.15 $ 282.15

  • Brand
  • Finish with BHMA code
  • Series
  • Closer Arm Type
  • Closer Body Hole Pattern

Dorma 8616 AF86 Surface Door Closer Non-Hold Open Regular / Top Jamb

Dorma 8600 Series surface door closer hole pattern

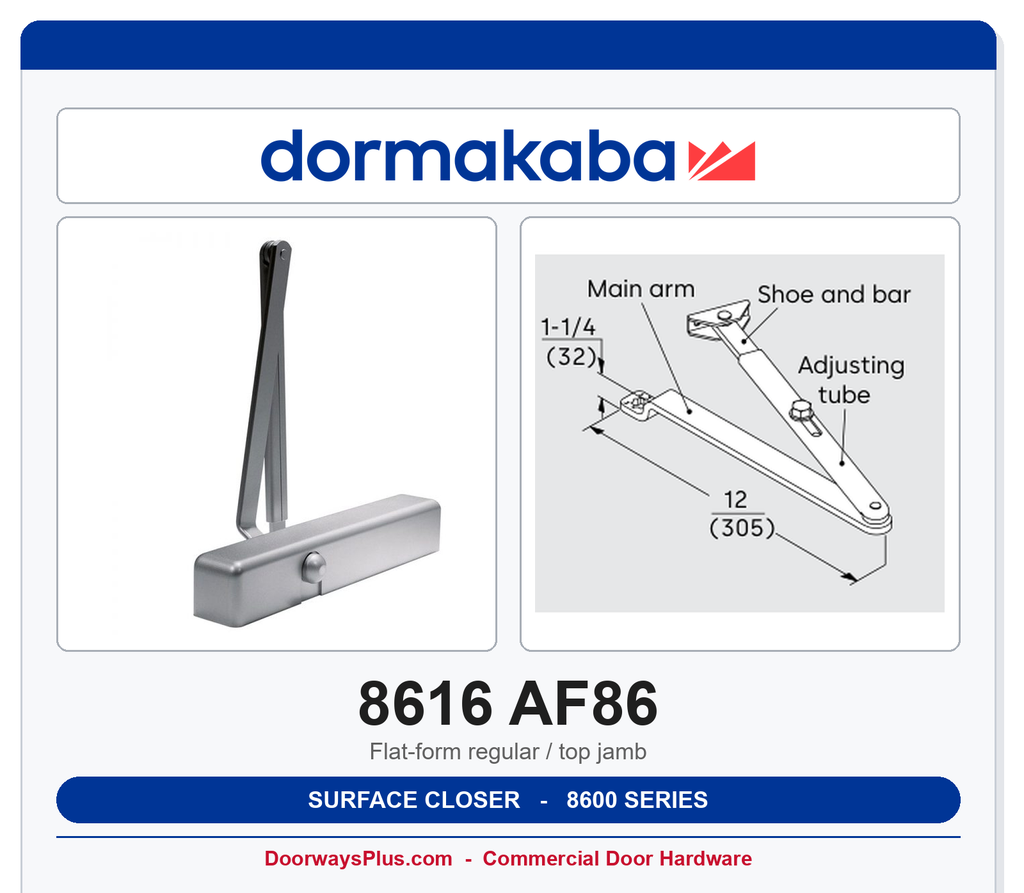

The Dorma 8616 is the 8600 Series Grade 1 surface-applied closer. One model number covers the series; spring size is field-adjustable 1-6 and ships as size 4. This listing is the AF86 arm: Flat-form non-hold-open regular or top jamb for reveals to 4 in (not a tri-pack; no parallel-arm bracket).

What is the difference between AF86 and AF86P?

Both are flat-form non-hold-open arms on the same 8616 body. AF86 is regular or top jamb for reveals to 4 in. AF86P is the tri-pack (parallel, regular, and top jamb; P86 bracket included) and is the 8616 listing already on DoorwaysPlus. Do not order AF86 when the opening needs a parallel-arm mount.

Institutional Grade Features and Benefits

  • ANSI/BHMA A156.4 Grade 1: the 8600 Series cut sheet lists Grade 1 for this surface closer.
  • Adjustable backcheck: standard on the series; softens the opening if the door is thrown.
  • Sweep and latch valves: two noncritical thermostatic valves hold closing speed as temperature changes. Clockwise decreases sweep/latch speed.
  • Door range (as printed): exterior and interior widths to 48 in, heights to 96 in, weights to 250 lb. Field-adjustable to the ADA 5 lbf interior opening-force limit on a properly hung door.
  • Non-handed mounts: regular, top jamb, and parallel arm are non-handed. Maximum opening 180 degrees where the arm and reveal allow it.
  • SNB1 fasteners: thru bolts and machine screws for a 1-3/4 in door are standard on 8616.

Applications

The 8600 Series is specified on hollow metal, aluminum, and wood doors in commercial construction. Ball-bearing hinges or pivots are the typical hanging hardware. Drop plates and brackets (BP / DP family) are separate closer-parts listings, not included on this page.

Technical Specifications

Listings on the series cut sheet: UL and cUL, UL10C positive pressure (UBC 7.2 1997), CSFM, and MEA. Warranty on the cut sheet is 25 years. This body does not invent a UL file number.

Technical Details

FeatureDetails
Model NumberDorma 8616 AF86
SeriesDorma - 8600 Series

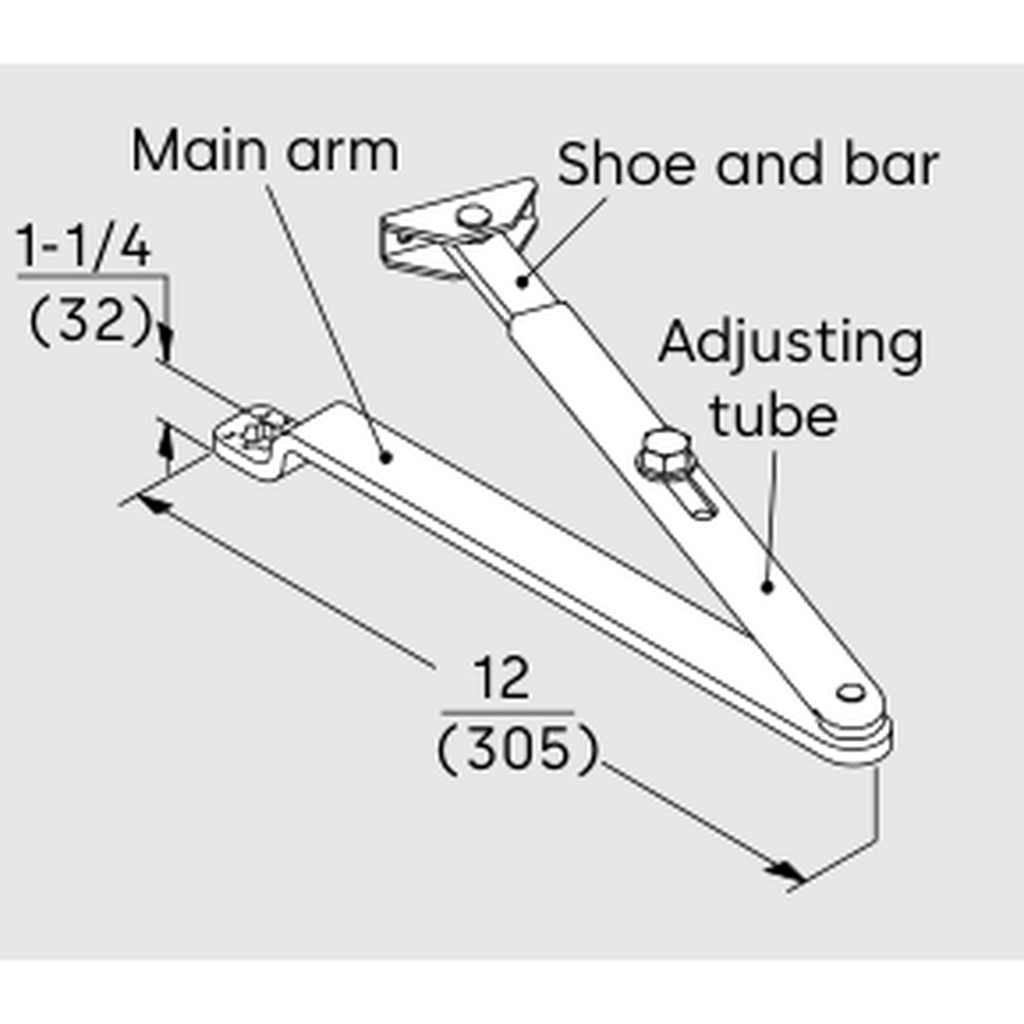

ArmFlat-form non-hold-open regular or top jamb for reveals to 4 in (not a tri-pack; no parallel-arm bracket)
SpringAdjustable 1-6 (ships size 4)
Closer Body Hole Pattern12" x 3/4"
Finish with BHMA code689 Painted Aluminum
GradeANSI/BHMA A156.4 Grade 1
ListingsUL / cUL, UL10C, CSFM, MEA
Warranty25 years (series cut sheet)
HandingNon-handed for regular, top jamb, and parallel arm
Part TypeSurface-applied door closer
Brand Dorma
Finish with BHMA code 689 - Painted, Aluminum
Series Dorma - 8600 Series
Closer Arm Type Regular Arm
Closer Body Hole Pattern 12" x 3/4"
