8200 Series Escutcheon Trim
Part of Sargent 8200 Series › Escutcheon Trim
Grade 1 mortise locks with escutcheon plates
Sargent 8200 Series Escutcheon Trim
Complete 8200 locks with a full-length plate behind the lever and the cylinder.
About this collection
This page is the escutcheon-trim slice of the 8200 Series: 2,144 published complete locks. The lock body and the functions are the same 8200 Series as on the sectional page. The notes below give the catalog plate sizes. Functions, lever designs, templates and manuals stay on the 8200 Series hub.
SARGENT and the SARGENT logo are trademarks of their respective owner.
What escutcheon trim looks like
Sargent lists these as Escutcheons: one plate behind the lever and the cylinder, instead of two small roses (7800/8200 catalog 90115 11/26, p. 9).
How tall is the plate?
LE1 is 7-5/8" (194mm) tall and 1-3/4" (45mm) wide. CE and TE are 7-7/8" (200mm) tall and 2" (51mm) wide.
Other escutcheon designs

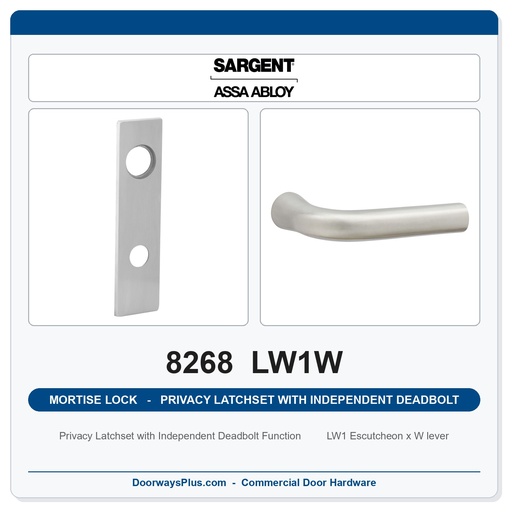

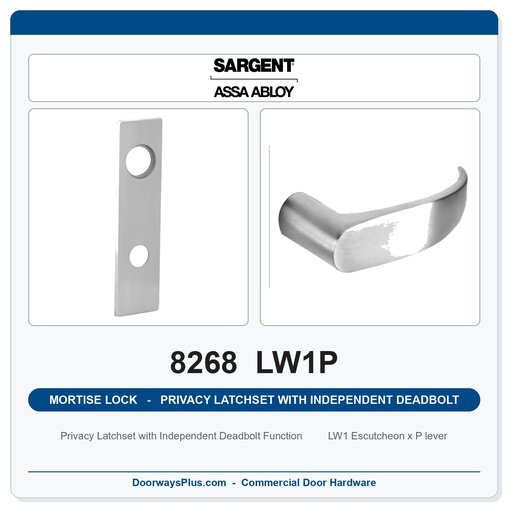

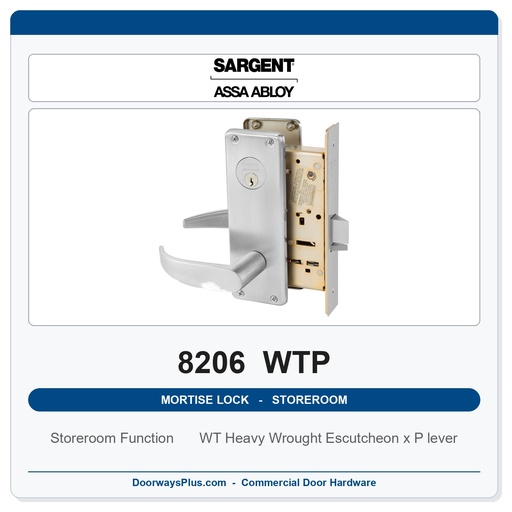

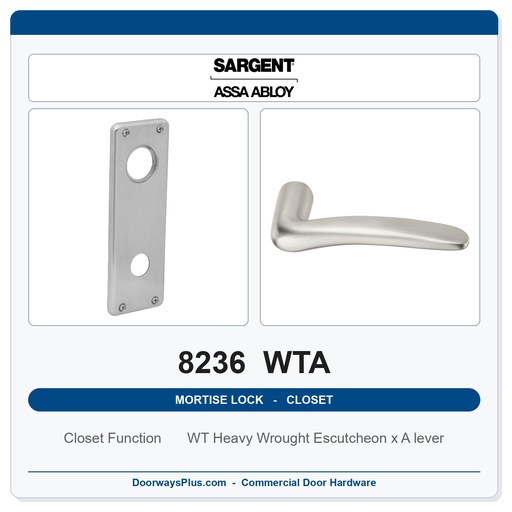

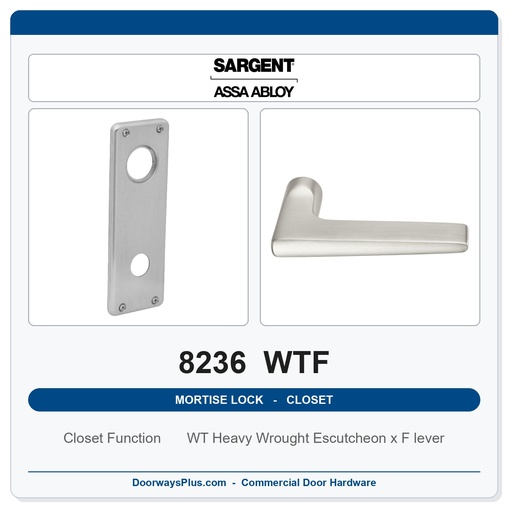

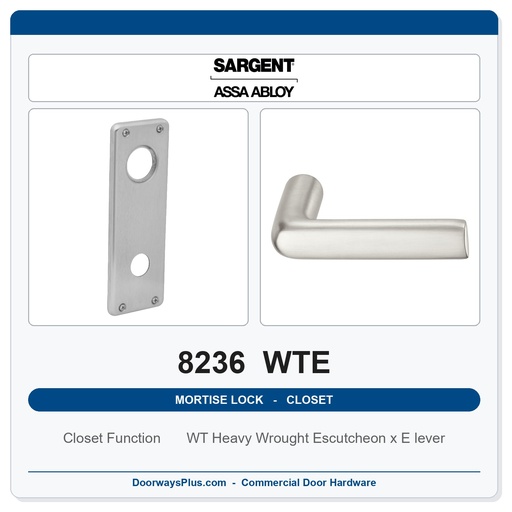

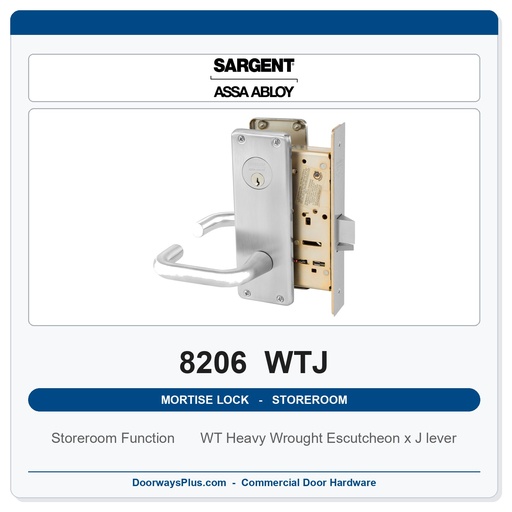

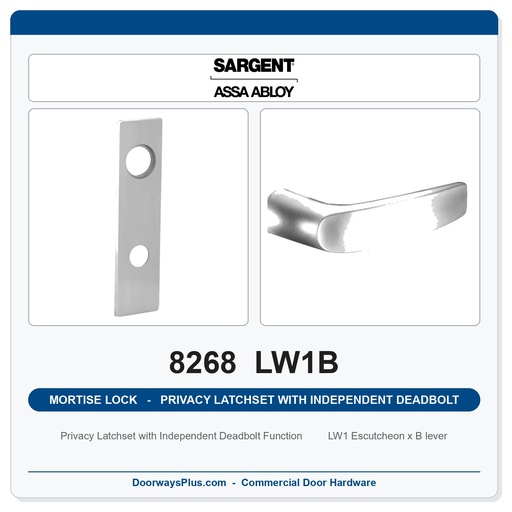

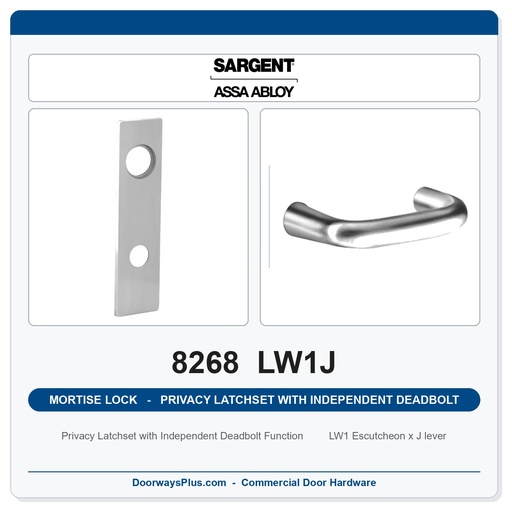

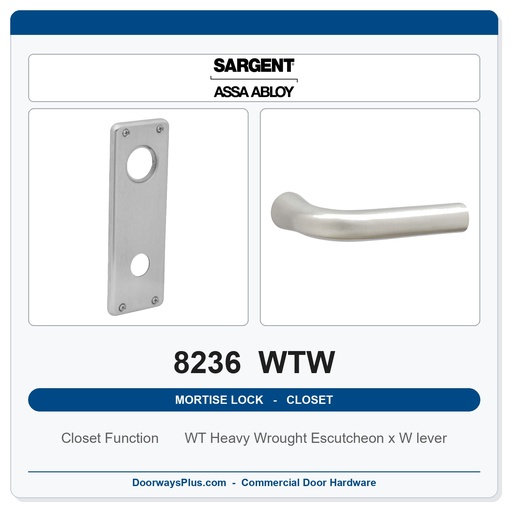

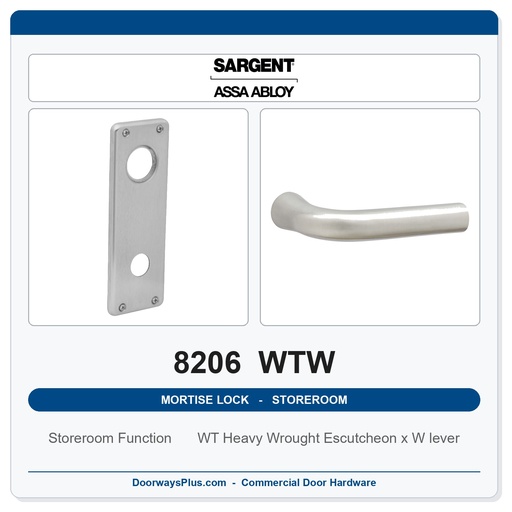

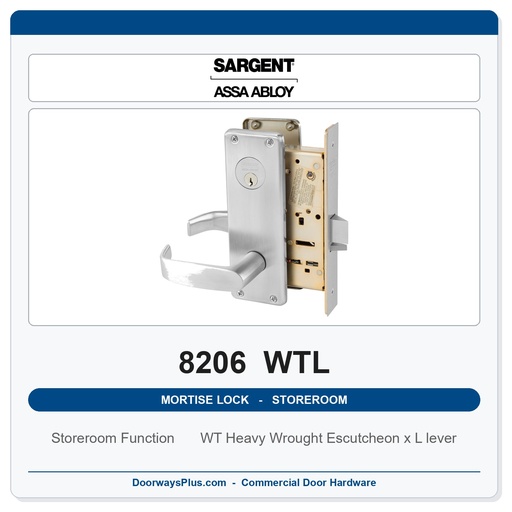

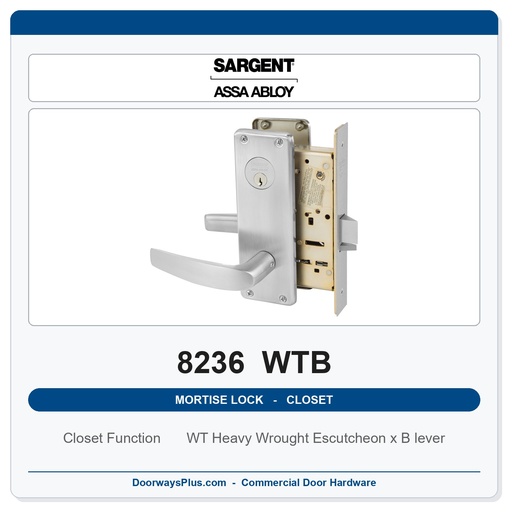

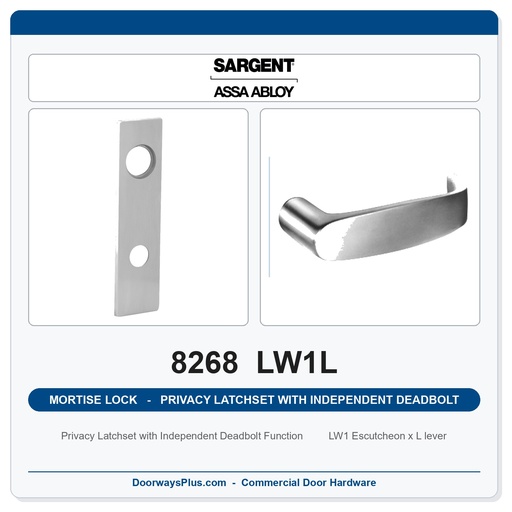

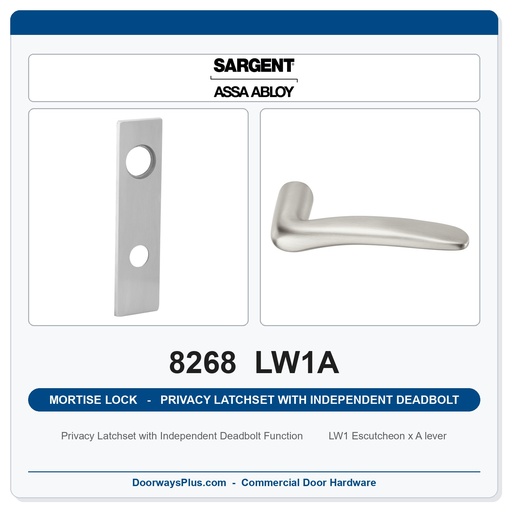

The same catalog also shows WT, LW1, LS and FE plates. Design notes and which levers fit which plates are on the 8200 Series hub, not repeated here.
Want two small roses instead of one tall plate? See Sectional Trim.
Same-day shipping on in-stock items ordered by 2 PM ET; other items follow factory lead times, typically 3-4 weeks.
The product grid is directly below. Or jump to products.
