Bobrick B-6806 Stainless Steel Grab Bar - 1-1/2" Diameter

https://doorways.cloudpepper.site/web/image/product.template/1910/image_1920?unique=9fc9dd8

Bobrick B-6806 Stainless Steel Grab Bar

46.53 46.53 USD 46.53

46.53

Not Available For Sale


  • Length
  • Brand
  • Product Type

This combination does not exist.


Share :

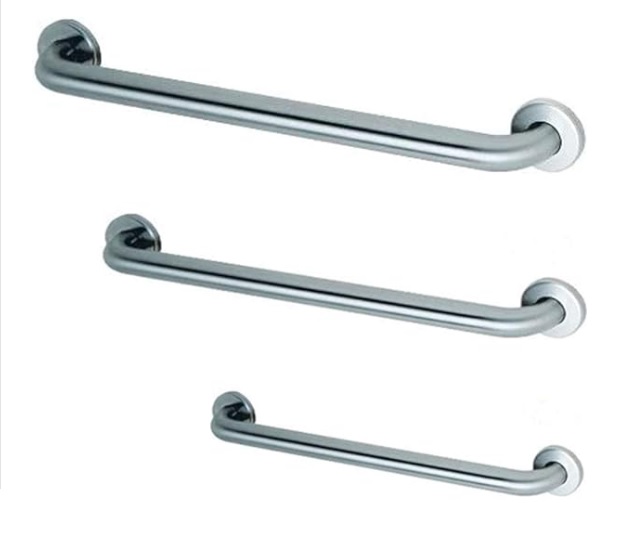

Bobrick B-6806 Stainless Steel Grab Bar

  • Satin-finish 18-gauge type 304 stainless steel tubing 1-1/2" (38mm) diameter.

  • Bar passes through flange and is heliarc welded to form single structural unit.

  • Cover snaps over mounting flange to conceal screws.

  • Concealed mounting flange 1/8" (3mm) thick stainless steel plate, 2" W x 3-1/8" H (50 x 80mm), with two screw holes for concealed anchors.

  • Cover is 22-gauge (0.8mm) stainless steel with satin-finish, 3-1/4" (85mm) dia.

  • Grab bars that provide 1-1/2" (38mm) clearance from the wall can support loads in excess of 900 pounds (408-kg) when properly installed.

  • Meets ADA Accessibility Guidelines in U.S.A.

  • All joints and supports are contour cut and welded.

  • Concealed anchors and fasteners available as an optional accessory.

  • Peened non slip gripping surface available by quote.

Fasteners are not included.

Grab Bars are measured from Center to Center. Overall length is the nominal grab bar size plus 3 1/4"






Length 12 Inch or 18 Inch or 24 Inch or 30 Inch or 36 Inch or 42 Inch or 48 Inch
Brand Bobrick
Product Type Grab Bar
Bobrick B-6806 Technical Data Sheet
Download
Bobrick Restroom Accessory Catalog
Download
