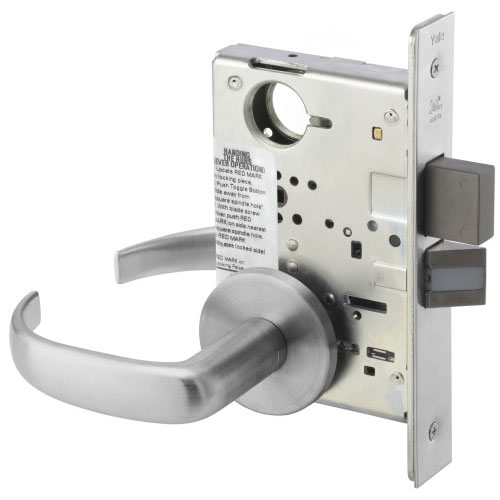

Accentra PBR 8822FL Dormitory Or Exit Mortise Lockset – Grade 1 Security
Function Info: Latchbolt retracted by knob/lever either side. Deadbolt operated by key outside and thumbturn inside. When the deadbolt is projected, outside knob/lever is automatically locked. Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.
The Accentra PBR 8822FL (formerly Yale 8800 Series) is a heavy-duty Dormitory Or Exit Lock Function mortise lockset built for commercial and institutional openings. It is certified to ANSI/BHMA A156.13 Series 1000, Grade 1 -- the highest operational and security grade the standard defines -- and carries the Pacific Beach (PBR) lever on the standard rose.
Built for openings that are opened and closed thousands of times a year, it uses a wrought steel, zinc dichromate plated case, 3/8" solid steel (heat treated) hubs and a 3/4" throw stainless steel anti-friction latchbolt. Supplied in 626 Satin Chrome, it is field reversible and ships with the door prep and installation drawings for the trim shown.
Function Details: Dormitory Or Exit Lock (ANSI/BHMA F13)
- Lever Works the Latch from Either Side: Latchbolt retracted by knob/lever either side — the lever retracts the latchbolt from either side without a key; the deadbolt is a separate mechanism and stays wherever it was last set.
- Deadbolt, Keyed Outside and Turned Inside: Deadbolt operated by key outside and thumbturn inside — the deadbolt can be thrown or withdrawn from outside with the key and from inside by hand, so the opening can be secured from whichever side the person is on.
- Projecting the Deadbolt Locks the Outside Lever: When the deadbolt is projected, outside knob/lever is automatically locked — with the deadbolt thrown the outside lever is locked, and it works again once the deadbolt is withdrawn.
- Life-Safety Free Egress -- and the Outside Trim Unlocks With It: Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever. — one motion of the inside lever pulls both bolts together, and that same motion also unlocks the outside lever, so the opening does not re-secure itself behind whoever left.
Key Performance Features
- ANSI/BHMA Grade 1 Certified: Independently tested to the highest operational and security grade the standard defines, for long service life in demanding commercial and institutional openings.
- 3-Hour Fire Rating: UL and cUL listed for use on fire-rated door assemblies, so the opening stays code compliant.
- Accessible Operation: The lever is operable without tight grasping, pinching or wrist twisting, which is what ADA 404.2.7 requires of an accessible opening.
- Field Reversible: Furnished right hand and re-handed in the field, so one lock suits either door swing without a return.
- Anti-Friction Latchbolt: A stainless steel one-piece latch that closes quietly and resists the drag that wears a latch out on a high-traffic door.
- Heavy-Duty Hubs: Heat-treated solid steel through the point that takes every turn of the lever, which is where a lighter lock fails first.
- Mechanical Warranty: Backed for the long term against defects in the mechanical lock.
Technical Specifications & Compliance
| Model Number | PBR 8822FL (Dormitory Or Exit) |
| Lever Design | Pacific Beach (PBR) |
| Certifications | ANSI/BHMA Grade 1 / UL & cUL 3-Hour Fire Rated. |
| Grade | ANSI/BHMA A156.13 Series 1000 Grade 1. |
| Fire rating | UL / cUL Listed for use on fire doors. |
| ADA | Complies with ADA requirements for accessible operation. |
| Finish | 626 Satin Chrome |
| Backset | 2-3/4" Only. |
| Armor front | 8" x 1-1/4". |
| Latchbolt | 3/4" Throw Stainless Steel Anti-Friction. |
| Hubs | 3/8" Solid Steel (Heat Treated). |
| Door thickness | 1-3/4" Standard. |
| Strike | 4-7/8" ASA Strike Standard. Supplied as the 2815 Curved Lip Strike with a 1-1/4" (32mm) lip length. |
| Handing | Field Reversible (Furnished RH). |
| Case material | Wrought Steel, Zinc Dichromate Plated. |
| Cylinder | Standard 1-1/8" Mortise Cylinder (such as the 2153) with a 1/4" trim ring, and a 2160 cam outside. |
| Keying | Level One KA or KD; Level Two MK; Level Three GM; Level Four GGM. |
| Lever Handle | Cast. |
| Warranty | 10-Year Mechanical Warranty. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or 693 - Painted, Black or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel |
| Accentra Keyways (formerly Yale) | E1R (Para) Keyway or B-SFIC or LC - Less Cylinder |
| Brand | Accentra (formally Yale Security) |
| ANSI Mortise Lock Function | F13 - Dormitory |
| Trim Design | PBR |
| Series | Accentra - 8800 Series |
