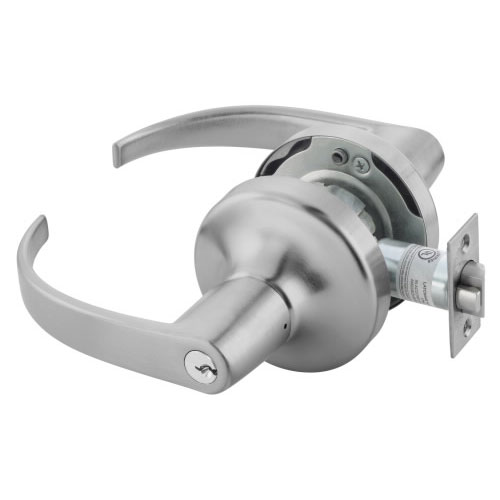

Accentra PB 4707LN Grade 1 Office Entry Function Cylindrical Lock
Function Information:
- For entrance, general home or office doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked from inside).*
- Pushing turn button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever.)
- Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position.
- Latchbolt is operated by key in outside lever or by rotating inside lever.
- Inside lever always active.
- *Lever Handles are Free Wheeling in Locked Position
- ANSI F109
The Accentra PB 4707LN Office Entry Lockset (formerly Yale) is a high-intent, heavy-duty security solution engineered for executive suites, commercial entrances, and professional buildings. As a premier model in the Series 4700LN Grade 1 lineup, this cylindrical lockset provides the highest level of structural durability and versatile locking modes. Designed to withstand the most rigorous high-traffic environments, it is the industrial standard for facilities where asset protection and user convenience must go hand-in-hand.
Featuring the timeless and ergonomic PB (Pacific Beach) lever design, this lockset is equipped with Free Wheeling technology. When the outside lever is locked, it rotates freely up and down without engaging the latch, neutralizing attempts to force the lock through excessive torque or vandalism.
Elite Security & Flexible Performance
- Office Entry Function (ANSI F109): Offers maximum control via the inside turn-button. Pushing the button locks the outside lever until released by a key or the inside handle. For permanent security, pushing and rotating the button 90° "dogs" the lock in a locked position until manually returned to vertical.
- Grade 1 Heavy-Duty Strength: Certified ANSI/BHMA A156.2, Series 4000, Grade 1, guaranteeing the longest cycle life and superior resistance to wear in the commercial market.
- Vandal-Resistant Free Wheeling: The exterior handle moves independently when the lock is engaged, protecting the internal mechanism from forced entry and mechanical fatigue.
- Fire-Rated Life Safety: UL-cUL listed for all fire doors with a rating up to 3 hours, ensuring full compliance with stringent building codes.
- Deadlocking Latchbolt: Features a 1/2" throw deadlocking latch to provide essential resistance against "shimming" and unauthorized manipulation.
- ADA & Accessibility: Fully compliant with ADA A117.1 Accessibility Codes, providing easy, barrier-free operation for all users.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | PB 4707LN |
| Function | Office / Entry (ANSI F109) |

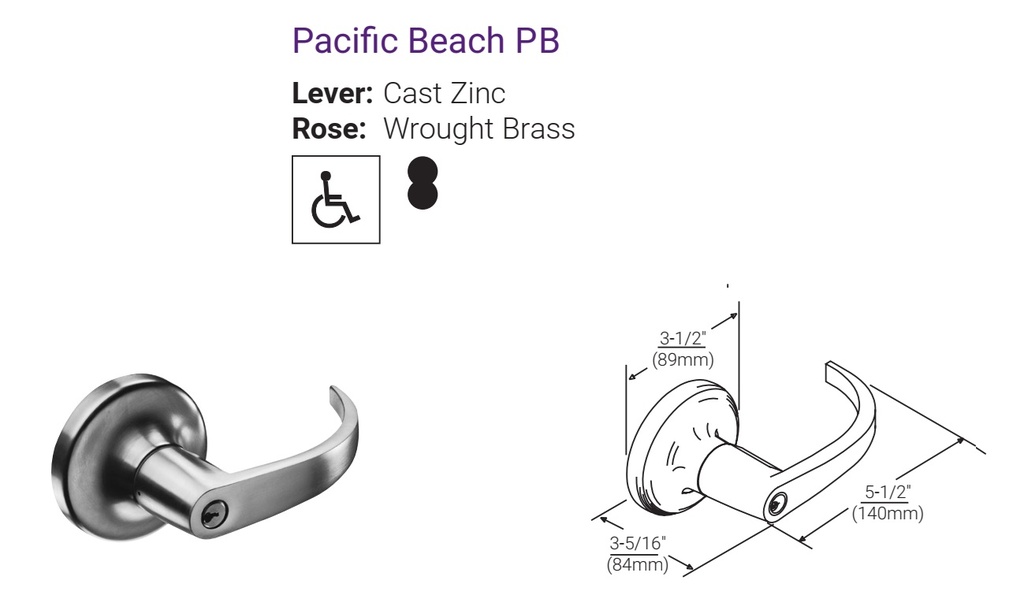

| Lever Style | Pacific Beach (PB) |
| Grade | Grade 1 Heavy-Duty |
| Door Thickness | Adjustable 1-3/4" (44mm) to 2" (51mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw Deadlocking |
| Cylinder | Brass, 6-pin, PARA (E1R) Keyway |
| Handing | Non-Handed / Field Reversible |
| Warranty | 7 Year Limited Warranty |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F81 - Office Entrance |
| Trim Design | PB - Pacific Beach |
| Series | Accentra - 4700 Series |
