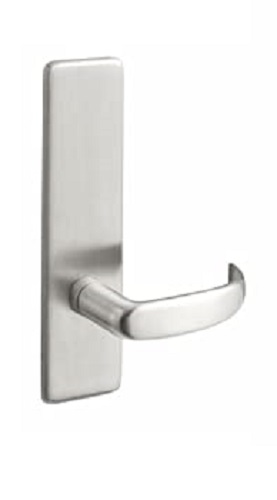

Accentra PB 428F Passage or Dummy Exit Device Trim
The Accentra PB 428F Passage or Dummy Exit Device Trim (formerly Yale) is a premium, high-traffic commercial door solution designed for openings where keyed entry is not required. This ANSI/BHMA Grade 1 certified trim is engineered for maximum durability, featuring a Free Wheeling lever mechanism. This internal clutch allows the lever to rotate freely when the door is secured, significantly reducing the risk of internal hardware damage caused by vandalism or excessive force.
Available in a professional US32D (630) Satin Stainless Steel finish and Dark Statuary Bronze (695), the 428F offers a sleek, square-profile aesthetic for wide stile and flush doors. Whether configured as a Passage (ANSI 14) function for free entry or as a Dummy trim for pull operation, this escutcheon-style hardware provides the industrial strength required for schools, hospitals, and high-end office complexes.
Performance & Security Features
- Vandal-Resistant Free Wheeling Lever: The Free Wheeling clutch allows the handle to move without engaging the latch, protecting the device from forced entry attempts and mechanical strain.
- Industrial Grade 1 Durability: Certified to meet ANSI/BHMA A156.3 standards, ensuring millions of successful cycles in the most demanding high-frequency environments.
- Modern PB (Pacific Beach) Lever Style: Features a stylish, contemporary square-profile lever that is ADA compliant and provides an ergonomic grip for all users.
- Wide Escutcheon Design: The 420F Series wide plate (2-1/2" x 9-1/2") provides a stable mounting surface and a clean, architectural appearance that covers standard door preparations.
- Through-Bolted Security: The trim is through-bolted directly to the exit device, creating a secure "sandwich" attachment that prevents the hardware from loosening or being pried off.
- Field Reversible Handing: Shipped as Right Hand Reverse (RHR), this hardware is fully field reversible, allowing for quick adjustments on-site to match any door swing.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | PB 428F |
| Function | Passage (ANSI 14) or Dummy |
| Trim Series | 420F Wide Escutcheon |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Lever Style | PB (Pacific Beach) - ADA Compliant |
| Lever Action | Free Wheeling (Clutch Mechanism) |
| Dimensions | 2-1/2" x 9-1/2" x 1/4" |
| Standard Door Thickness | 1-3/4" (44mm) |
| Compatibility | Accentra (Yale) 6100, 2100, and 1800 Series |
| Warranty | 1-Year Limited Warranty |
Installation & Compatibility
The Accentra PB 428F Trim is specifically engineered for perfect integration with Accentra (Yale) 6100, 2100, and 1800 Series Exit Devices. As a Passage function, it provides entrance by lever when the latchbolt is released, featuring no cylinder and an always-active handle.
For a standard 1-3/4" door, all necessary mounting hardware is included for a permanent, through-bolted installation. If you are installing this on a thicker door or using a shim-mounted exit device, please contact us for custom fastener information and lead times.
| Finish with BHMA code | 689 - Painted, Aluminum or 630 - US32D Satin Stainless or 695 - Painted, Stat Dark Bronze |
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 6000 Series, Accentra - 1800 Series, Accentra - 2100 Series |
| Trim Design | PB - Pacific Beach |
| Exit Device Trim Function | Dummy |
