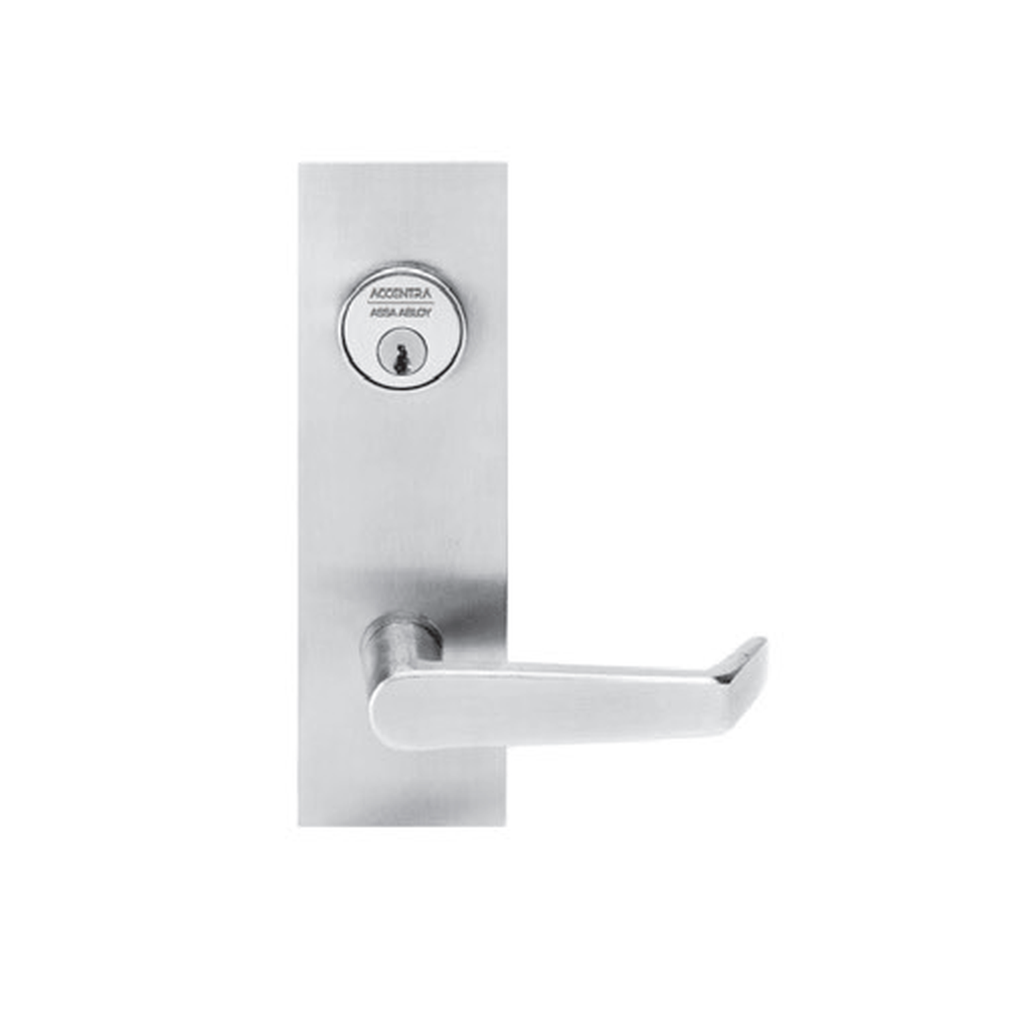

Accentra MOSL SL8830-2FL Asylum Or Institutional Mortise Lockset – Grade 1 Security

Function Info: Latchbolt retracted by key both sides. Rigid knob/lever both sides for use as pulls only. Deadlocking latchbolt.

The Accentra MOSL SL8830-2FL (formerly Yale SL8800 Series) is the heavy-duty security version of the 8800 Asylum Or Institutional Lock Function mortise lockset, built for openings where heavy abuse or vandalism is a concern. It is certified to ANSI/BHMA A156.13 Series 1000, Operational Grade 1, and the SL8800 with its security escutcheon also meets Security Grade 1. It carries the Monroe (MOSL) lever on the SL security escutcheon.

Built for openings that are opened and closed thousands of times a year, it uses a wrought steel, zinc dichromate plated case, 3/8" solid steel (heat treated) hubs and a 3/4" throw stainless steel anti-friction latchbolt. Supplied in 630 Satin Stainless Steel, it is field reversible and ships with the door prep and installation drawings for the trim shown.

The SL security escutcheon is what sets this lock apart: heavy duty escutcheon trim that is flat against the door to resist damage and vandalism; lever attached directly to escutcheon for added security; thrubolted security head screws offer added protection. The SL8800 is furnished in 630 Satin Stainless Steel only; levers are Nickel Plated to match Stainless Steel.

Function Details: Asylum Or Institutional Lock (ANSI/BHMA F30)

• Keyed From Both Sides: Latchbolt retracted by key both sides — a key retracts the latchbolt from either face.
• The Lever Does Not Turn: Rigid knob/lever both sides for use as pulls only — this lever is rigid -- a fixed handle for pushing and pulling the door; it does not rotate and it operates nothing.
• Anti-Shim Protection: Deadlocking latchbolt — a small plunger beside the latchbolt rides the strike when the door closes; with it depressed the latchbolt cannot be shimmed back with a card.

Key Performance Features

• ANSI/BHMA Grade 1 Certified: Independently tested to the highest operational and security grade the standard defines, for long service life in demanding commercial and institutional openings.
• 3-Hour Fire Rating: UL and cUL listed for use on fire-rated door assemblies, so the opening stays code compliant.
• Accessible Operation: The lever is operable without tight grasping, pinching or wrist twisting, which is what ADA 404.2.7 requires of an accessible opening.
• Field Reversible: Furnished right hand and re-handed in the field, so one lock suits either door swing without a return.
• Anti-Friction Latchbolt: A stainless steel one-piece latch that closes quietly and resists the drag that wears a latch out on a high-traffic door.
• Heavy-Duty Hubs: Heat-treated solid steel through the point that takes every turn of the lever, which is where a lighter lock fails first.
• Mechanical Warranty: Backed for the long term against defects in the mechanical lock.

Technical Specifications & Compliance
